Xintex 2 Zone Fire Detection & Alarm Panel
2 Zone Fire Detection & Alarm Panel
Fireboy-Xintex FR Series Fire Detection Systems provide intelligent networked solutions with easy installation. No extensive set up or programming required.
An excellent fit for personal yachts or cabin cruisers.
Each system consists of a monitor panel and up to 14 smoke or heat detectors for a 12VDC system, or 8 detectors on a 24VDC system, and/or rate of rise heat detectors connected to each zone (sold separately.)

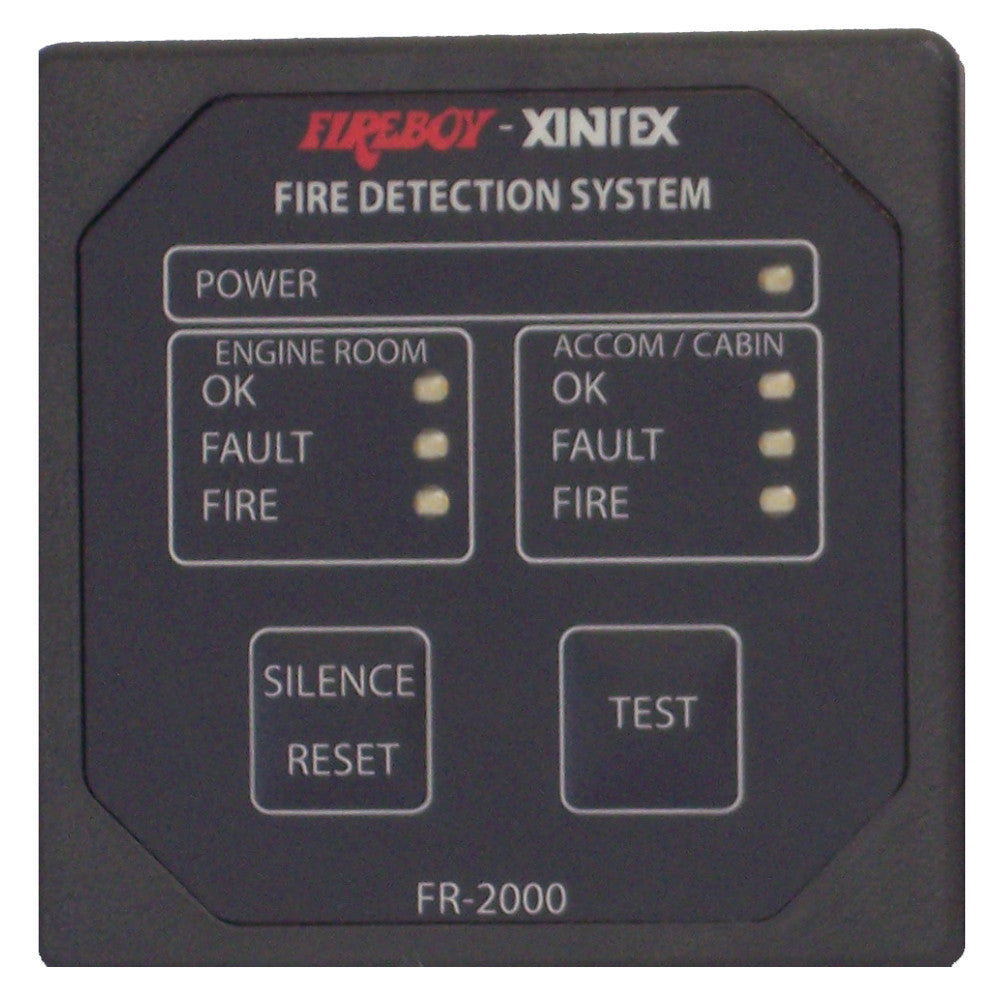

The stylish 2-5/8" square membrane style display panel features colored LED's indicating Power, Status: Okay, Fault, or Fire.
Provides full indication from one central location on your boat.
- Visual indication of a fire or fault
- Audible indication of a fire or fault
- Waterproof display
- Includes 85dB horn
- Housing is 2 1/8" diameter, and may be installed inside wall or at helm station
- Supply Voltage: 10-30 VDC (auto sensing)
- Voltage and EMI protected
- Reverse polarity protected
- Blower Relay: No
- Fume Type: Smoke
- Generator Shutdown: No
- Sensors Included: 85db horn
- Voltage - Input Range (Volts): 10-30v
- Box Dimensions: 4"H x 7"W x 11"L WT: 0.4 lbs
- UPC: 619749115229
Quick Guide (pdf)
