Shakespeare 5401-XT Galaxy 4' Antenna - Reel Draggin' Tackle

Shakespeare 5401-XT Galaxy 4' Antenna

  • $12399
  • Save $61

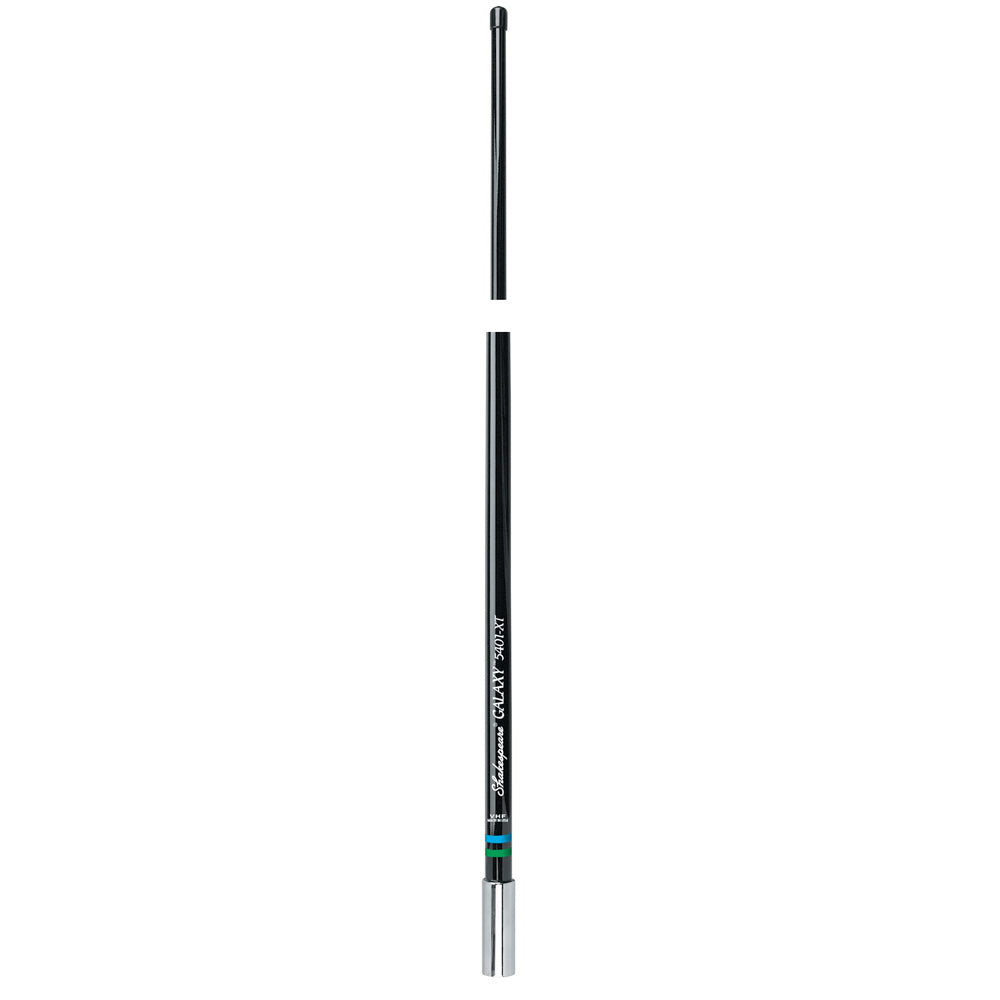

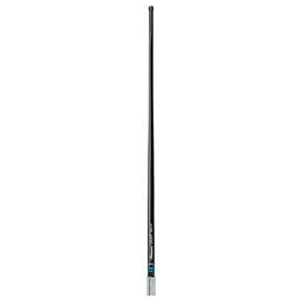

Shakespeare Galaxy Style 5401-XT LITTLE GIANT™
4' VHF 3dB Gain
Center-fed 1/2 wave coaxial sleeve

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

  • Brass and copper elements for maximum range
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years


Technical Specifications:


Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Gain: 3 dB
Max Input (Watts): 50 watts
Height (feet): 4

Specifications:

  • Antenna Band: VHF
  • Cable Length (Feet): 20'
  • Cable Type: RG-8X
  • Color: Black
  • Construction: Fiberglass
  • DB Gain (dB): 3 dB
  • Ferrule Type: Stainless Steel
  • Length (Inches): 4'
  • Box Dimensions: 3"H x 3"W x 55"L WT: 3.1 lbs
  • UPC: 719441100612

Quick Guide (pdf)
