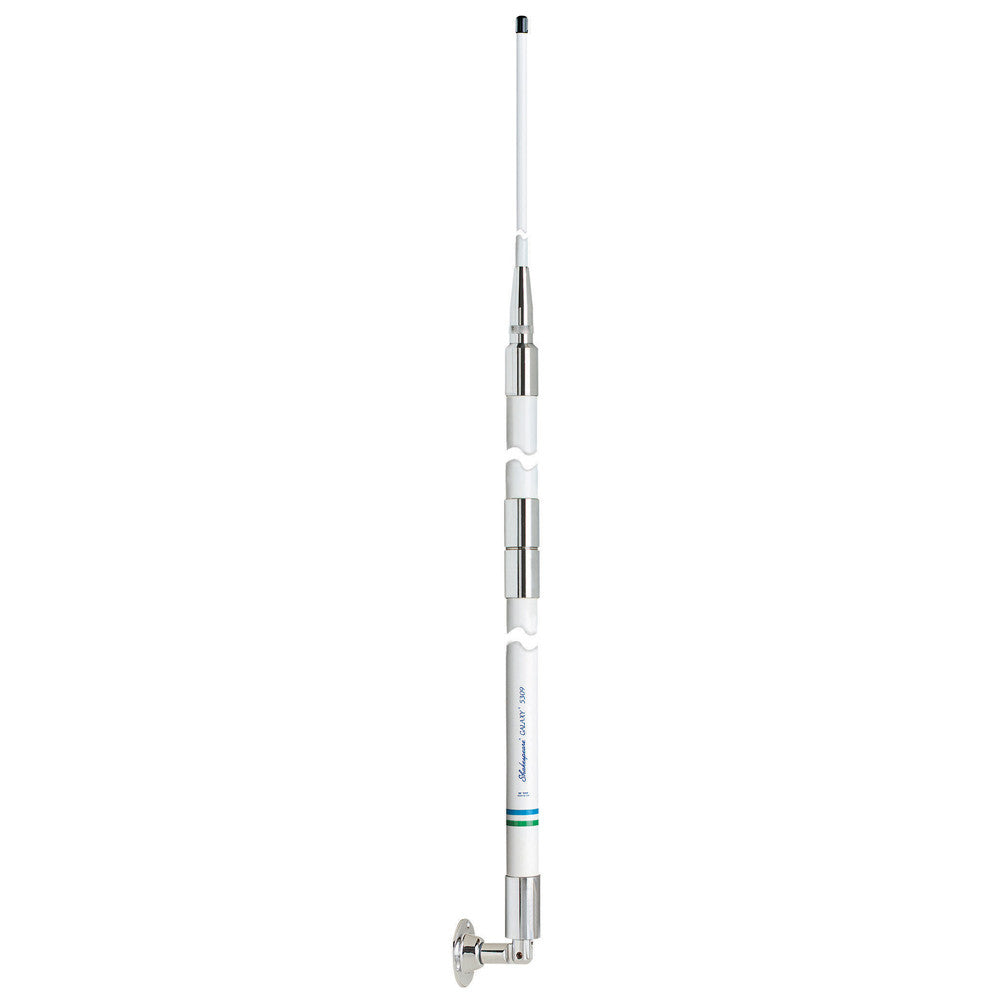

Shakespeare 5309-R 23' Galaxy VHF Antenna - Reel Draggin' Tackle

Shakespeare 5309-R 23' Galaxy VHF Antenna

  • $44299
  • Save $221


THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Shakespeare Galaxy 5309-R
23' VHF 9dB Gain
Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation

This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.

  • Brass and copper elements
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
  • Two sections: Base 172", Tip 105"
  • Twin to: Galaxy Style 5310-A HF/SSB
  • Shakespeare Limited Warranty: 5 years


Technical Specifications:


Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Gain: 9 dB
Max Input (Watts): 150 watts
DC Ground: NO
Height (feet): 23'
Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Cable Length (Feet): 20'
  • Cable Type: RG-8X
  • Color: White
  • Construction: Fiberglass
  • DB Gain (dB): 9 dB
  • Ferrule Type: Stainless Steel
  • Length (Inches): 23'
  • Box Dimensions: 5"H x 5"W x 147"L WT: 15.8 lbs
  • UPC: 719441200121

Quick Guide (pdf)
