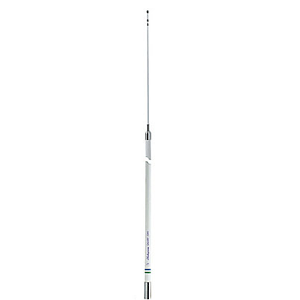

Shakespeare 5230 14' VHF Antenna

  • $30299
  • Save $295


Shakespeare Galaxy 5230
14' VHF 8dB Gain
5/8 wave over 1/2 wave dipole

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20 feet of RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
  • Two sections: Base 94", Tip 74" - UPS shippable
  • Shakespeare Limited Warranty: 5 years


Technical Specifications:


Frequency: VHF Marine Band
Bandwidth: 3 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Impedance: 50 ohms
Gain: 8 dB
Max Input (Watts): 200 watts
DC Ground: YES
Height (feet): 14
Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Cable Length (Feet): 20'
  • Cable Type: RG-8X
  • Color: White
  • Construction: Fiberglass
  • DB Gain (dB): 8 dB
  • Ferrule Type: Stainless Steel
  • Length (Inches): 14'
  • Box Dimensions: 3"H x 3"W x 96"L WT: 11 lbs
  • UPC: 719441200084

Quick Guide (pdf)
