SC103 Radar Pole Mount - 6'

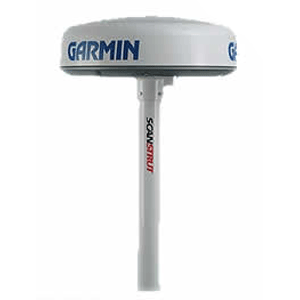

Totally universal, the Scanstrut SC103 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

  • Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18"), NavNet (24"), SC33 Sat Compass radars
  • Glomex - Pandora v8001, RHEA V8100, Urania V9331, V9000 and V9001 series radars
  • Humminbird - AS 21RD4KW radar
  • Intellian - FB150 in i2, FB250 in i2, FB250R in i2, i1 radars
  • Interphase - Mini RE-1, RE-8, RE-9 radars
  • JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000,  JMA 2343 / 5104 [Radome: NKE-2042] radars
  • Koden - 2kW 12", 4kW [RB715A] radar
  • KVH - TracVision M1, TracVision TV1 radar
  • Lorenz - Lorenz 2kW
  • Lowrance - LRA-1800 / RB714A / DX42, LRA-2400 HD radars
  • Majestic - SATMAR32, SATMAR32D, SATMAR37D
  • Navman - 8000 Series [8084/8120] 18", 8000 Series [8084/8120] 24" radars
  • Nobeltec - 2kW (20"), 4kW [IR2-4D 25" 4Kw] radars
  • Northstar - M series/8000i (18"), M series/8000i (24") radars
  • Raymarine -  33STV radar
  • Seiwa - SWR-1, SWR-8, SWR-9 radars
  • Simrad - GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
  • Sitex - MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066 radars
  • Techmarine - T-72.01, T-72.02, T-72.04 radars

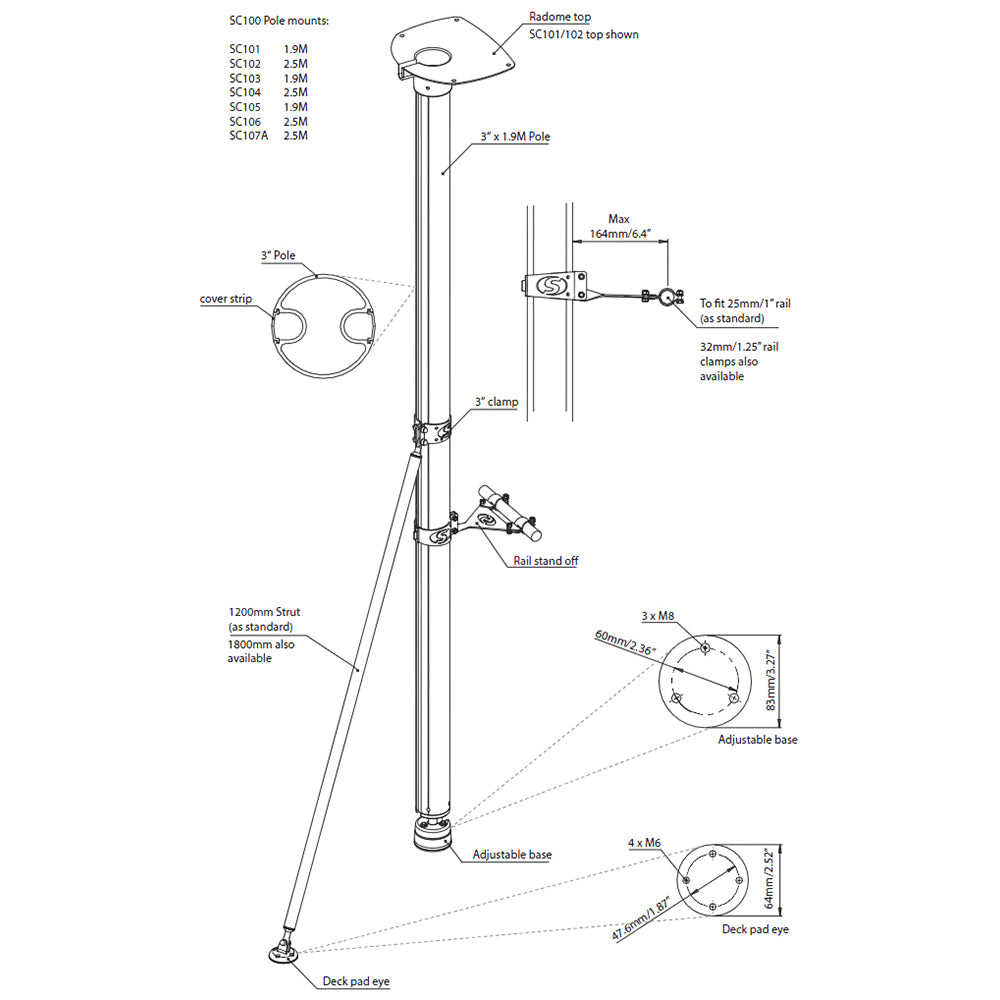

Features:

  • Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
  • Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
  • Supplied with two support modules providing maximum fore / aft and sideways bracing
  • Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

  • Radar Type - Dome
  • Material - Aluminium
  • Height - 6.4" (1.9M)
  • Mounting Type - Pole Mount

In the Box:

  • Pole mount
  • Top plate
  • Deck strut
  • Mounting hardware
  • Installation manual

*Sold as an Individual



Specifications:

  • Type: Pole Mount
  • Construction: Aluminum
  • Height: 6

Quick Guide (pdf)
Brochure (pdf)
