Scanstrut APT6002 Aluminum PowerTower Open Array Radar Mount - 6" Aft Leaning

APT6002 Aluminum PowerTower® Open Array Radar Mount - 6" Aft Leaning

Scanstrut Aluminium PowerTower® has been designed and engineered to install your Open Array on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

Compatible with:

• Garmin - GMR Fantom 254, 256, 54, 4, 6 radars
• Humminbird - RH 44 radar
• JRC - JMA 2343 / 5104 (Radome: NKE-2042) radar
• Koden - 12kW [RB717A], 25kW [RB717A], 4kW [ RB716A], 6kW [ RB716A], 6kW [RB717A] radars
• Lowrance - LRA 4000, 5000 radars
• Navman - 8000 Series (8084/8120) 4' radars
• Nobeltec - 4kW / 6kW radars
• Northstar - M series/8000i (4' and 6') radars
• Seiwa - SWR-10 (3.5' and 4.5') radars
• Simrad -GB40 / NX40/45 / NSE8/12, DX64S radars
• Sitex - MDS -10 (4' and 5'), RADARpc - 3.5 or 4.5 radars
• Techmarine - T-74.05 and T-74.06 radars

Features:

• Designed to fit the most up to date open array radars from Garmin, Raymarine, Simrad, and Furuno
• Pre-drilled mounting holes allow the open array to fasten straight to the PowerTower®
• Constructed from the best marine-grade aluminum
• Paint finishes comply with our unique 4 step marine paint system

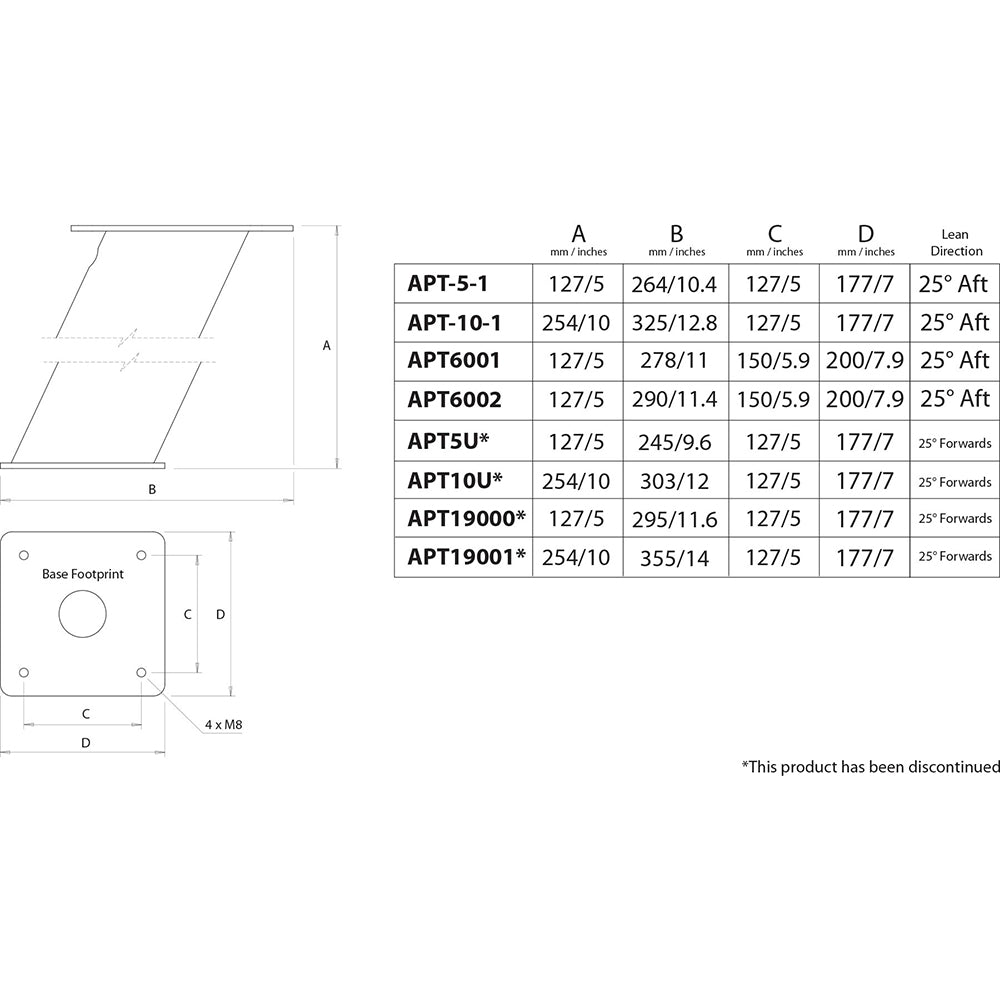

Technical Specifications:

• Radar Type - Open Array
• Material - Aluminum
• Height - 6.9" (158mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Powder Coated Aluminum
• Type: Aft Leaning Mount
• Height: 6.93
• Box Dimensions: 8"H x 12"W x 12"L WT: 6.8 lbs
• UPC: 5060114790391
