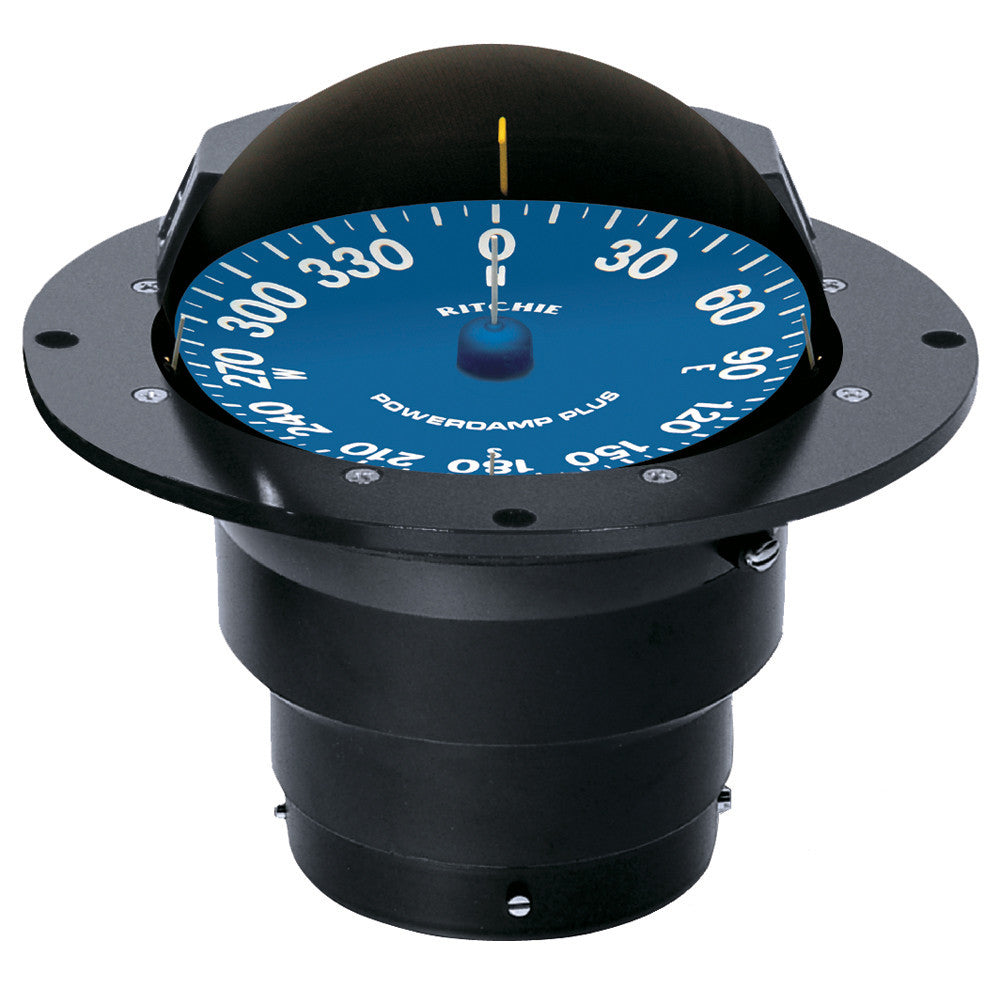

Ritchie SS-5000 SuperSport Compass - Flush Mount - Black
Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.
- 5" PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals

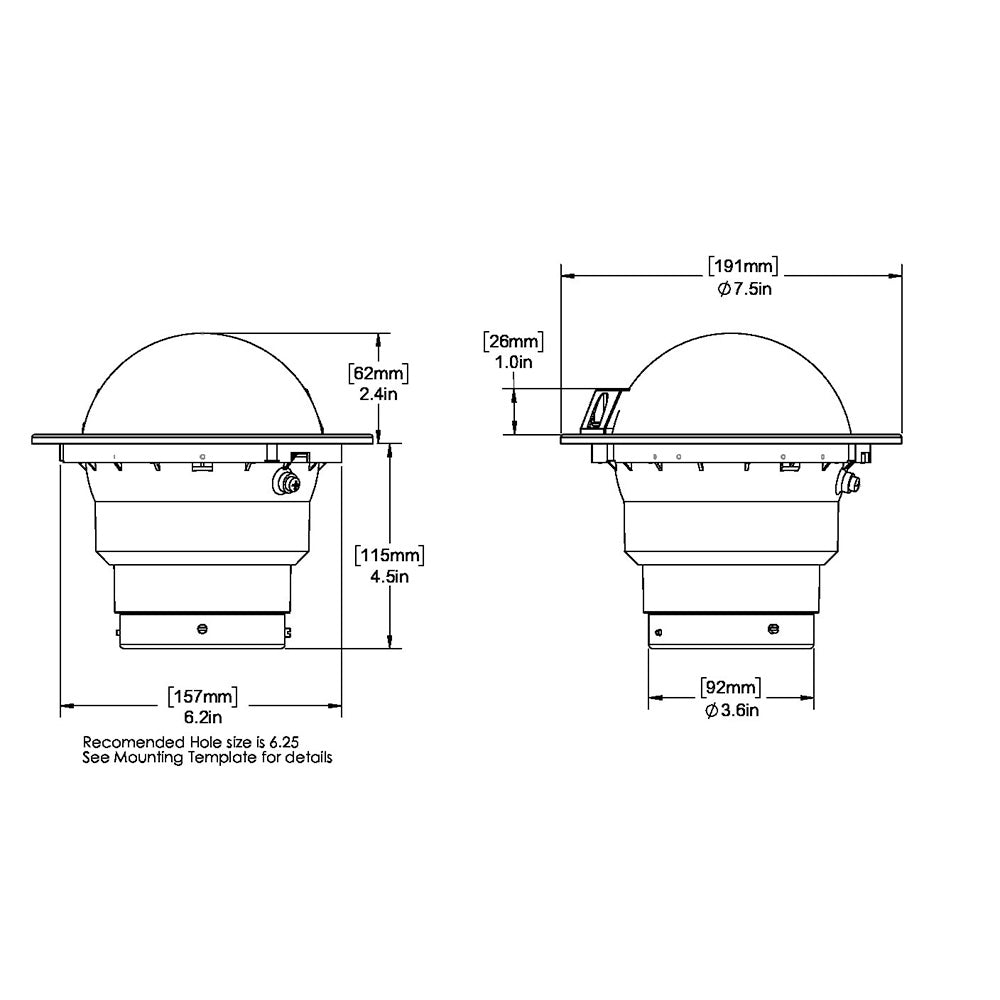

- Easily Installed, Fits 6-1/4" (15.88cm) Mounting Hole. (NOTE: Be sure you print the template Actual size).
- Built-in Compensators to Easily Adjust for deviation
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- 12V Green LED lighting Standard
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 5lbs 12oz (2.6kg)
NOTES: 12 volt lighting standard - 24 & 32 volt lighting options are available.
SS-5000s built prior to 1992 may have used different replacement lighting. See service manual pages 7-32 & 7-33 or contact our Service Department
- Backlight: Yes
- Lubber Lines: Yes
- Mounting Style: Flush
- Box Dimensions: 9"H x 9"W x 10"L WT: 5.7 lbs
- UPC: 010342050410
Owner's Manual (pdf)
