Ritchie SR-2 Venture Sail Boat Compass w/Clinometer - Bulkhead Mount - Black - Reel Draggin' Tackle

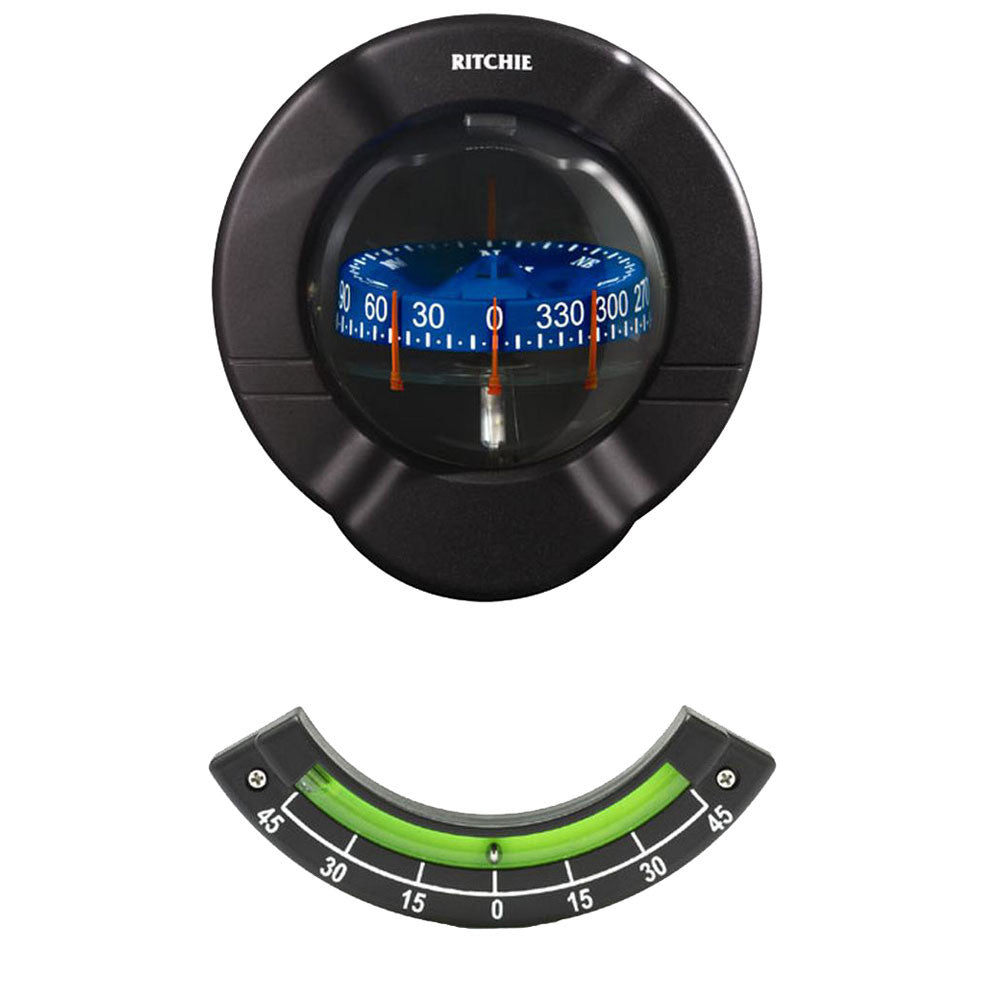

Ritchie SR-2 Venture Sail Boat Compass w/Clinometer - Bulkhead Mount - Black

  • $21799
  • Save $80


Venture Bulkhead Combidial Compass

TheVenture SR-2 is designed primarily for sailboats 16' (4.88M) to 36' (10.68M) in length.

Venture Bulkhead Compass Features:

  • 3-3/4" CombiDial

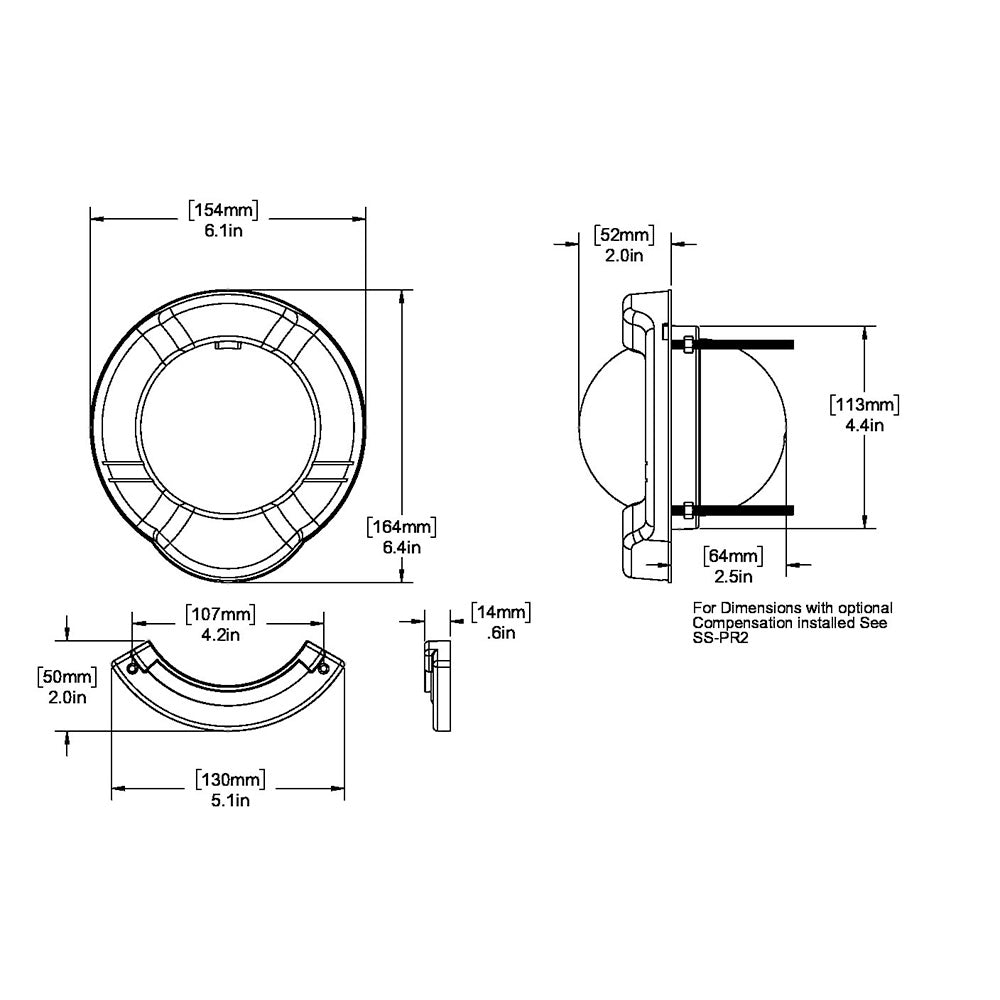

  • 4-5/8" (118mm) to 4-13/16" (122mm) mounting hole
  • Blue LED Night Lighting
  • Adapter plate (BK-0034) available to retrofit existing HV-76 and HV-77 installations
  • Vertical Mounting Angle Through 40 Degrees
  • Clinometer (INC-45) included
  • Steady Quick Lock-On Performance
  • Exclusive 5-Year Ritchie Warranty
  • Protective Front & Back Covers are Included
  • SR-CM2 Compensator module is sold separately
  • Protective Cover: Included: BK-0019 ASY (Front); BK-0020 (Back)


Wheelmark Certified: Yes

Approx. Shipping Weight: 2lb (.91kg)

Specifications:

  • Read: Both
  • Mounting Style: Bulkhead
  • Backlight: Yes
  • Lubber Lines: Yes
  • Box Dimensions: 7"H x 8"W x 8"L WT: 2.5 lbs
  • UPC: 010342110008

Quick Guide (pdf)
Owner's Manual (pdf)
