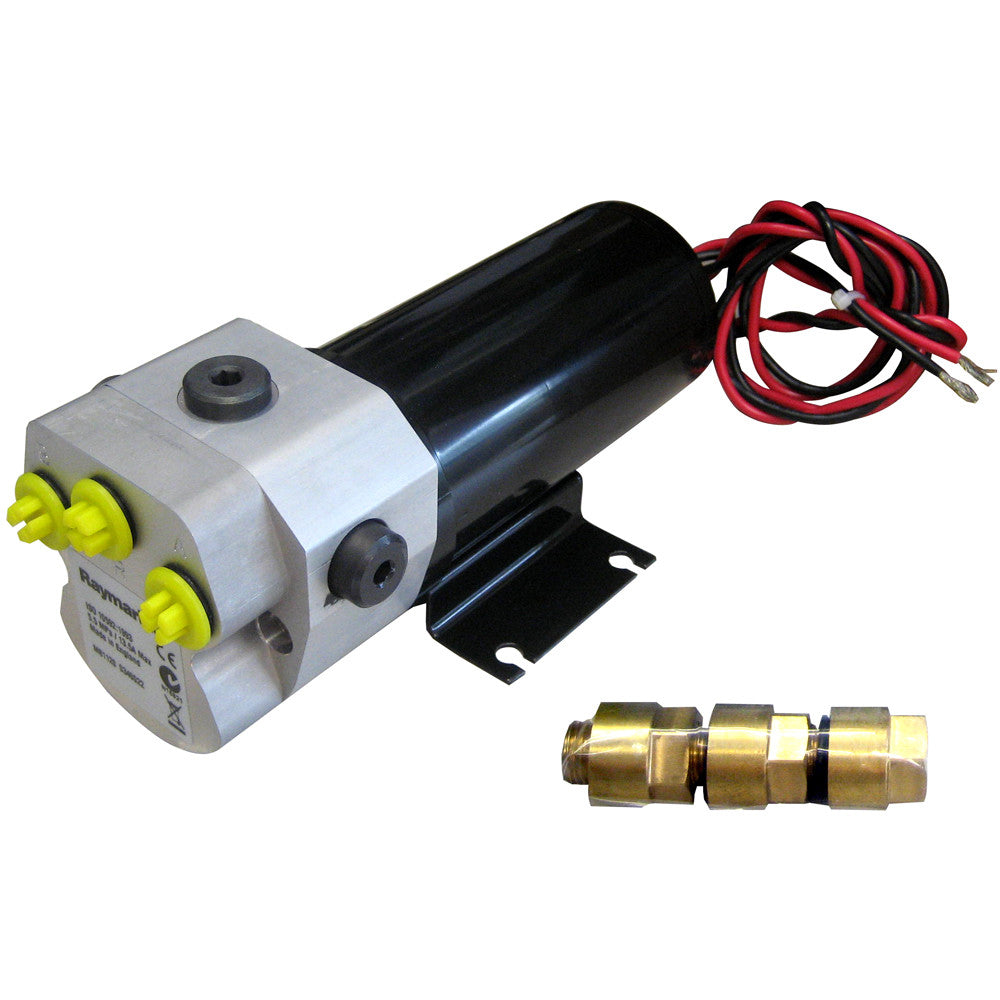

Raymarine Type 1 Pump 12V

Raymarine Type 1 Pump 12V

Regular price $857.99 USD
Regular price $944.99 USD Sale price $857.99 USD
Sale Sold out

Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack

Corepack Used S1 or S1G

Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V
750psi (50bar)


(no load) 67in/min (1000cc/min)



Corepack Used S2 or S2G

Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V
750psi (50bar)

Peak Flow Rate
(no load) 67in/min (1000CC/min)

Specifications:

  • Type: Pumps/Drives
  • Box Dimensions: 4"H x 5"W x 10"L WT: 5.6 lbs
  • UPC: 023193811208

Owner's Manual (pdf)
