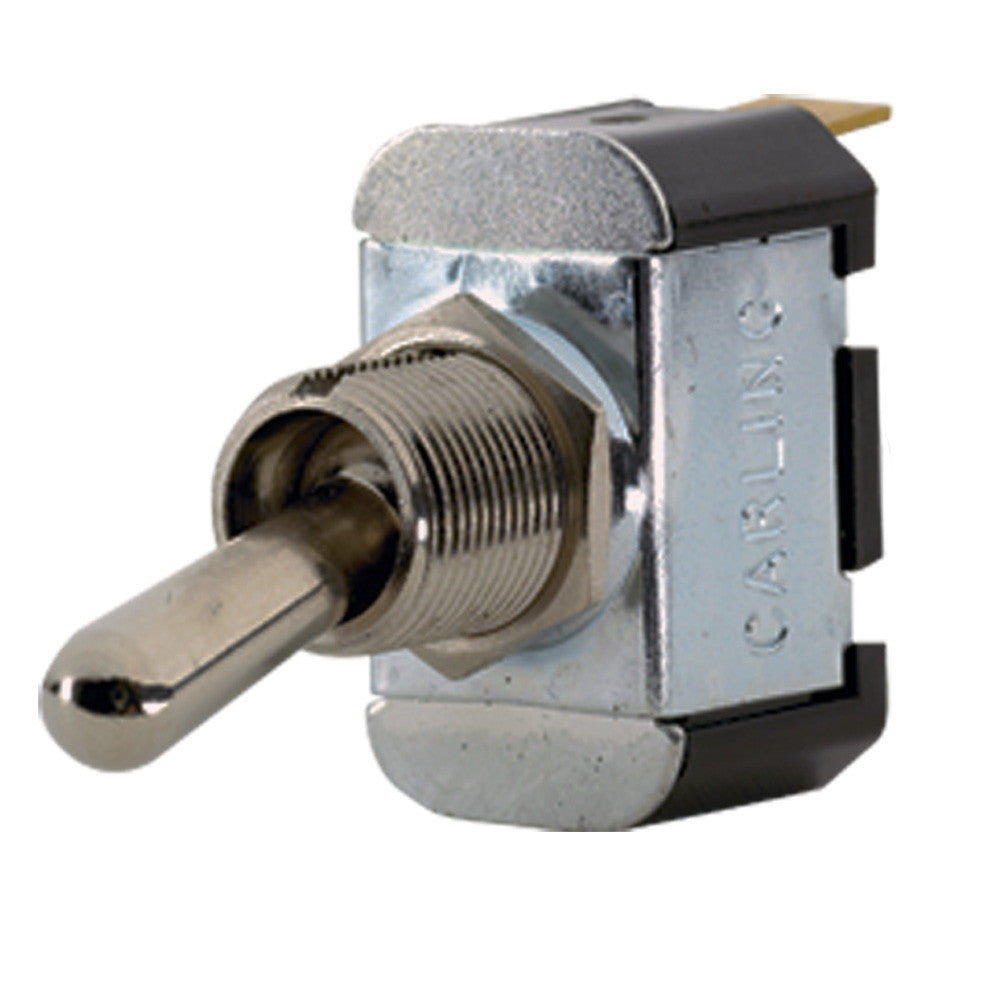

Paneltronics SPST ON/(OFF) Metal Bat Toggle Switch - Momentary Configuration

Metal Bat Handle Toggle Switches

• Single or double pole, and maintaining or momentary configurations are available

• Rated at 10A 250VAC, 15A 125VAC. and 15A 30VDC (ABYC E-11.14.1.1)

• AC units are UL Recognized for use in the USA and CSA certified for use in Canada

• Optional silicone rubber boots provide a watertight panel seal

• 1/4" male tab terminals are standard

• Hole plugs 1/2" diameter black (P/N 016-004) and White (P/N 016-020)

  Specifications:

  • Action: On/(Off)
  • Color: Stainless
  • Throw/Pole: SPST
  • Box Dimensions: 1"H x 1"W x 1"L WT: 0.2 lbs
  • UPC: 602290100417
