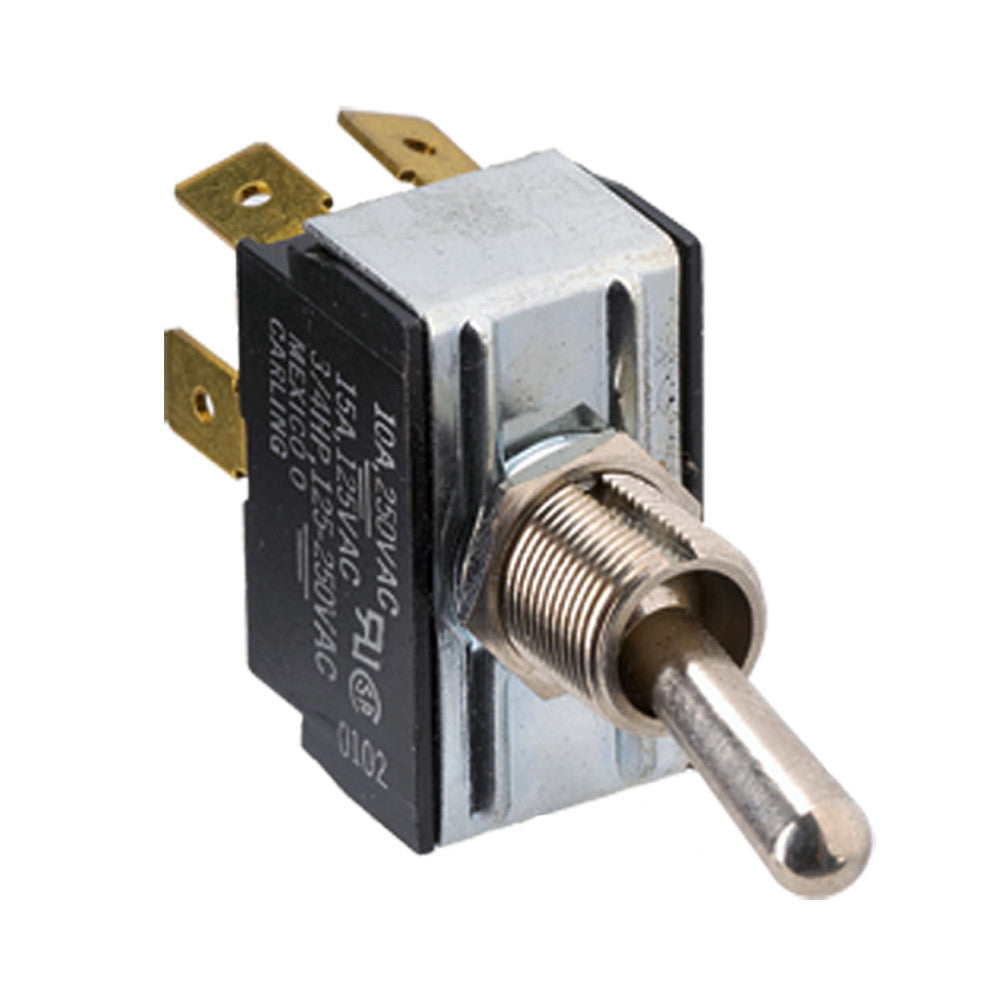

Paneltronics DPDT (ON)/OFF/(ON) Metal Bat Toggle Switch - Momentary Configuration

Metal Bat Handle Toggle Switches

• Single or Double pole, and maintaining or momentary configurations are available

• Rated at 10A 250VAC, 15A 125VAC, and 15A 30VDC (ABYC E-11.14.1.1)

• AC units are UL recognized for use in the USA and CSA Certified for use in Canada

• Optional silicone rubber boots provide a watertight panel seal

• 1/4" male tab terminals are standard

• Hole plugs 1/2" diameter Black (P/N 016-004) and White (P/N 016-020)

  Specifications:

  • Action: (On)/Off/(On)
  • Color: Stainless
  • Throw/Pole: DPDT
  • Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs
  • UPC: 602290100387
