OceanLED 'Colours' XFM Pro Series HD Gen2 LED Underwater Lighting - Color-Change

OceanLED 'Colours' XFM Pro Series HD Gen2 LED Underwater Lighting - Color-Change

Regular price $2,998.99 USD
Regular price $3,998.00 USD Sale price $2,998.99 USD
Sale Sold out

Pro Series 'Colours' XFM HD Gen2

Colours by OceanLED are the first high-powered color change underwater LED

lights for boats that allow boat owners to choose the color of their lights from an unlimited color pallet, and now they're even brighter!

Colours utilize the very latest 4-channel RGBW (Red/Green/Blue/White) High

Definition LEDs. Controlled via DMX-512 through the vessels onboard systems, or wirelessly via third party devices such as an iPad, iPhone or Android, Colours allows you to preprogram more than 40 static and dynamic color scenes to set the mood, enhance an onboard event, strobe to attract fish, or even change color with the time of day.

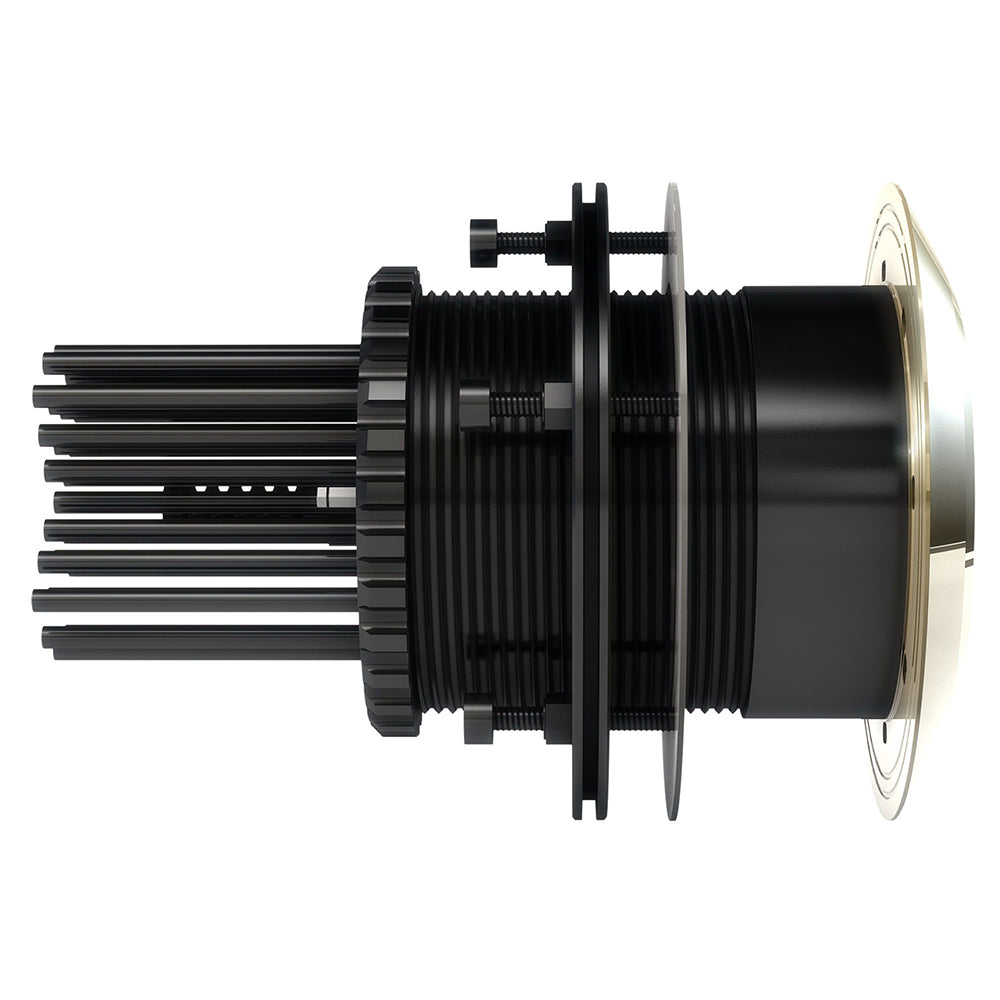

XFM models, or Xchangeable Flush Mounts, are just that - they're exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

Suitable for all hull types up to and over 65' (20m) using 2-6 lights with spacing of 3-5' (1-1.5m) - for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium glass lens.

For a color-change light with a smaller hole cut-out better suited for transom mount applications choose Colours TH.

  • Xchangeable from Inside the Hull
  • 4" Hole
  • Equal to 150w HID/Metal Halide
  • 40,000+ Hour Life
  • Aluminium Bronze AB2

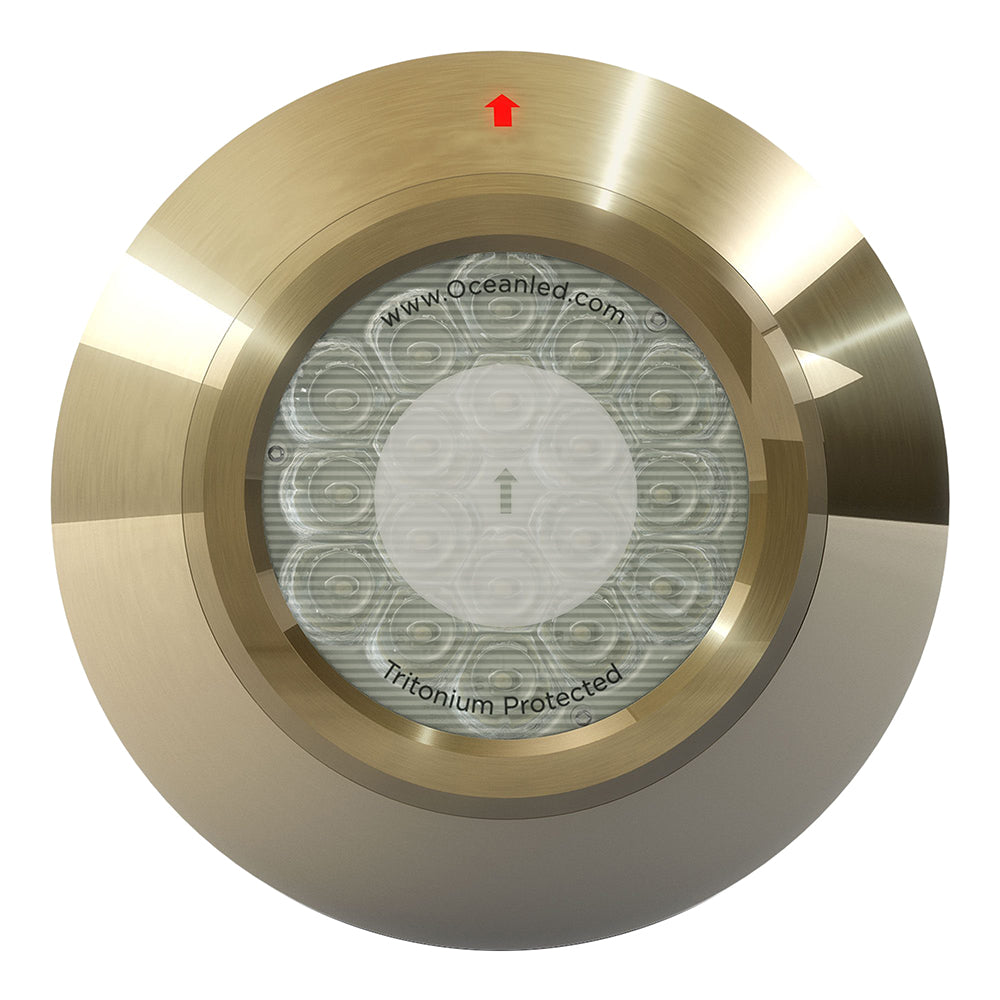

  • Tritonium Lens Resists Sea Growth
  • 110vAC: 1.1A
  • 240vAC: 0.5A

Mounting Recommendations:

Boat Size:up to 65' (20M)

Transom Spacing:3-5' (1.0-1.5M)

Transom Quantity: 2-6

Hull Spacing:3-6' (1.0-1.8M)

Installation Depth (to top of fixture): 8-10" (200-250mm)

Technical

Light Output Equivalent To: 250W HID Metal Halides

Fixture Lumens (total light output from a finished fixture): N/A

Current/Amp Draw (DC) (AC Upgrade Available): N/A

Current/Amp Draw (AC): 110VAC 50/60HZ 1.1A / 240VAC 50/60HZ 0.5A

Specifications:

  • Mounting Style: Thru-Hull
  • Color: Full Color RGBW
  • Material: AB2 Aluminum Bronze
  • Box Dimensions: 14"H x 14"W x 18"L WT: 26.4 lbs

Quick Guide (pdf)
Brochure (pdf)
