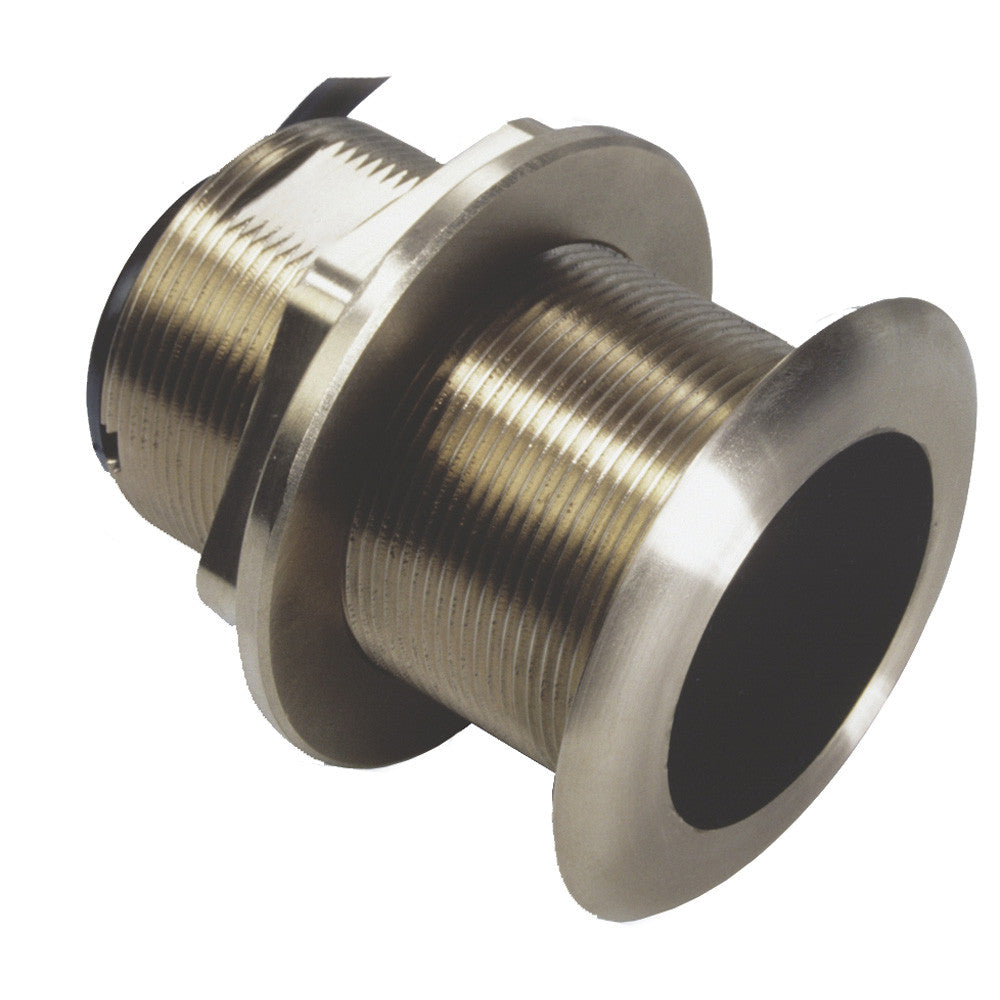

Navico B60-20, 20° Tilted Element Transducer
B60 Tilted Element 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
- 50/200 kHz
- 600w RMS
- 7 Pin Blue Connector
- Frequency: 50/200
- Mounting Style: Thru-Hull
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 4"H x 8"W x 10"L WT: 5.2 lbs
Owner's Manual (pdf)
