Lenco 21" x 14" High Performance Trim Tab Kit w/o Switch Kit 12V - Reel Draggin' Tackle

Lenco 21" x 14" High Performance Trim Tab Kit w/o Switch Kit 12V

  • $1,83299
  • Save $971

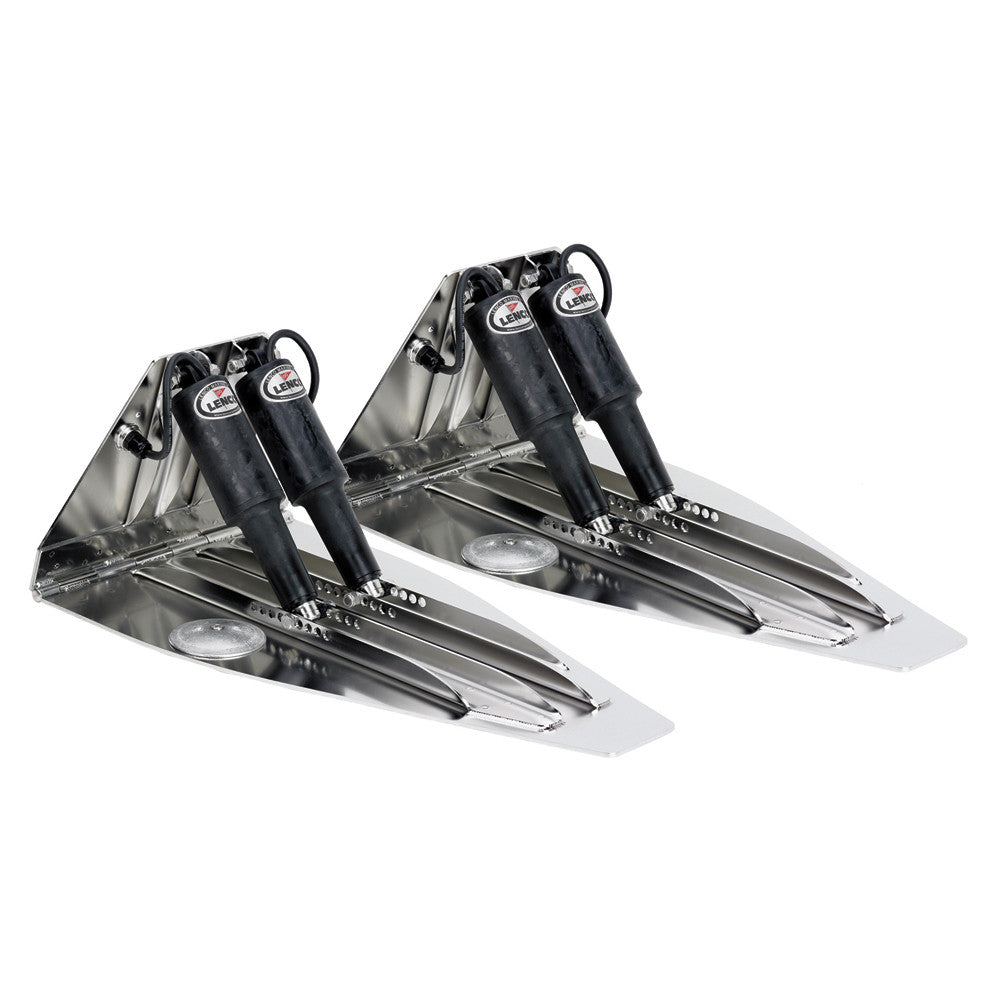

21" x 14" High Performance Trim Tab Kit w/o Switch Kit-12V - Dual Actuator

Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.

Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

Kit Contents:

  • 2 each of stainless steel trim tab planes
  • 4 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs
  • Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

The following to be supplied by customer:

  • Boat mounting hardware supplied by customer
  • Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
    required. To order the lengths of your choice see the Lenco Accessories Section.

Specifications:

  • Suggested Boat Length: 24' to 42'
  • Length of Tab: 21"
  • Width of Tab: 14"
  • Minimum Transom Height: 10.5"
  • Blades: 7 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Switch Required: 15071-001
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Actuators: 12-volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 14"H x 17"W x 28"L WT: 67 lbs
  • UPC: 874847004725

Brochure (pdf)
