Lenco 101XD Extreme Duty Actuator - 24V - 2-1/4" Stroke - 5/16" Hardware
101 XD Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware

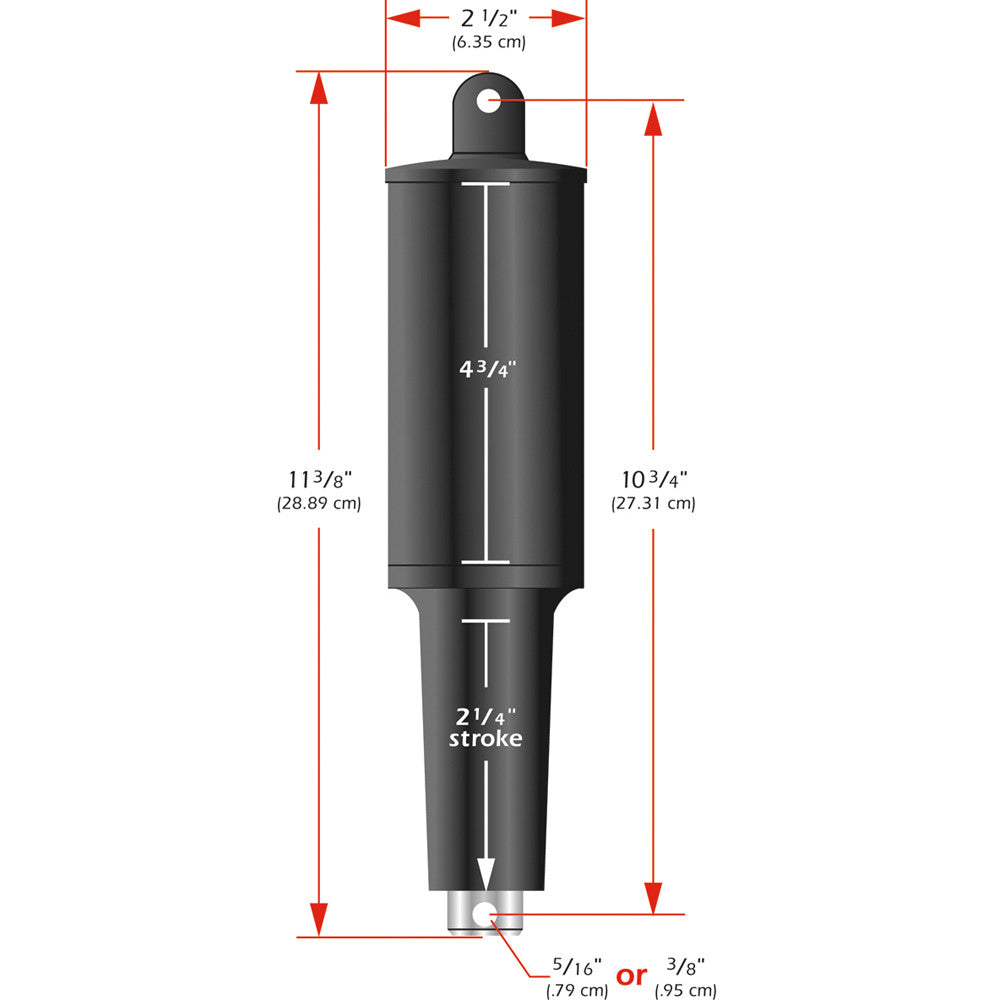

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
- 24 Volt
- 5/16" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Quick Guide (pdf)
