Johnson Pump Ultima Bilge 800 GPH 3/4" Hose Dura Ports - Reel Draggin' Tackle

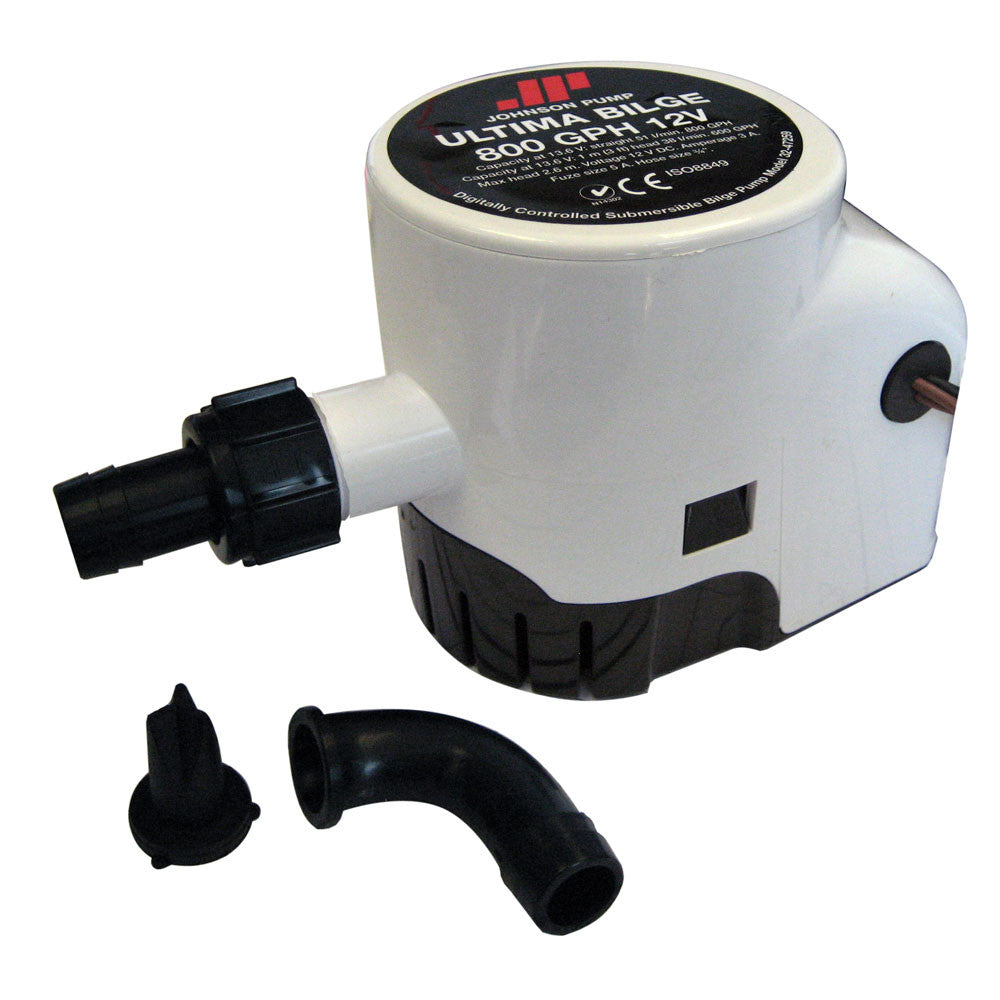

Johnson Pump Ultima Bilge 800 GPH 3/4" Hose Dura Ports

  • $6599
  • Save $22


Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

  • Compact, all-in-one unit
  • Integrated Ultima Switch sensing right into the pump body
  • No Mercury
  • Removable clip on basket design
  • Removable impeller cover allows for easy clean out
  • 3-wire device can be run in auto or manual override mode
  • No tools needed for maintenance
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • Meets the international standard, ISO 8849 marine
  • Pump Body: ABS
  • Shaft Seal: Lip Seal
  • Shaft: Stainless steel
  • Voltage: 12 V DC
  • Capacity 3 ft (0.9 m) head (13.6 V): 38 l/min - 600 GPH
  • Capacity straight (13.6 V): 51 l/min - 800 GPH
  • Amperage: 3 A
  • Fuse Size: 5 A
  • Connection: 3/4"
  • Length:142 mm - 6"
  • Width:82 mm - 3.2"
  • Height:105 mm - 4.1"
  • Weight:0.66 kg - 23.3 oz.

Specifications:

  • Gallons Per Hour: 800
  • Operation: Automatic
  • Outlet Size: 3/4'
  • Power - Max Continuous (Amps): 3 amps
  • Volts: 12
  • Box Dimensions: 4"H x 8"W x 9"L WT: 1.4 lbs
  • UPC: 729321472593

Owner's Manual (pdf)
