Johnson Pump 1000 GPH Bilge Pump 3/4" 12V Dura Ports - Reel Draggin' Tackle

Johnson Pump 1000 GPH Bilge Pump 3/4" 12V Dura Ports

  • $3599
  • Save $18


Cartridge Bilge Pumps 1000 GPH

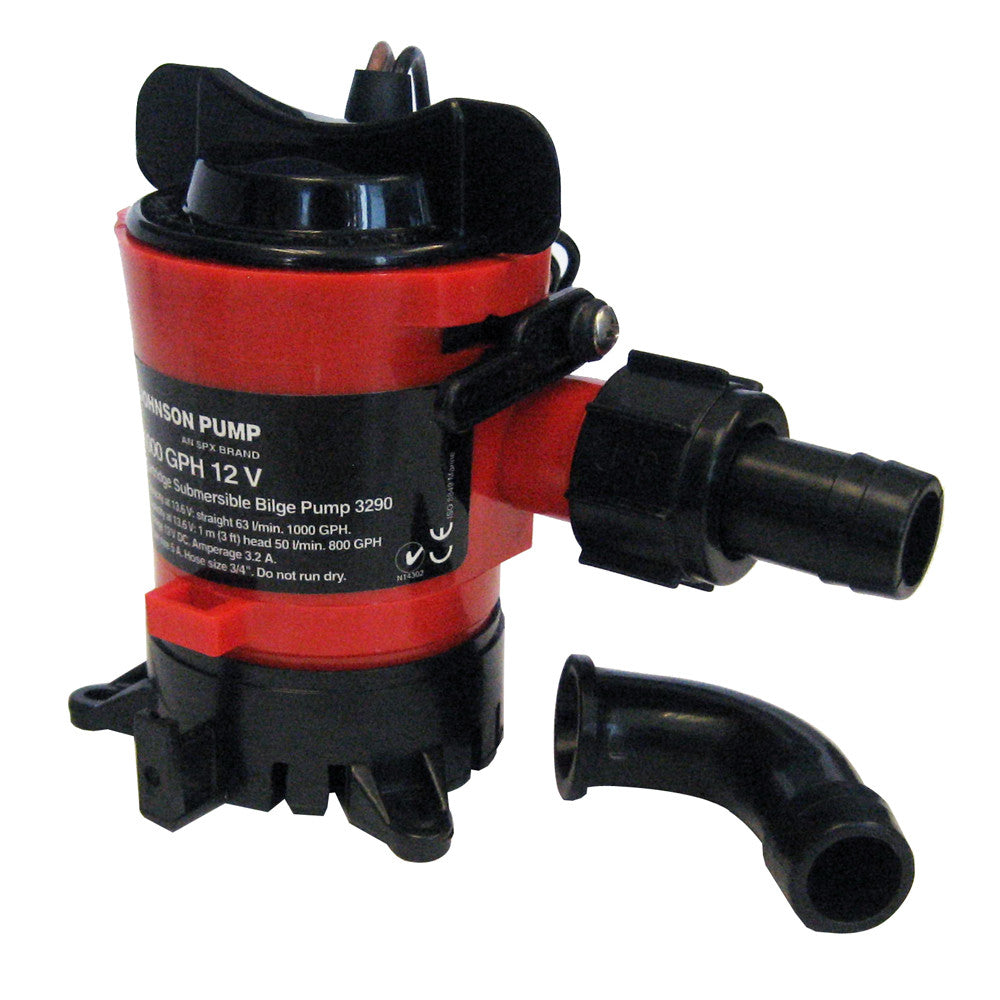

The 1000 GPH incorporates some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties. We have improved the design with easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port as well as a removable check valve.
Both the Cartridge and the Ultima Combo pumps may be manually operated via the Johnson Pump bilge control panel.
CE-approved

Features:

  • Compact, all-in-one motor/impeller unit
  • No tools needed for maintenance
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • Meets the international standard, ISO 8849 marine
  • Capacity 3 ft (0.9 m) head (13.6 V): 50 l/min - 800 GPH
  • Capacity Straight: 63 l/min - 1000 GPH
  • Amperage: 3.2 A
  • Fuse Size: 5 A
  • Connection: 3/4"
  • Max Height: 112 mm - 4.4"
  • Weight: 0.27 kg - 9.6 oz.

Specifications:

  • Gallons Per Hour: 1000
  • Operation: Non-Automatic
  • Outlet Size: 3/4'
  • Power - Max Continuous (Amps): 3.2 amps
  • Volts: 12
  • Box Dimensions: 4"H x 6"W x 8"L WT: 0.9 lbs
  • UPC: 729321329033

Owner's Manual (pdf)
