Jabsco Electric Toilet Conversion Kit - 12V - Reel Draggin' Tackle

Jabsco Electric Toilet Conversion Kit - 12V

  • $40499
  • Save $144


Conversion Kit

Convert Jabsco manual toilet compact and regular bowl models to full electric operation without the need to alter existing inlet or discharge seacocks.

  • Also converts most toilets with 4 bolt screw pattern on a 3-3/4" diameter bolt circle such as Graco, Raritan, Wilcox Crittenden, Mansfield and Sealand
  • Push button flushing for ease and simplicity of operation

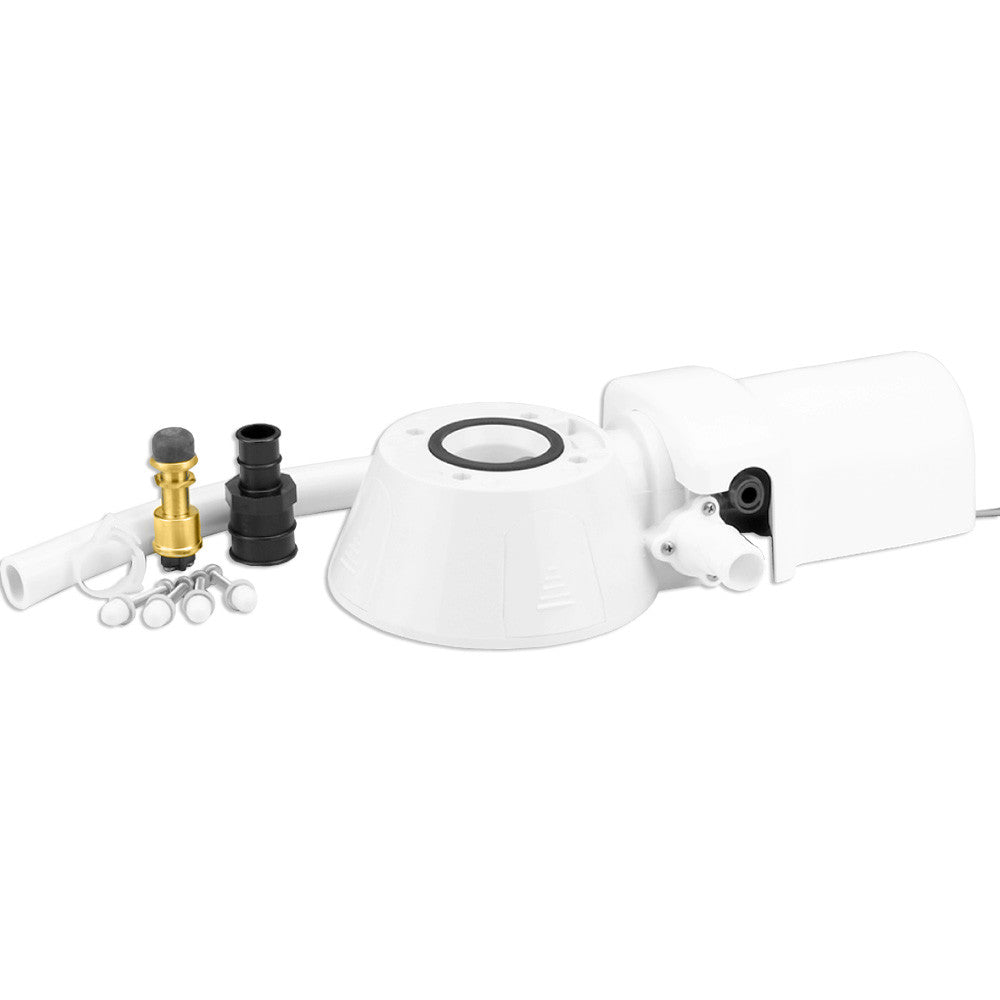

  • Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps hose and fastening
  • Flushing pump self-priming up to 4ft vertical lift
  • May be installed 3ft below the waterline
  • For installations fitted with vented loops use a solenoid valve on inlet hose
  • Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)


Fitting:Connections for 5/8" - 3/4" ID inlet hose, 1" - 1-1/2" ID outlet Hose
Size: 13-1/4" long x 8-1/4" wide x 3-1/4" high

Specifications:

  • Inlet Size: 5/8-3/4
  • Outlet Size: 1-1-1/2
  • Suction Lift (ft.): 4
  • Volts: 12v
  • Box Dimensions: 4"H x 9"W x 15"L WT: 8 lbs
  • UPC: 671880523479

Owner's Manual (pdf)
