Faria Chesapeake White SS 4" Tachometer w/Systemcheck Indicator - 7000 RPM (Gas) (Johnson/Evinrude Outboard)
Chesapeake White SS 4" Tachometer w/Systemcheck Indicator - 7000 RPM (Gas - Johnson/Evinrude Outboard)

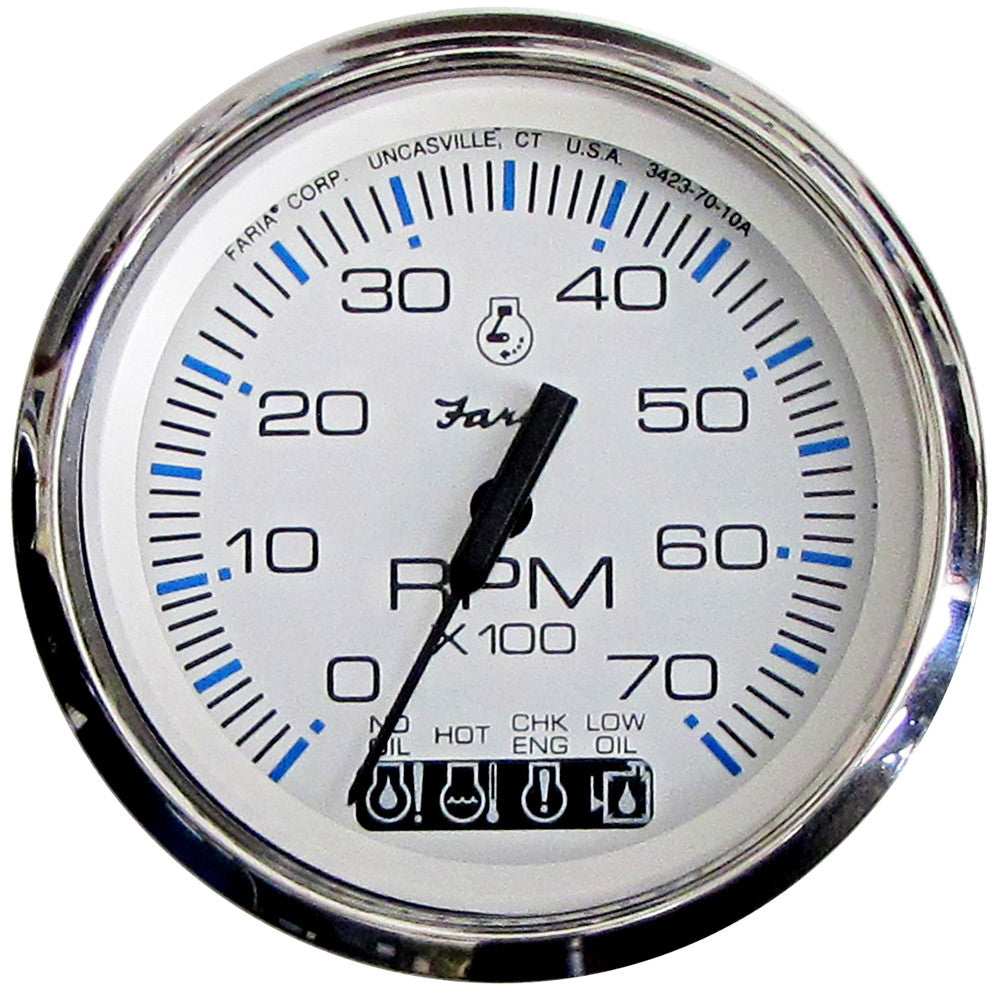

Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.
Tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.
By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.
These tachometers have a warning light system built into the dial that show off warning indicators when a fault is detected from the engine.
- No Oil
- Engine Overheat
- Check Engine
- Low Oil
4" - Hole size: 3.375" (85mm)
For Engine Types:
- Johnson/Evinrude Outboard
- Anti-scratch glass lens
- Plastic Cases for corrosion resistance and long life
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N TC9881
*Sold as an Individual
**Gauge Cover not Included
- Gauge Type: Tachometer w/System Check
- Box Set: No
- Series: Chesapeake White
- Voltage - Input Range (Volts): 12/24 V
- Gauge Size: 4"
- Box Dimensions: 5"H x 5"W x 6"L WT: 0.7 lbs
- UPC: 745425338504
Quick Guide (pdf)
