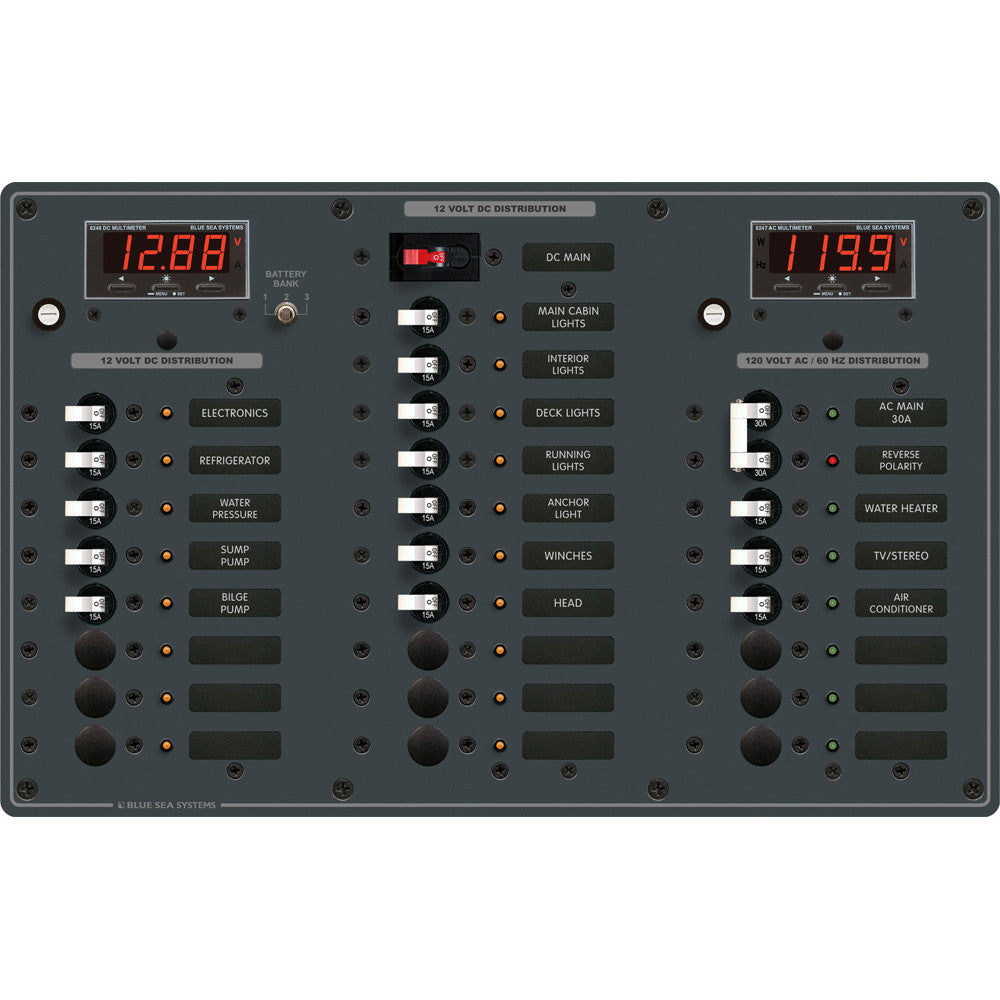

Blue Sea 8408 AC Main + 6 Positions / DC Main + 18 Positions

AC Main + 6 Positions / DC Main + 18 Positions

Installed AC Breakers

• 120V AC

• 12/24V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Detailed installation instructions and cutout template included

• Countersunk mounting holes throughout

• Includes set of 60 common AC and DC Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120/12/24v
• Max Breaker Quantity: 6 AC / 18 DC
• AC/DC: AC
• Box Dimensions: 7"H x 15"W x 22"L WT: 10.3 lbs
• UPC: 632085084080
