Blue Sea 8102 ELCI GFCI Panel AC 2 Position - Reel Draggin' Tackle

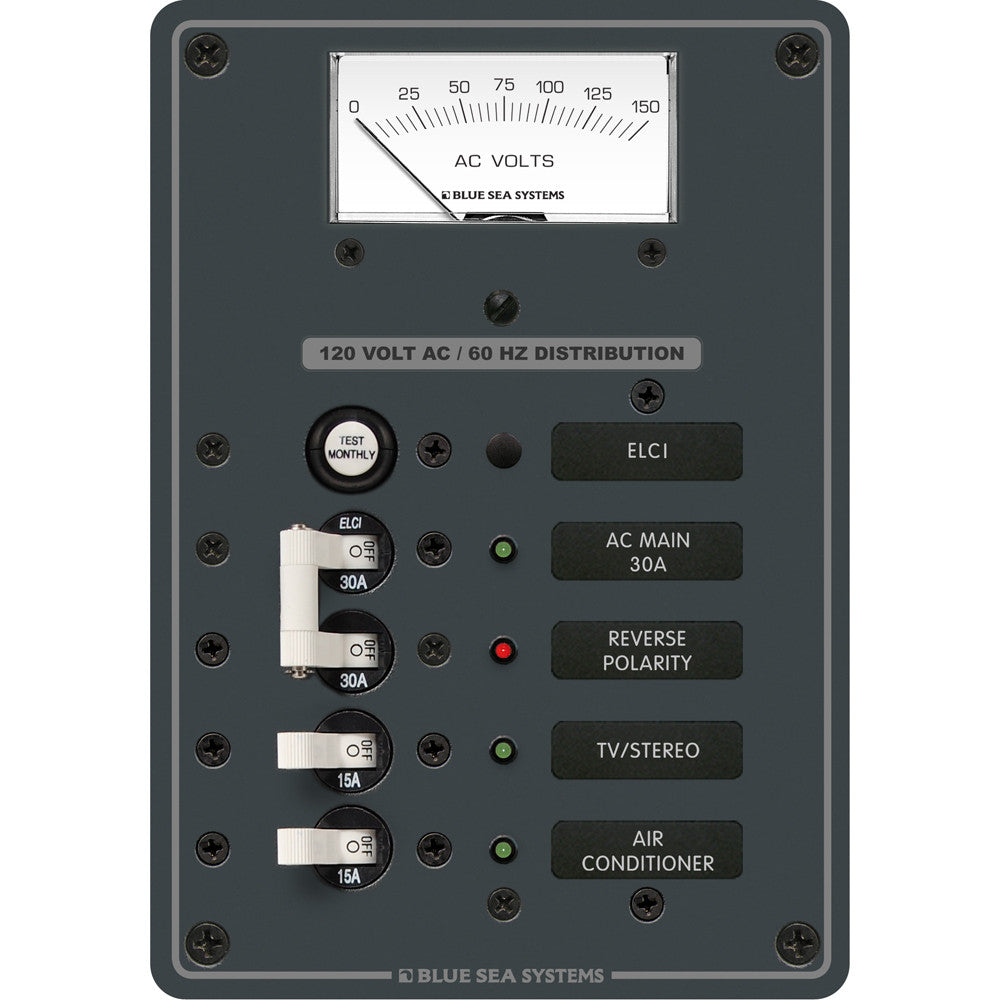

Blue Sea 8102 ELCI GFCI Panel AC 2 Position

  • $32899
  • Save $131


ELCI Main 30A Double Pole + 2 Positions with Voltmeter

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications
Positions2
Nominal Voltage120V AC
Leakage Trip Amps30mA
Height5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth3.50" (88.9mm)
Weight2.25lb (1.02kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Box Dimensions: 5"H x 9"W x 11"L WT: 2.3 lbs
  • UPC: 632085081027

Quick Guide (pdf)
Owner's Manual (pdf)
