Blue Sea 8100 ELCI GFCI Panel - Reel Draggin' Tackle

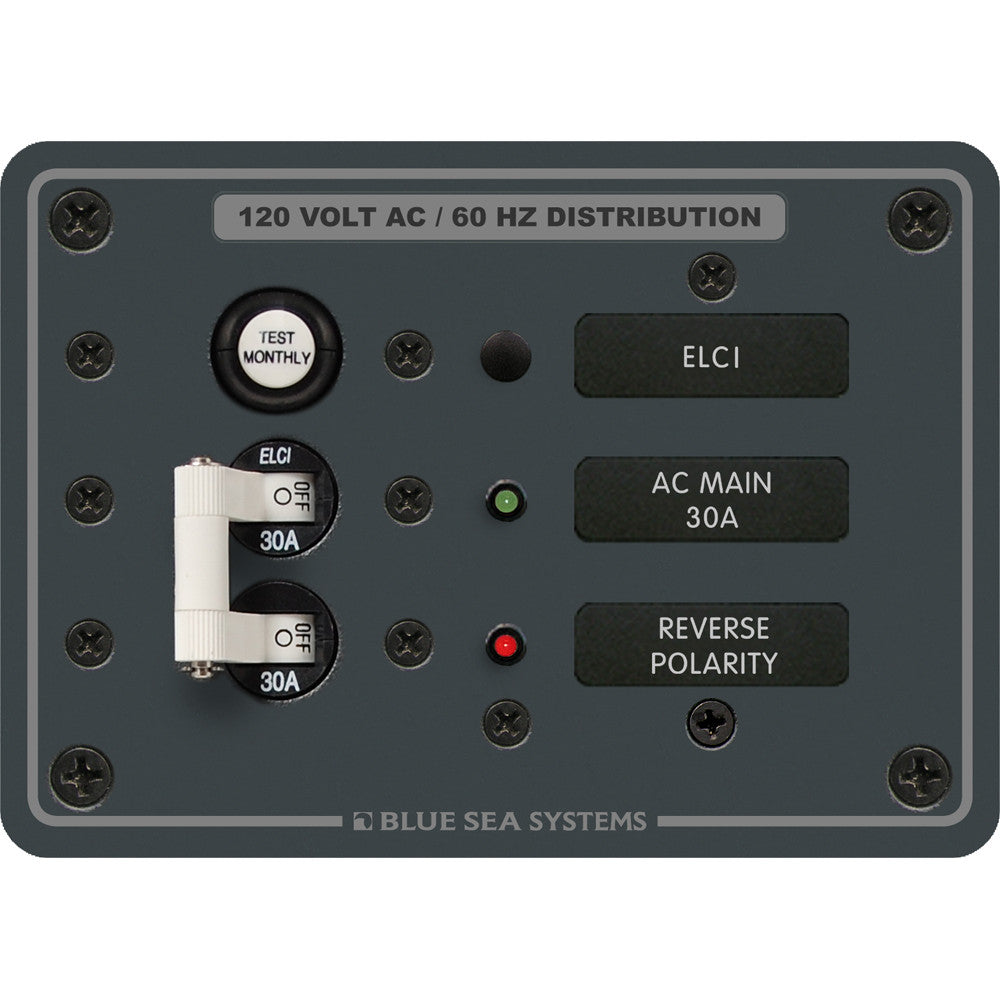

Blue Sea 8100 ELCI GFCI Panel

  • $20899
  • Save $71


ELCI Main 30A Double Pole

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications
Nominal Voltage120V AC
Leakage Trip Amps30mA
Height5.25" (133.35mm)
Width 3.75" (95.25mm)
Depth3.50" (88.9mm)
Weight2.25lb (1.02kg)

Specifications:

  • AC/DC: AC
  • Box Dimensions: 5"H x 9"W x 12"L WT: 2 lbs
  • UPC: 632085081003

Quick Guide (pdf)
Owner's Manual (pdf)
