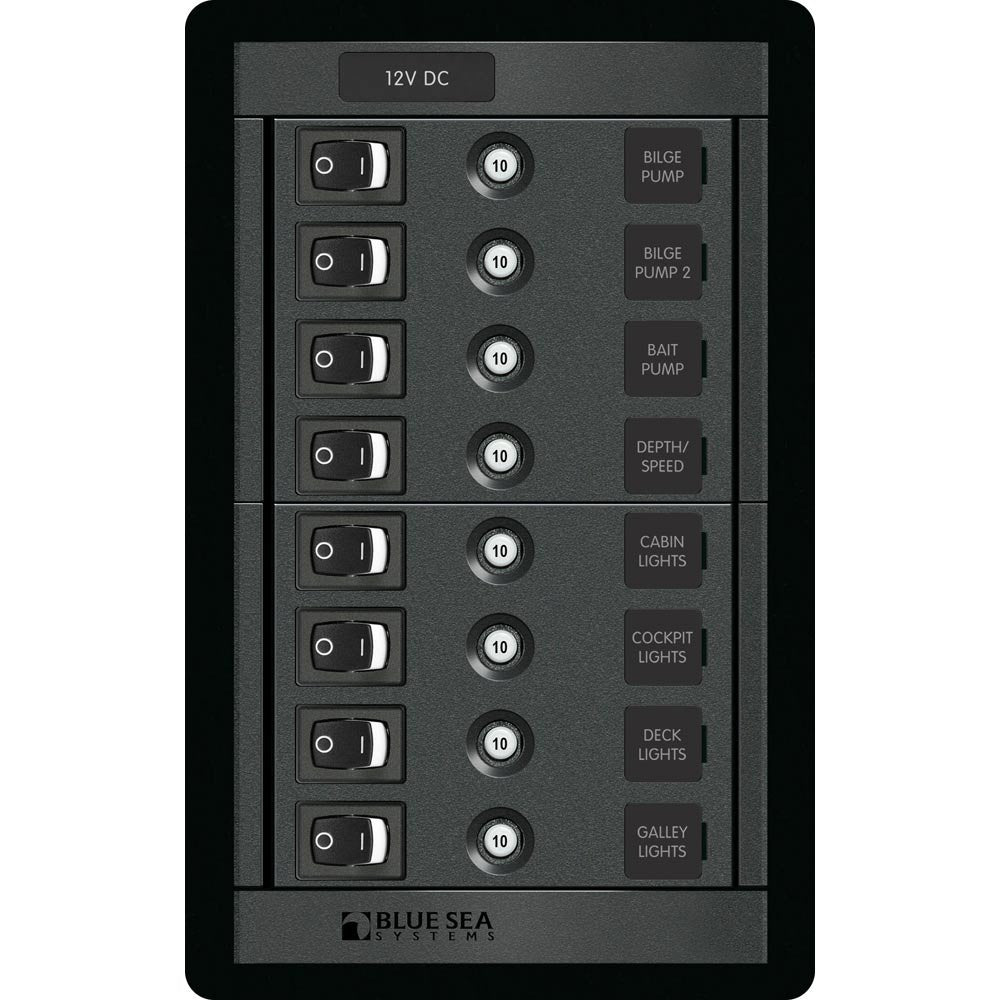

Blue Sea 1457 8 Position Switch CLB Vertical

8 Position Switch CLB Vertical

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions:t8

• Nominal Voltage:t12V DC

• Maximum Amperage*:t80A

• Height:t7.75" (196.85mm)

• Width:t4.88" (123.95mm)

• Depth:t3.50" (88.9mm)

• Weight:t1.69lb (0.77kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7480 - Rocker Switch SPST - ON-OFF
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 6"H x 7"W x 12"L WT: 1.6 lbs
• UPC: 632085014575

Quick Guide (pdf)
Owner's Manual (pdf)
