Blue Sea 7702 ML-Series Remote Battery Switch w/Manual Control 24V DC - Reel Draggin' Tackle

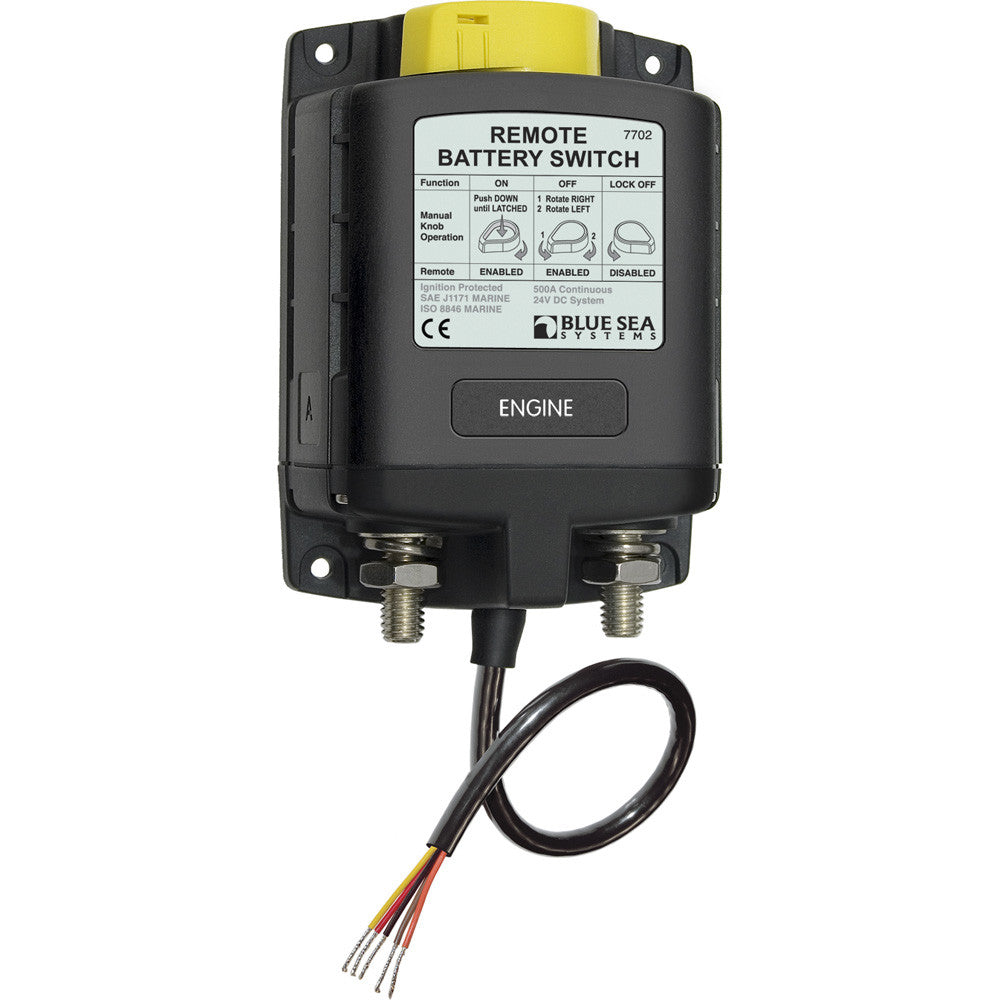

Blue Sea 7702 ML-Series Remote Battery Switch w/Manual Control 24V DC

  • $18899
  • Save $64


7702

Manual Control: Yes
Coil Voltage: 24V DC

  • 500 Ampere continuous rating for use as a remote battery switch for inboard gasoline or diesel engines, reducing long cable runs
  • Magnetic latch only draws current when changing state of switch, drawing no current in "ON" or "OFF" state
  • Silver alloy contacts provides high reliability for switching live loads

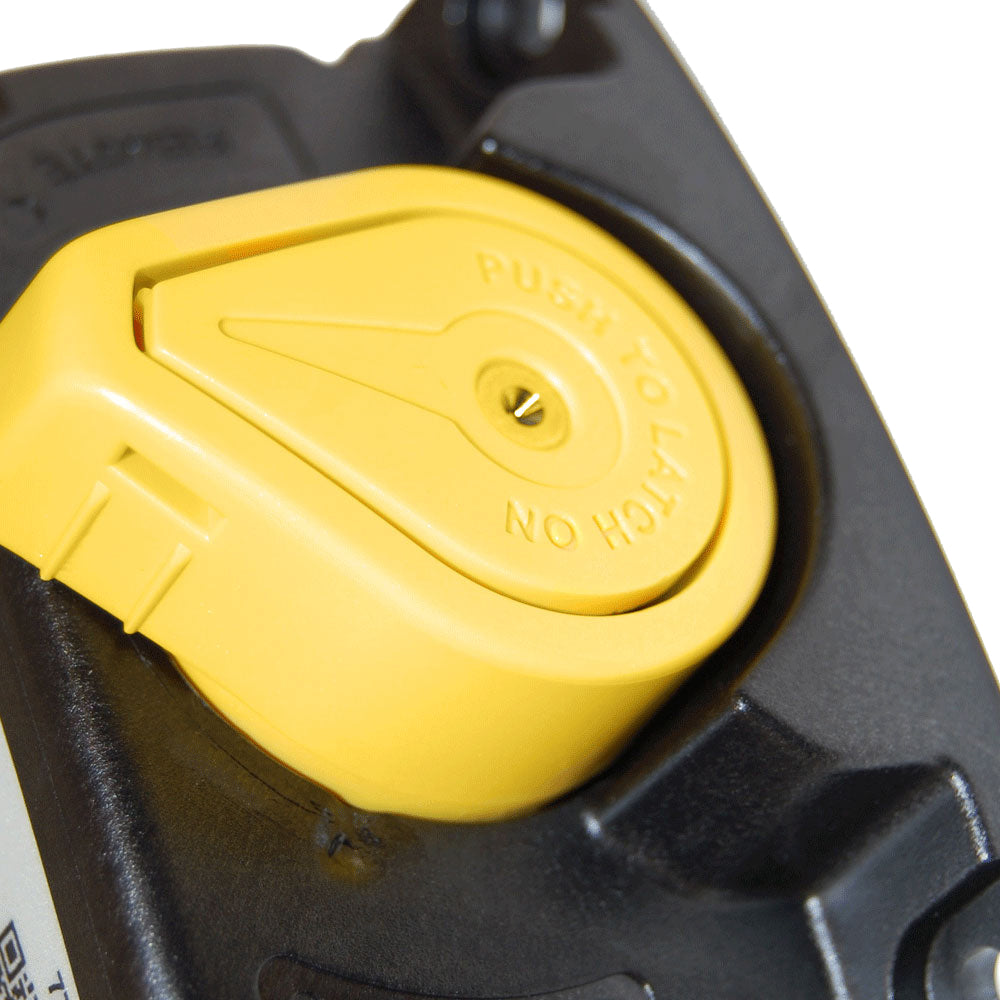

  • Optional manual switch provides an added level of safety allowing control with or without power, and offering lockout capability for servicing
  • 3/8" copper studs, using Blue Sea Systems superior one piece technology, suitable for 300 Amperes continuous rating and large cable connections

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Box Dimensions: 3"H x 7"W x 12"L WT: 2 lbs
  • UPC: 632085077020

Owner's Manual (pdf)
Brochure (pdf)
