Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black

  • $4399
  • Save $15

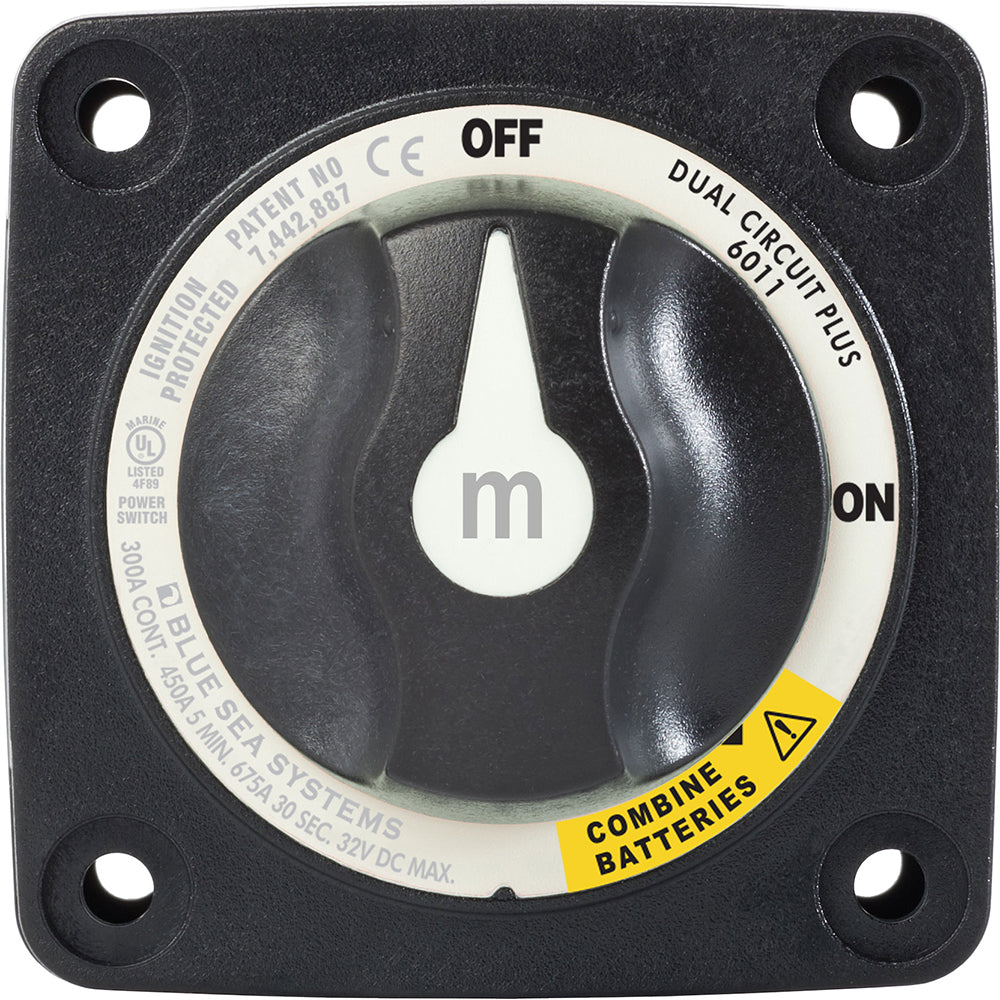

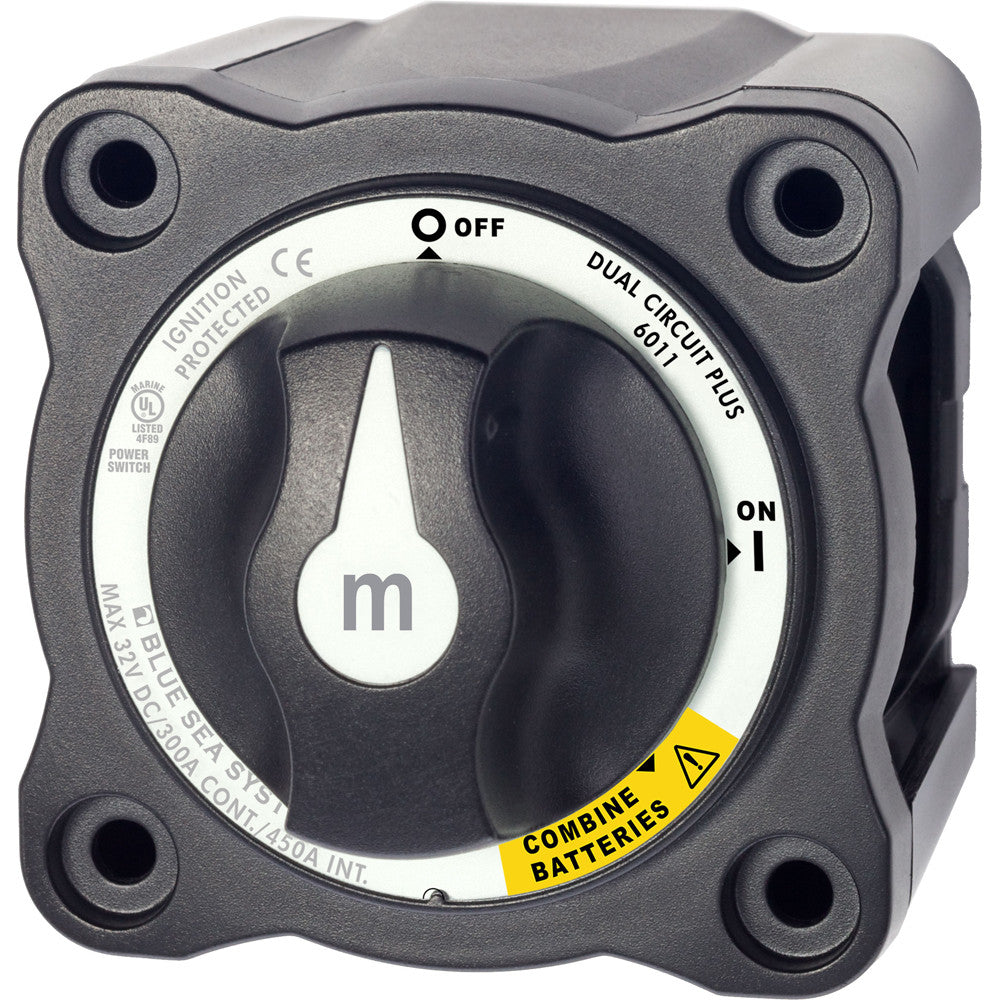

m-Series Mini Dual Circuit Plus Battery Switch - Black

Simultaneously switches two isolated battery banks or combines battery banks to all loads.

Make before break contact design allows switching between battery banks without power interruption.

Switch Type: tDual Circuit Plus
Color:tBlack
Switch Positions:t3
Battery Combine:tYes
Alternator Field Disconnect: tNo
Maximum Voltage:t32V DC
Continuous Rating :t300A
Intermittent Rating :t450A (5 min)
Cranking Rating 10 sec: t1000A
Cranking Rating 1 min: t650A

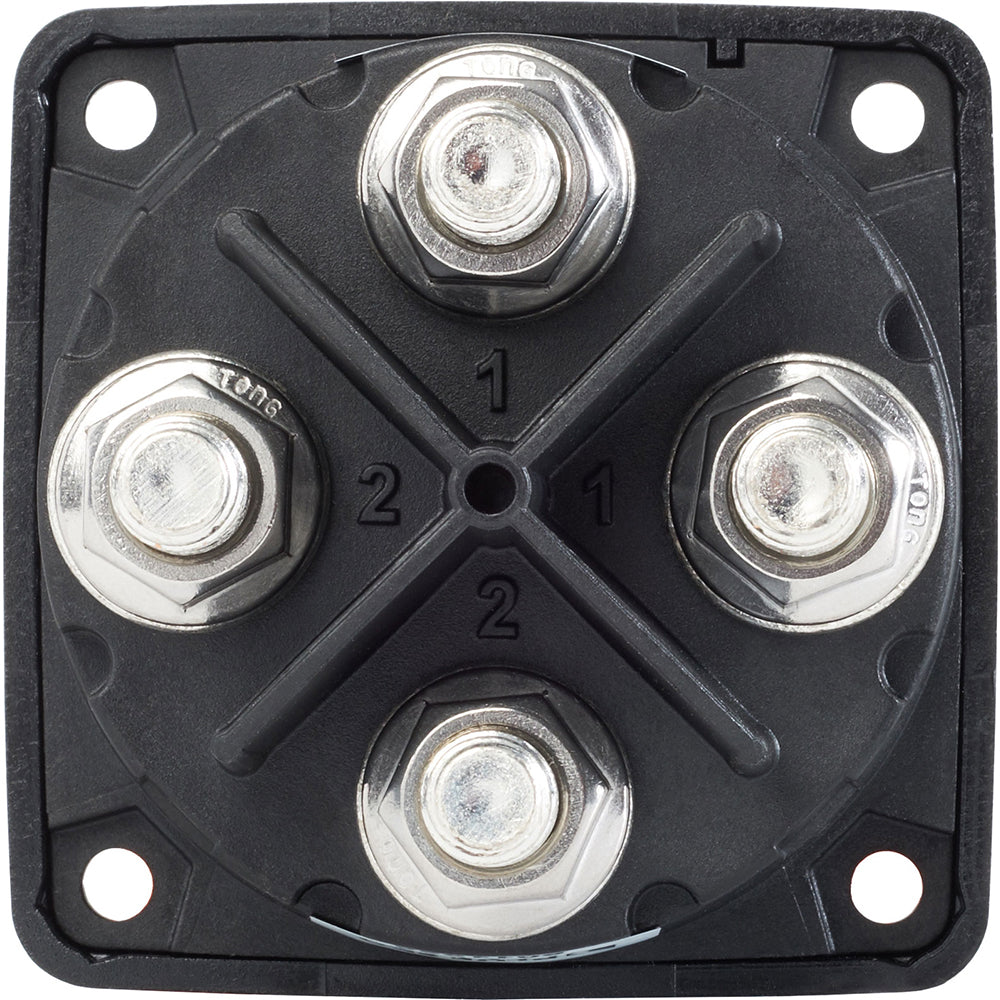

Battery Inputs:t2
Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)
Cable Size to Meet Ratings:t4/0 AWG (120mm²)

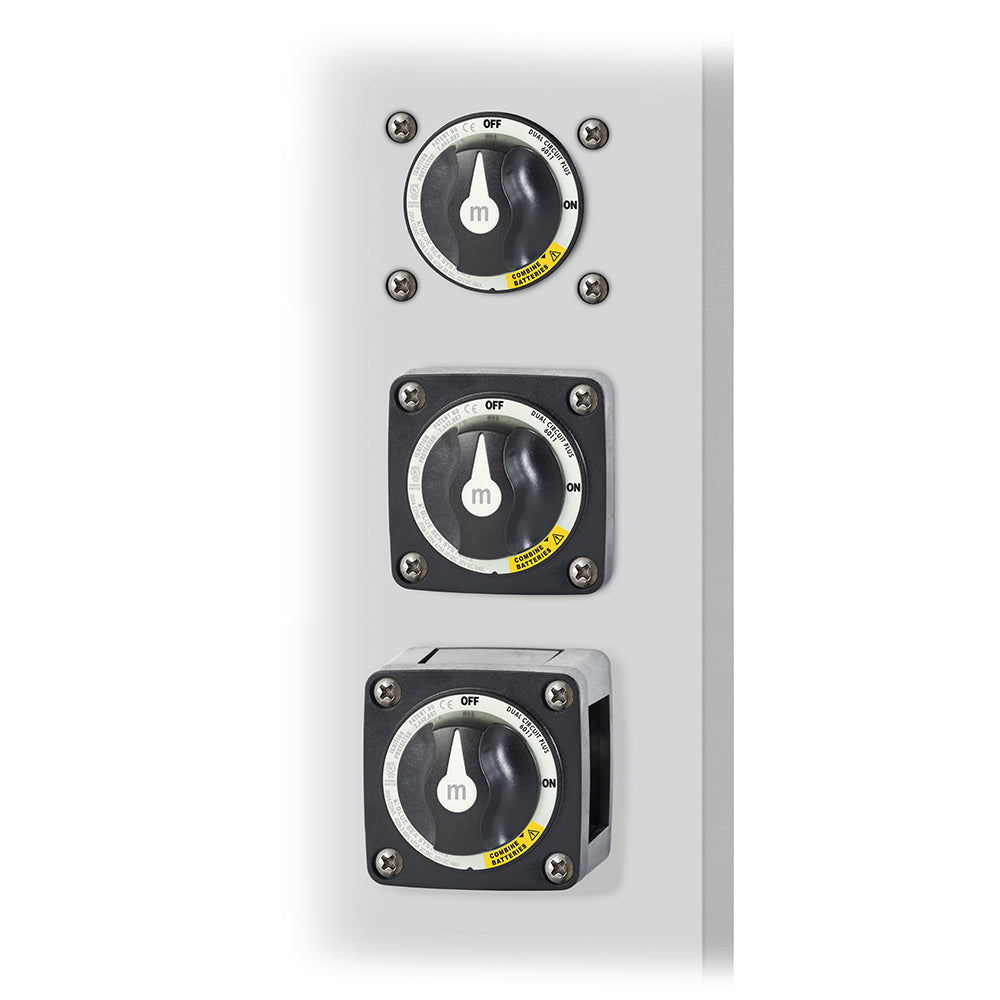

Mounting Holes: tAccept #10 Screw
Terminal Stud Size:t3/8"-16 (M10)
Terminal Stud Torque:t120 in-lb (13.56 Nm)
Weight:t0.80lb (0.36 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AFD: No
  • Positions: 3
  • Continuous Amperage: 300a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
  • UPC: 632085601126
