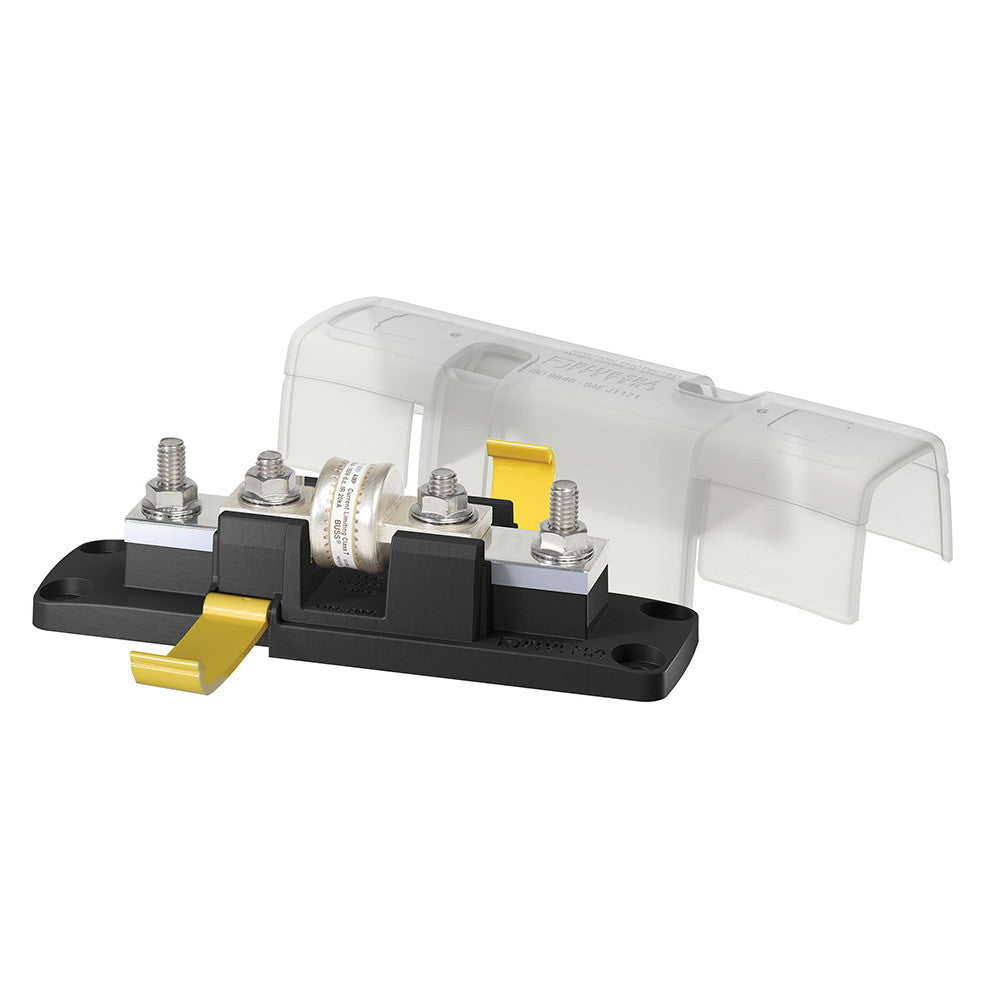

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A

  • $6499
  • Save $19


Class T Fuse Block with Insulating Cover - 110 to 200A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

  • Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • Stud design ensures secure fuse mounting even with high heat
  • Stainless steel studs provide resistance to corrosion and high torque
  • One-piece stainless flange nuts ensure safe and secure connections
  • UL 94-V0 base resists high heat


Specifications:
  • Cable Size: Up to 4/0 AWG
  • Ignition Protected: Yes
  • Maximum Amperage: 200A
  • Maximum Voltage: 160V DC
  • Fuse Mounting Block: Tin-Plated Copper
  • Terminal Stud Size: 5/16"-18 (M8)
