Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey

Regular price $105.99 USD
Regular price $146.58 USD Sale price $105.99 USD
Sale Sold out

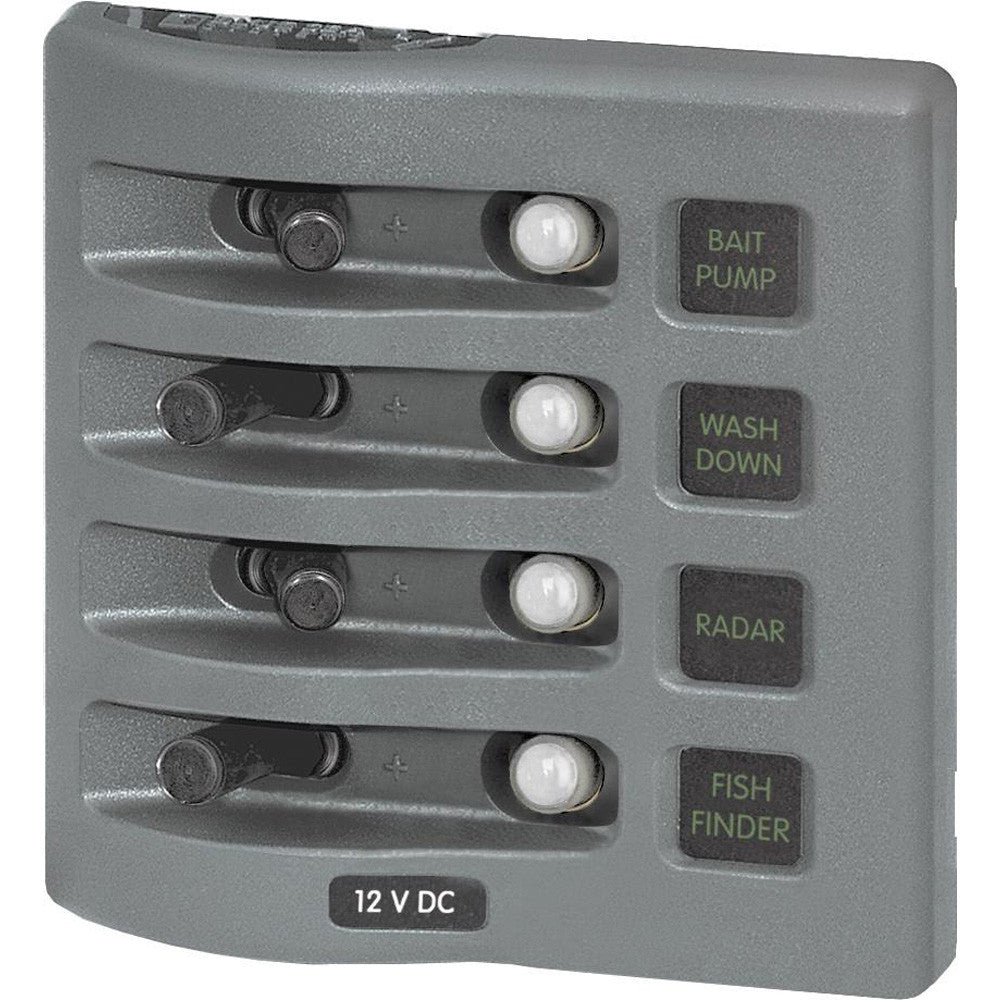

WeatherDeck™ Water Resistant Circuit Breaker Panel

PN: 4374

Color: Gray

Features:

  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

  • Weatherproof: Waterproof
  • Positions: 4
  • Nominal Voltage: 12v / 24v DC
  • Circuit Protection: Circuit Breaker
  • Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
  • Panel Cumulative Rating: 45A
  • Backlit Label: Green LED
  • Backlighting Amperage: 10mA/Illuminated Circuit
  • Backlighting Voltage: 12 or 24v DC
  • Height: 4.3"
  • Width: 4.25"
  • Depth: 3.5"

Included:

  • (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
  • (4) 4138 WeatherDeck® Toggle Switch Boot - Black
  • (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
  • (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
  • (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Waterproof
  • Voltage: 12v
  • AC/DC: DC
  • Max Breaker Quantity: 4
  • Box Dimensions: 6"H x 6"W x 8"L WT: 1 lbs
  • UPC: 632085043742

Quick Guide (pdf)
