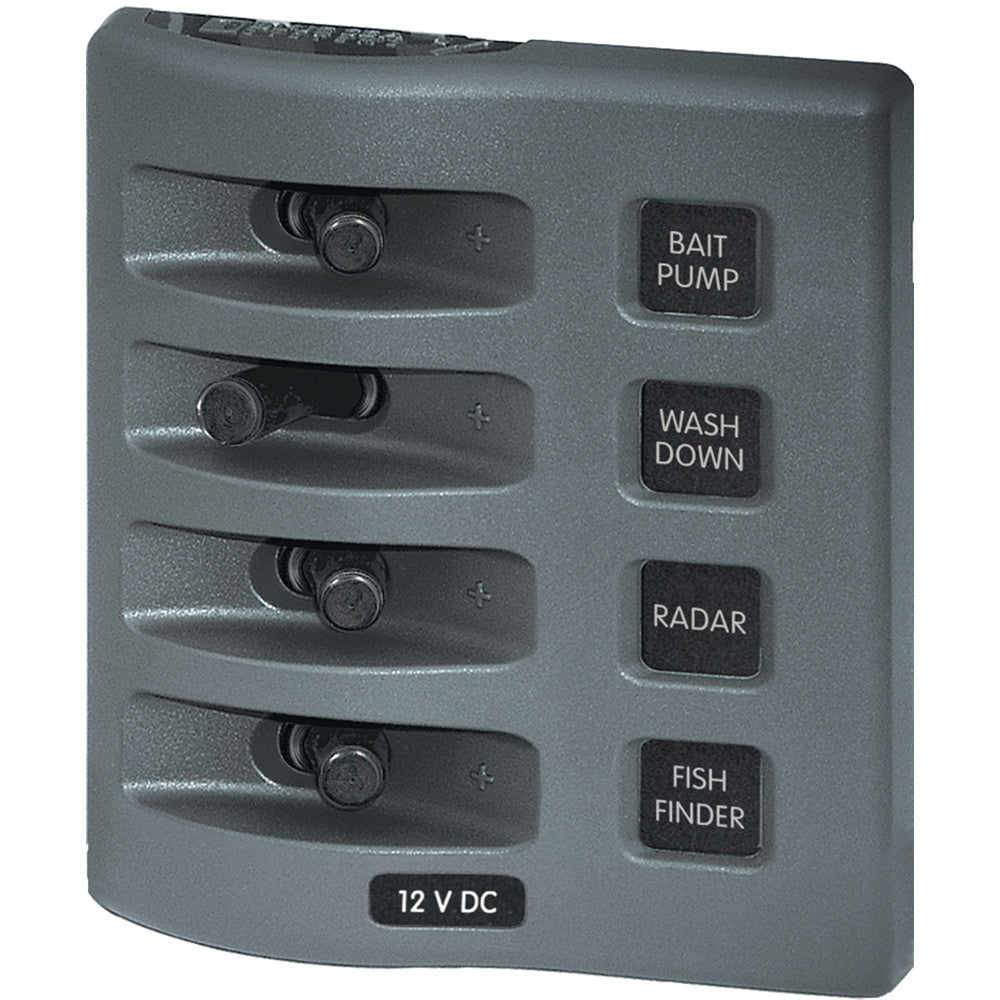

Blue Sea 4305 WeatherDeck® 12V DC Waterproof Switch Panel - 4 Posistion - Reel Draggin' Tackle

Blue Sea 4305 WeatherDeck® 12V DC Waterproof Switch Panel - 4 Posistion

  • $4999
  • Save $11


WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position

  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws


Weatherproof: Waterproof
Positions:4
Nominal Voltage:12V DC/24V DC
Circuit Protection:None
Maximum Amperage:15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material:Reinforced Polycarbonate
Height:4.30"(109.22 mm)
Width: 3.88"(98.55 mm)
Depth:2.50"(63.5 mm)
Weight:0.90lb (0.41 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: DC
  • Box Dimensions: 4"H x 6"W x 7"L WT: 0.7 lbs
  • UPC: 632085043056

Owner's Manual (pdf)
