Blue Sea 3010200 Battery Switch Dual Circuit - Black

  • $4799
  • Save $11

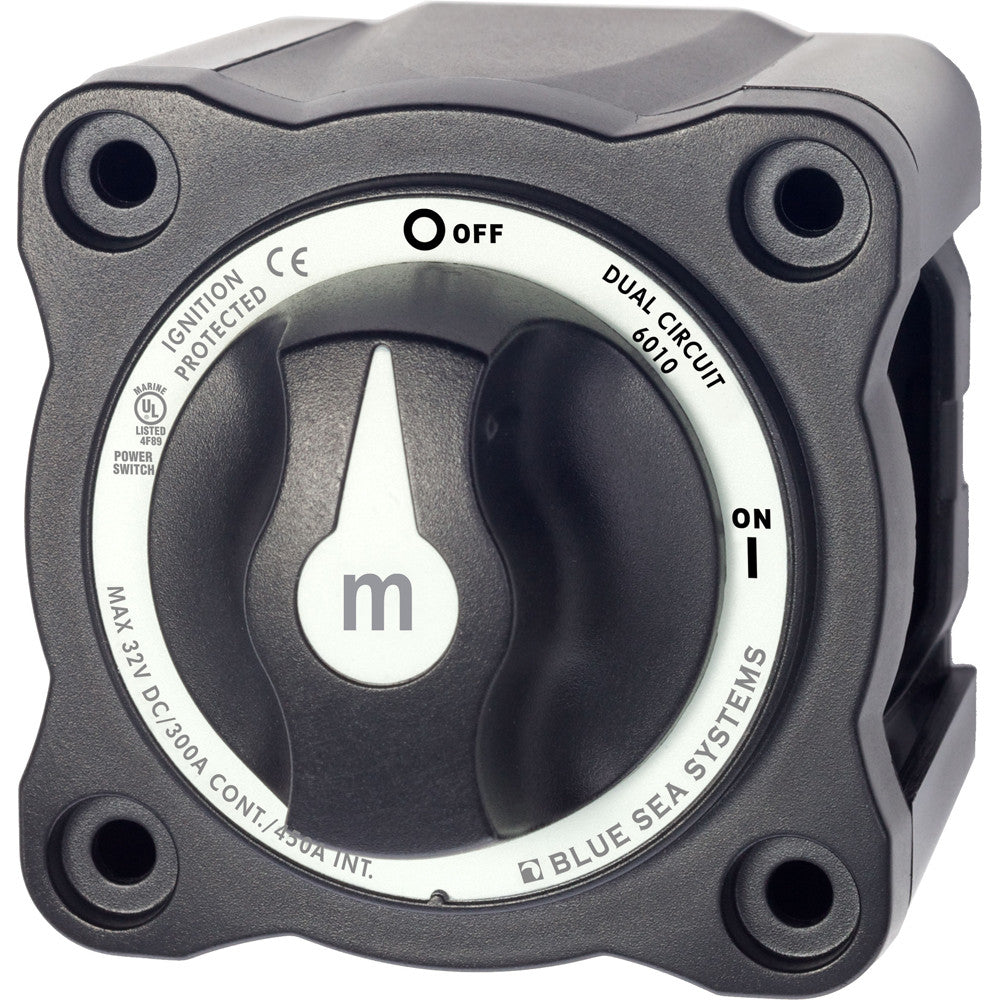

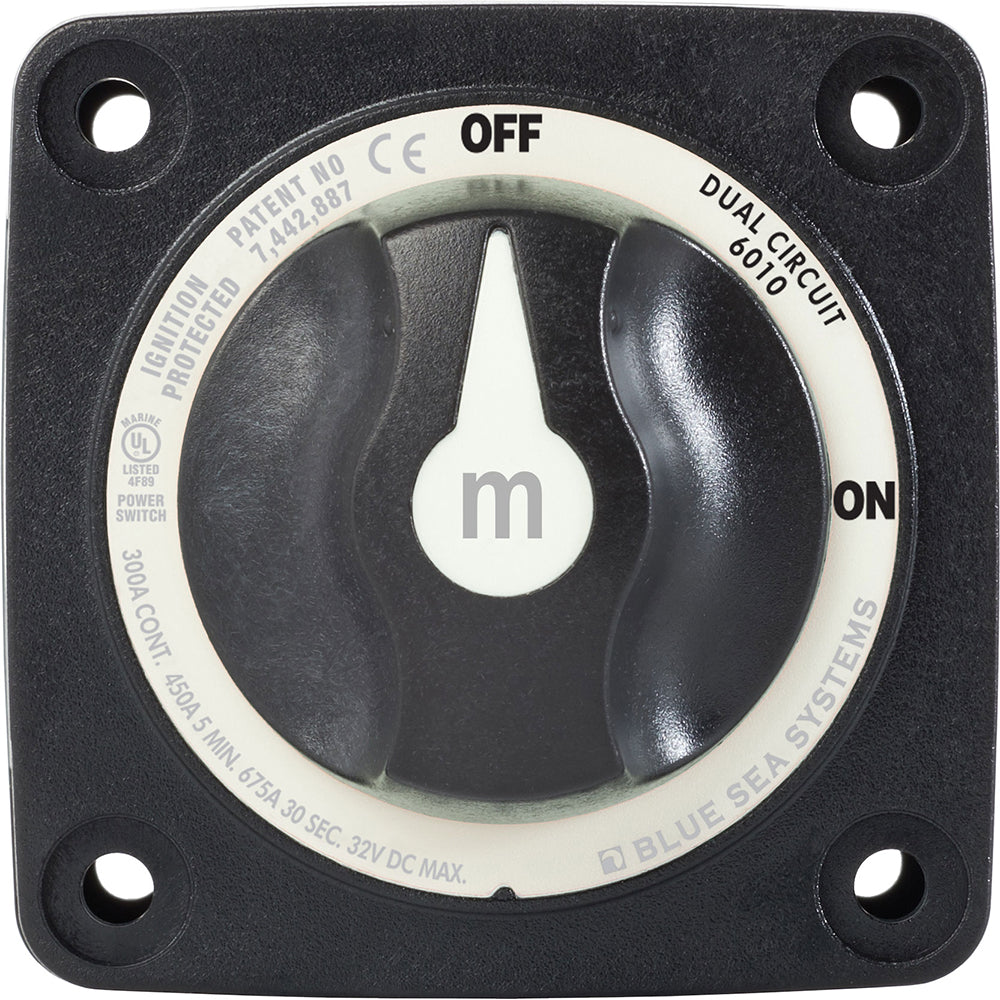

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color:Black
Switch Positions:2
Battery Combine:No
Alternator Field Disconnect: No
Maximum Voltage:32V DC
Continuous Rating :300A
Intermittent Rating :450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A

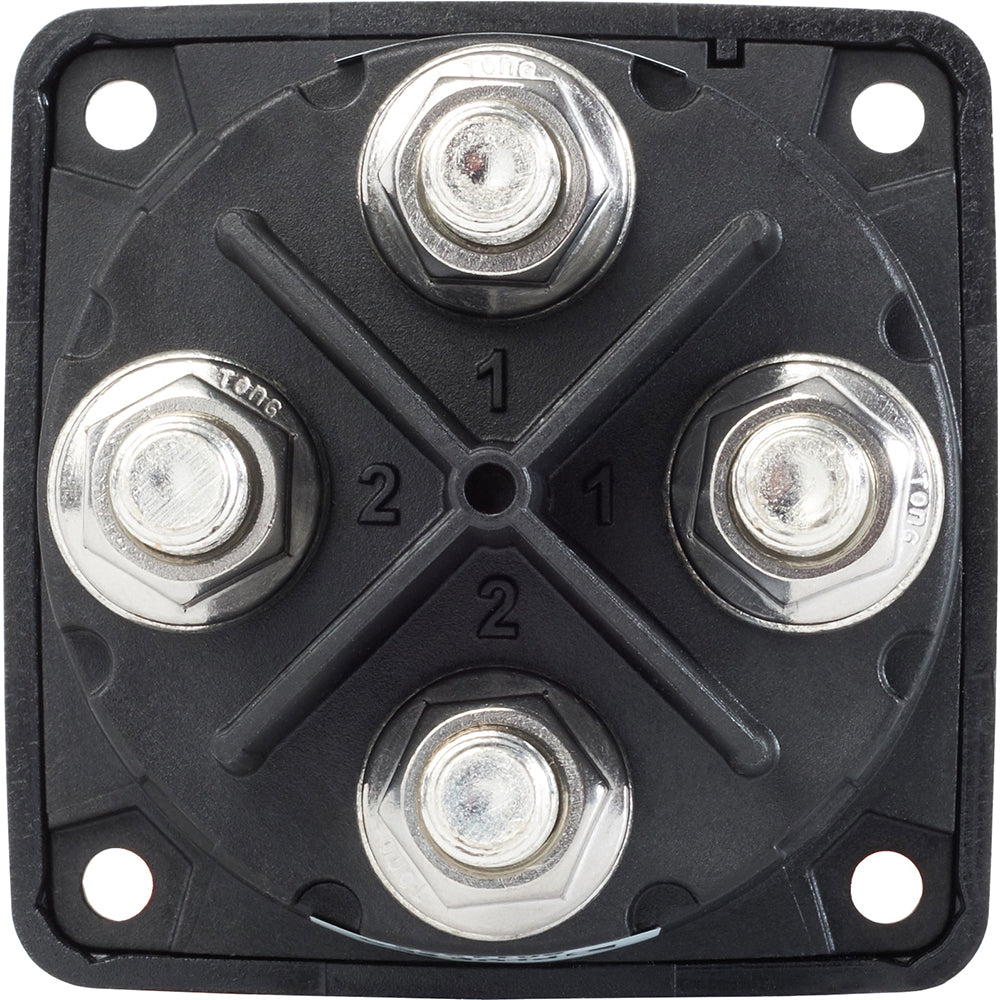

Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8"-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.80lb (0.36 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AFD: No
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
  • UPC: 632085601027

Owner's Manual (pdf)
