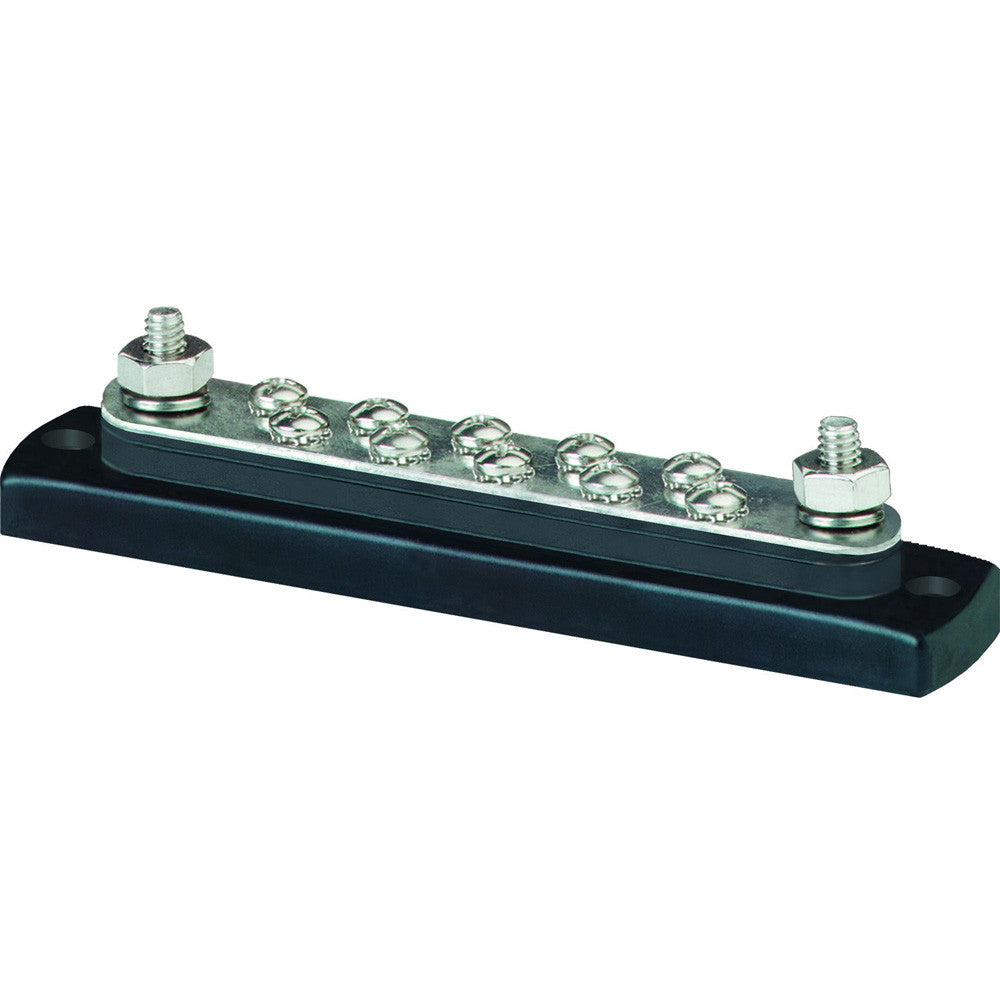

Blue Sea 2301 150 Ampere Common BusBar 10 x #8-32 Screw Terminal - Reel Draggin' Tackle

Blue Sea 2301 150 Ampere Common BusBar 10 x #8-32 Screw Terminal

  • $1499
  • Save $7.47


150 Ampere Common BusBar 10 x #8-32 Screw Terminal

PN:   2301

  • Stud design provides direct terminal to bus contact for low resistant connection
  • Stainless steel studs and screws allow high torquing for excellent electrical contact
  • Tin-plated copper bus for maximum conductivity and resistance to corrosion
  • UL 94-VO rated (self extinguishing) base material resists high heat
  • Raised bus provides easy access to multiple wires on a single screw
  • UL 94-VO rated base material resists high heat
  • Captive star type lock washers for anti-rotation and eliminate handling of small, easily dropped parts


Continuous Amperage 130 Amperes AC
150 Amperes DC
Maximum Voltage Rating 300 Volts AC
48 Volts DC
Bus Material Tin-Plated Copper CDA 110/UNS11000
Base Material Glass Reinforced Polycarbonate
Cover material Polycarbonate
Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws Stainless Steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight 0.28Lb
