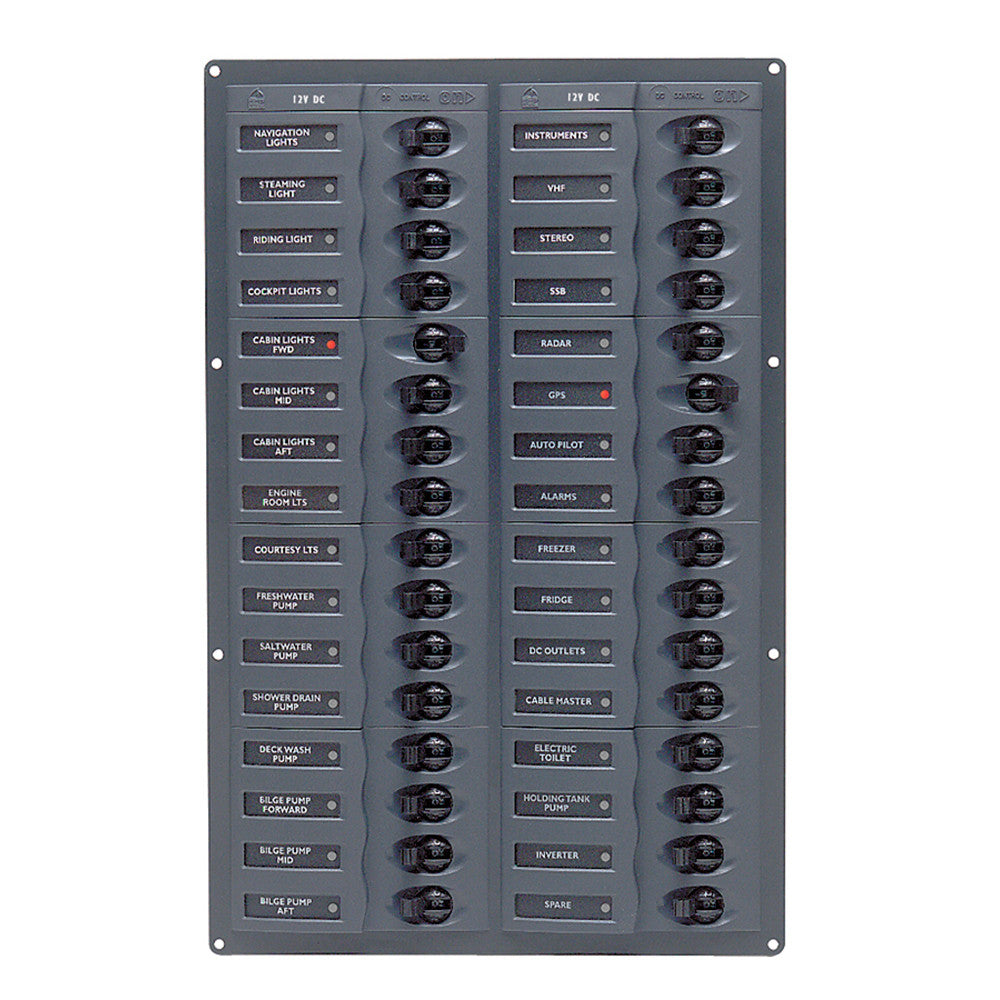

BEP DC Panel - 32-Way - No Meter - Vertical - Reel Draggin' Tackle

BEP DC Panel - 32-Way - No Meter - Vertical

  • $93799
  • Save $463


DC Panel - 32-Way - No Meter - Vertical

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers

Features

  • Marine Grade powder coated aluminium
  • Airpax circuit breaker
  • Stylish Contour Design fascia
  • Green LED backlit labels
  • Red LED indicates systems on
  • Panels meet ABYC standards


Specifications

Total Positions: 32 Loads
Circuit Breakers: 7X 5A, 11X 10A, 11X 15A, 1X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 14.6" X 9.75" X 2.5"
Neg Bus: 24 Way

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: DC
  • Max Breaker Quantity: 32
  • Voltage: 12v
  • UPC: 870216011868

Owner's Manual (pdf)
