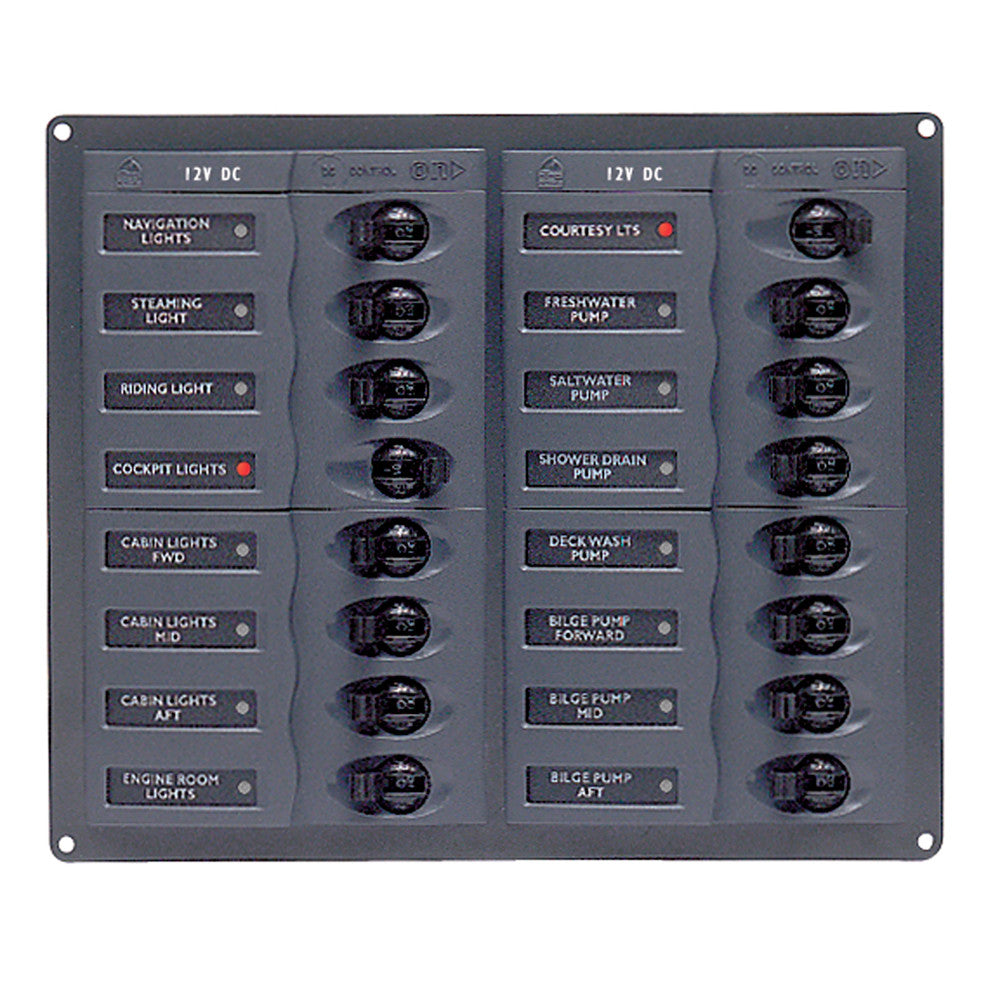

BEP DC Panel - 16-Way - No Meter
DC Panel - 16-Way - No Meter
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
- Marine Grade powder coated aluminium
- Airpax circuit breaker
- Stylish Contour Design fascia
- Green LED backlit labels
- Red LED indicates systems on
- Panels meet ABYC standards
Total Positions: 12 Loads
Circuit Breakers: 4X 5A, 5X 10A, 5X 15A, 1X 20A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 7.9" X 9.75" X 2.5"
Neg Bus: 12 Way
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Voltage: 12v
- AC/DC: DC
- Max Breaker Quantity: 16
- Box Dimensions: 4"H x 11"W x 12"L WT: 4.2 lbs
- UPC: 870216002156
Owner's Manual (pdf)
