BEP AC Circuit Breaker Panel w/Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical - Reel Draggin' Tackle

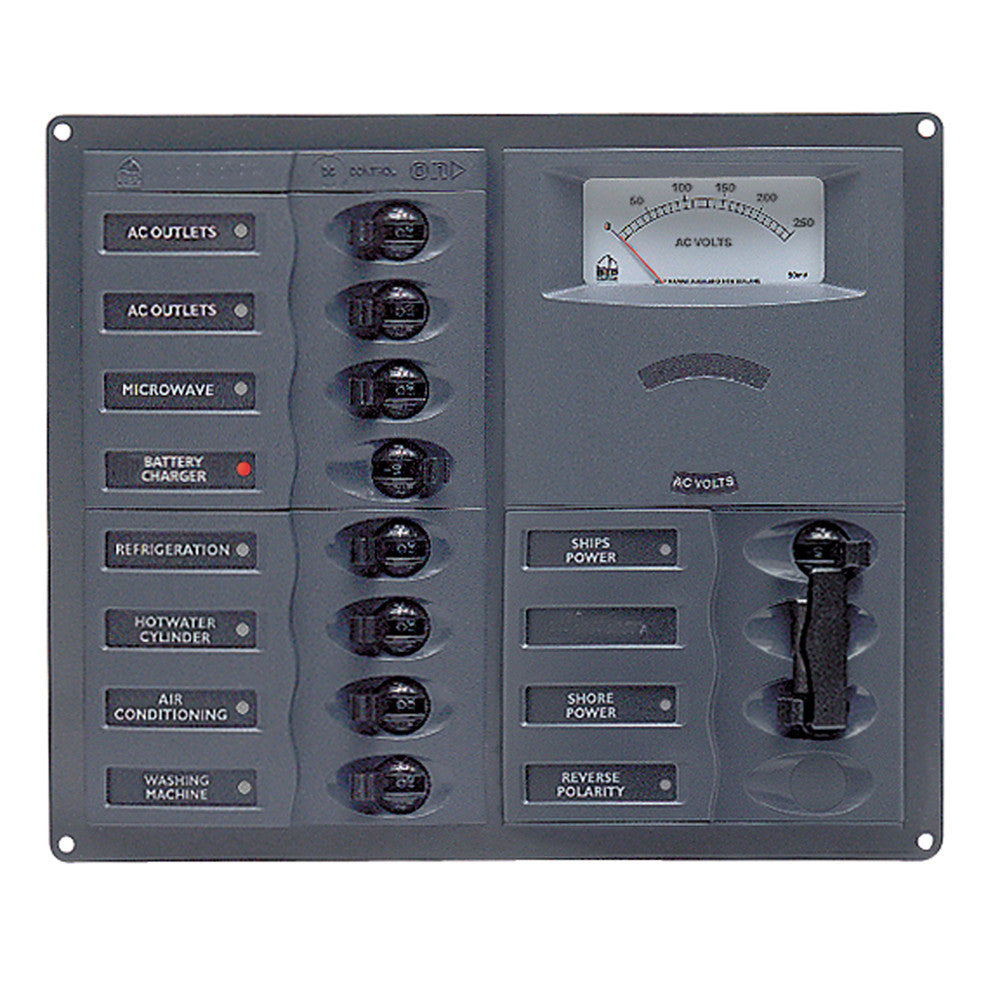

BEP AC Circuit Breaker Panel w/Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical

  • $51399
  • Save $229


AC Circuit Breaker Panel with Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical

Features

  • Supplied with tranducer
  • Reverse polarity indicator
  • Double pole mains input CBs with side lockout
  • Analog meter
  • LED wired to indicate live panel with mains breaker either on or off
  • AC source selector ensures no cross over between AC inputs (ship or
    shore power)


Specifications
  • Total Positions: 8 Loads + 2 Inputs
  • Circuit Breakers: 2x 10A, 3x 15A, 2x 20A, 1x 25A + 1x 30A, 1x 50A
  • Nominal Voltage: 110V AC
  • Maximum Amperage: 50A
  • Dimensions: 7.9" X 9.75" X 2.5"
  • Neg Bus: IS-6MM-2

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 8+2
  • Box Dimensions: 5"H x 10"W x 12"L WT: 4 lbs
  • UPC: 843687004486
