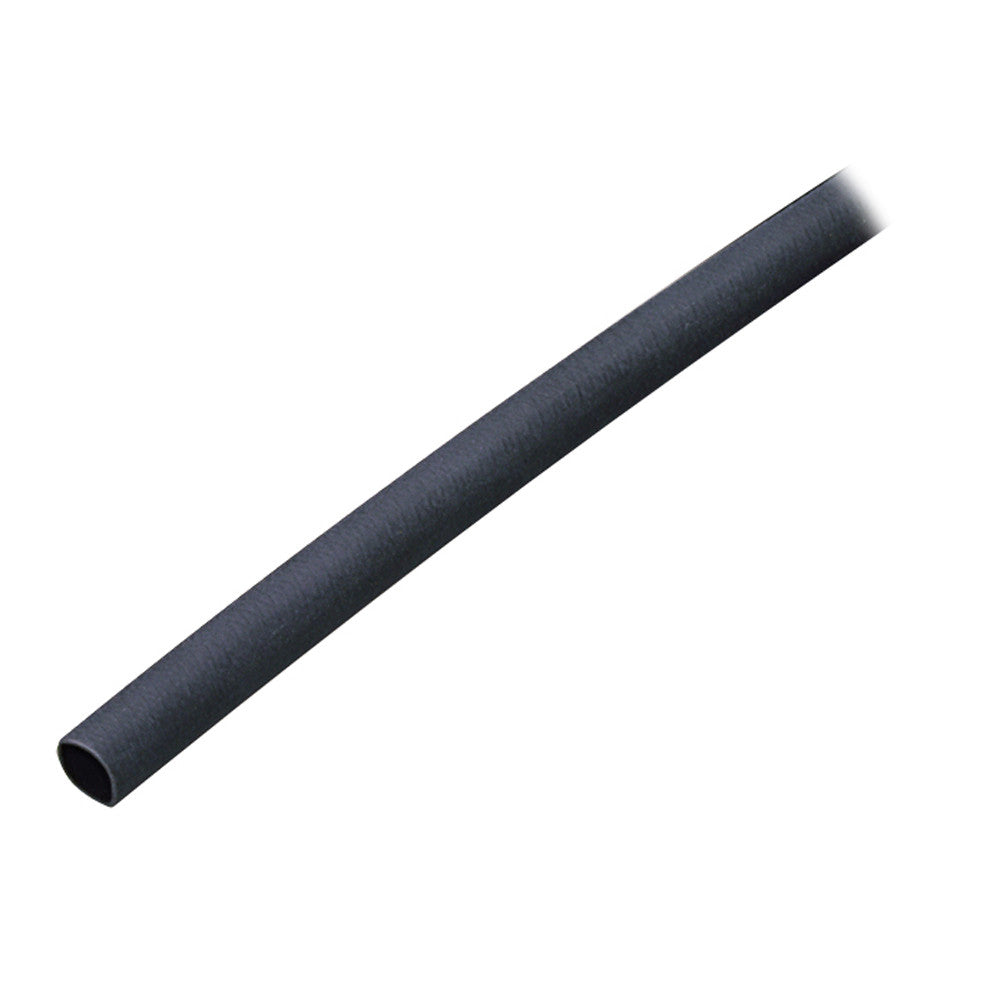

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 48" - 1-Pack - Black

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 48" - 1-Pack - Black

  • $799
  • Save $2


Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 48" - 1-Pack - Black

Package of 1 Black 48"(122cm) long sections with a 3/16"(4.8mm) diameter that shrinks to 1/16"(1.6mm)

Wire Range: 20-12 AWG

Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and
    will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water,
    oil, acids, and sunlight as well as providing strain relief
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257°F / 125°C
  • Operating temperature range of -40°C to 110°C
  • UL 224

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Type: Heat Shrink
  • Box Dimensions: 1"H x 1"W x 48"L WT: 0.1 lbs
  • UPC: 091887808605
