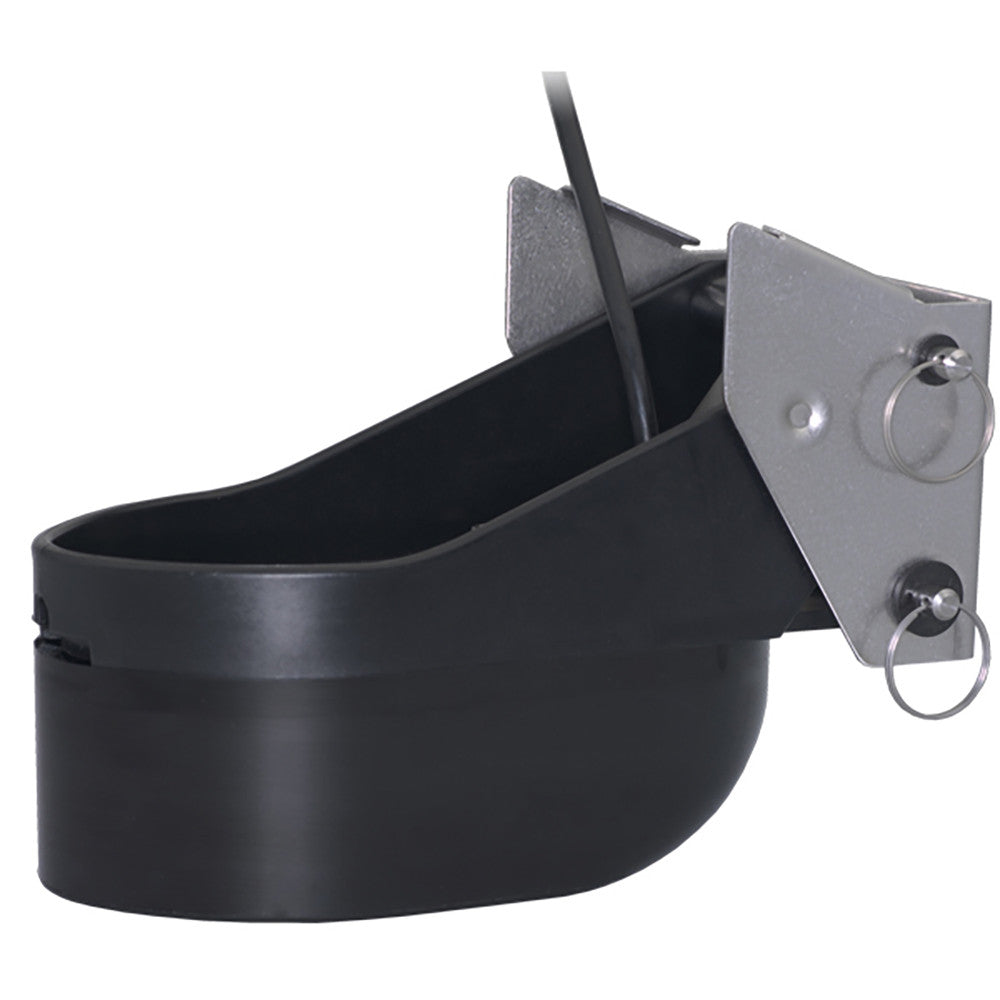

Airmar TM260 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin

Airmar TM260 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin

Regular price $1,117.99 USD
Regular price $1,304.35 USD Sale price $1,117.99 USD
Sale Sold out

TM260 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel's transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today's fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260's rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features:

  • Top-of-the-line narrow-beam transom-mount
  • Designed for bottom fishing
  • Wide 19° beam at 50 kHz
  • Narrow 6° beam at 200 kHz
  • Interfaces to any 600W or 1 kW sounder
  • Depth and fast-response water-temperature sensor
  • Kick-up assembly locks in the "up" position and will not damage the transom
  • Accommodates transom angles between 3° and 21°
  • Urethane housing
  • Boat Size: Up to 12M (40')

Specifications:

  • Weight: 4 kg (8.9 lb)
  • Hull Deadrise: Up to 28°
  • Acoustic Window: Urethane

Specifications:

  • Temperature: Yes
  • Mounting Style: Transom
  • Pins: 7
  • Box Dimensions: 8"H x 10"W x 11"L WT: 9.35 lbs

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
