Airmar B164 1kW 0° Thru-Hull Transducer for Simrad w/Blue Connector
B164 1kW 0° Thru-Hull Transducer with Blue Connector

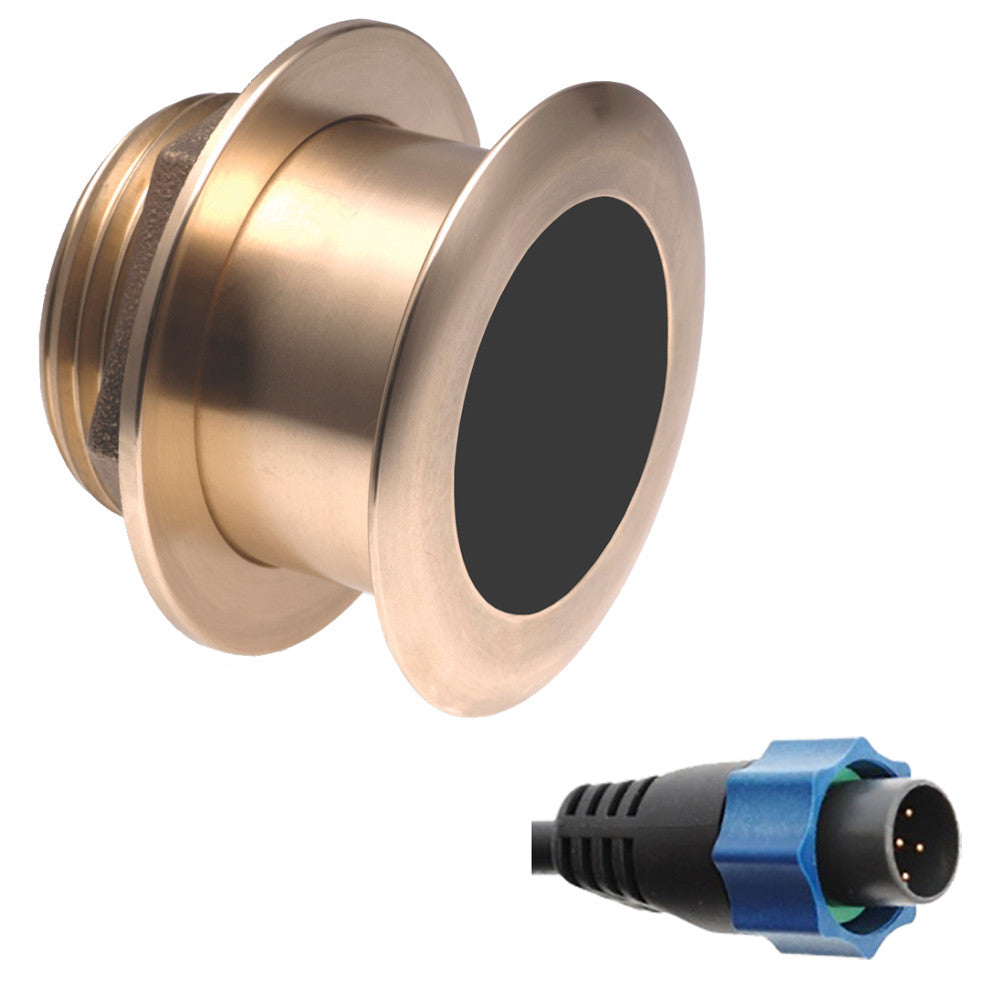

The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.
The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.
- Power output 1000W
- 3.875" hole size (98mm)
- Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz
- Maximum depth 1200-1800 ft @ 50kHz
- Maximum depth 500-800 ft @ 200kHz
- Mounting Style: Thru-Hull
- Box Dimensions: 10"H x 8"W x 12"L WT: 10.6 lbs
