The Spray Box

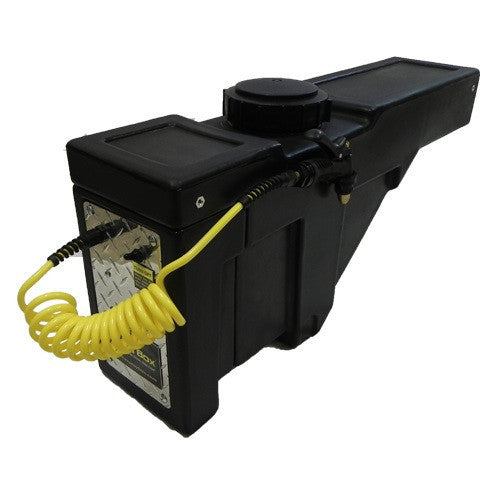

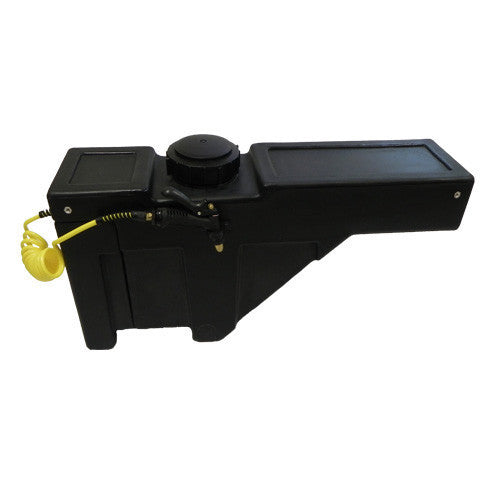

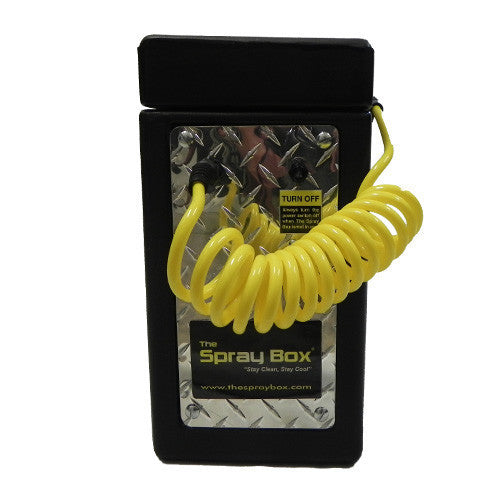

The Spray Box is a self-contained, freshwater wash-down system that permanently mounts in the bed of a pick-up truck. It was originally designed as a tool to rinse corrosive saltwater off of a boat trailer, at the boat landing, immediately after launching a boat. Today The Spray Box has numerous uses in both recreational and commercial markets.
Roto-mold housing – The Spray Box uses the same manufacturing process 'Yeti Coolers' uses to produce their cooler. It's roto-molded housing is virtually indestructible!
Universal Mounting- The Spray Box can be mounted on both the driver or passenger side.Driver’s side is the recommended location.
10 Gallon Water Capacity – Additional water can be added by connecting a secondary tank to the drain/expansion port.
Drain/Expansion Ports – Located on both the right and left side of the box.
Shuflo 8000 Series Diaphragm Pump – 100 PSI, commercial grade agriculture pump.
12 volt/DC Powered - The Spray Box connects directly to the pick-up trucks 12v battery.
Flow Rate – 100 PSI at ½ gallons per minute. 10-gallon water reservoir provides 20 minutes of continuous spray. *Actual flow rate may vary, based on spray nozzle setting.
Freelin-Wade, Flexcoil Coil Hose – Constructed out of Polyethylene material. Superior environmental stress crack resistance. Excellent for water use.
Spray Nozzle - Spray nozzle is commercial grade. Custom spray tip allows it to work with the high pressure/low volume diaphragm pump.

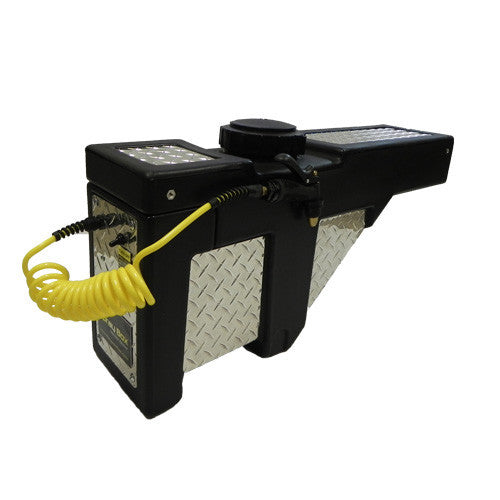

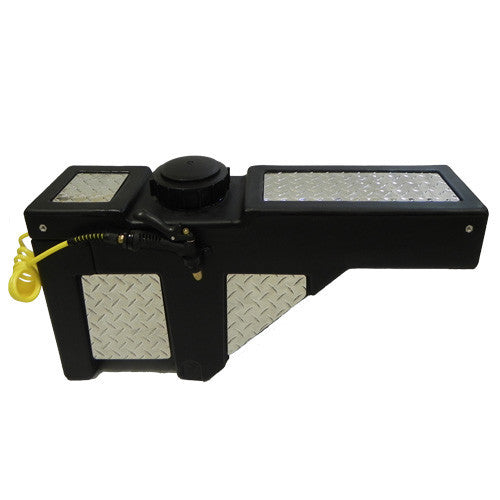

Deluxe Kit Includes – Deluxe diamond plate side/top panels, wiring harness, zip ties, inline fuse, mounting brackets, hardware and, installation instructions.
*The Spray Box fits all Full-sized and most mid-size pick-up trucks. It is recommended that you measure before you buy. Check out The Spray Box’s outside dimensions in the image to the left.
*The Spray Box may not be compatible with some bed covers and toppers
