Quick BTQ 140-40 DC Bow Thruster - 12V, 40kgf, 2.2kW

BTQ 140-40 DC Bow Thruster - 12V, 40kgf, 2.2kW

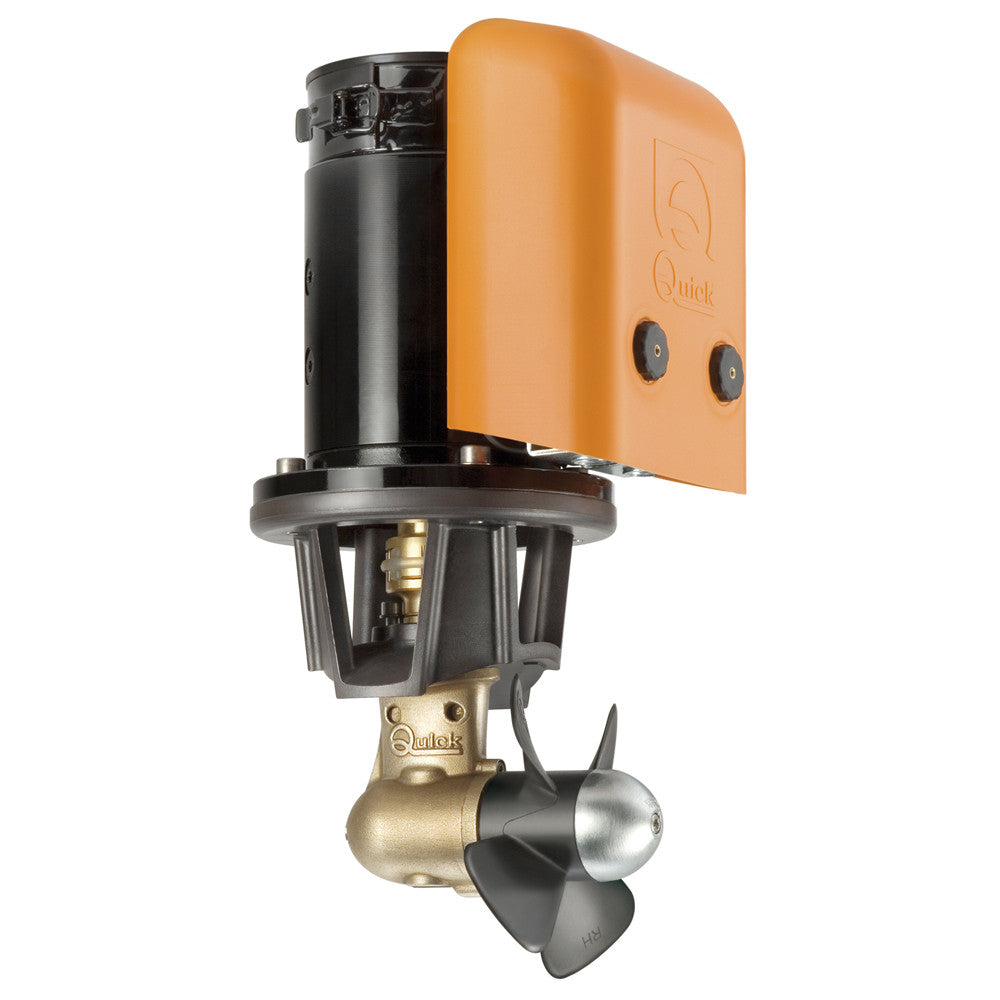

The Quick BTQ 140 is a single propeller bow thruster composed of a sturdy composite material. Some additional features of this unit are the solenoid is protected by a sturdy composite material, the gearbox is composed of bronze, the zinc anode is independent from the gearbox which allows an easy replacement and it is also equipped with an elastic coupling. This unit is sold complete with the bow thruster and users manual.

Specs:

• Propulsion System: Single propeller

• Tunnel Diameter: 5 33/64"

• Motor Power: 2.2 kW

• Voltage: 12V

• Section of wire: AWG 3/0

• Fuse: 300A

• Thrust: 40kgf (88.2 lb)

• Weight: 26.4 lb

• Limit thickness values of the tubes: min 11/64" - max 1/4"

• Boat size: 23-29'

• 3 Year Warranty
