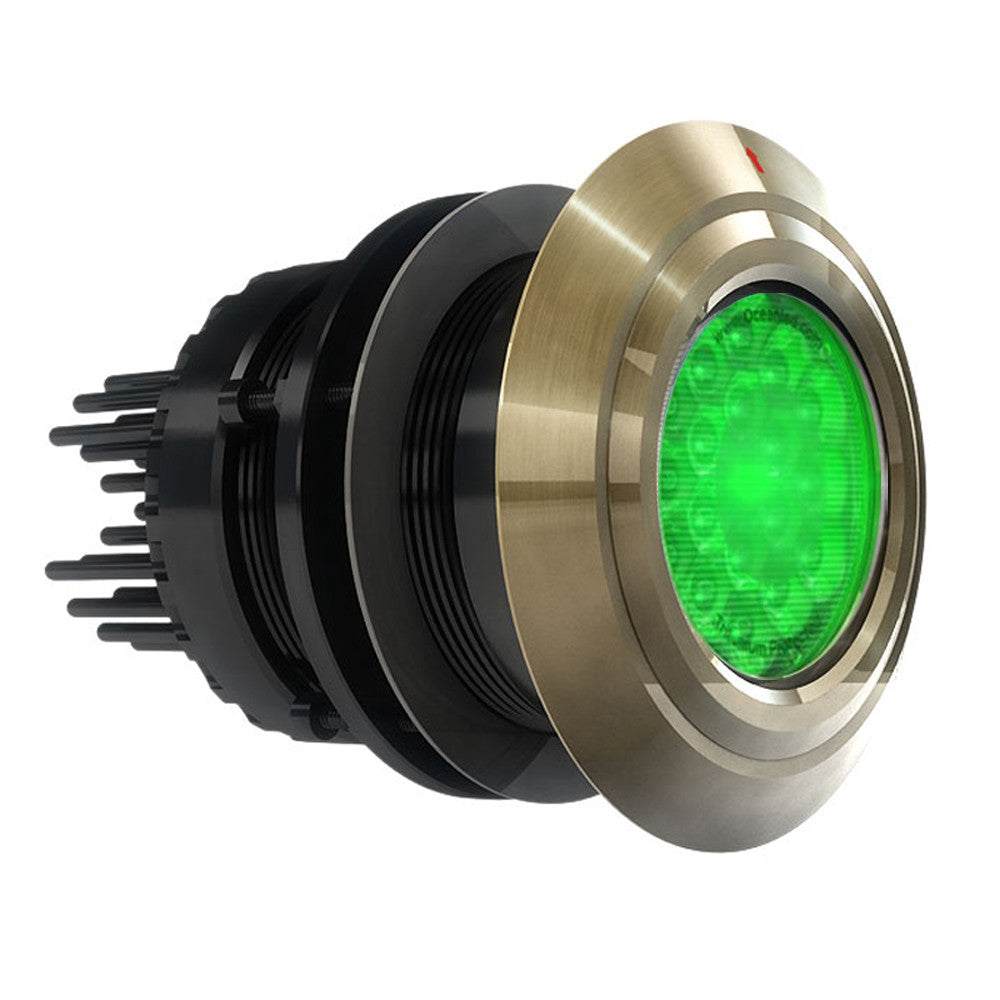

OceanLED 3010XFM Pro Series HD Gen2 LED Underwater Lighting - Sea Green

OceanLED 3010XFM Pro Series HD Gen2 LED Underwater Lighting - Sea Green

Regular price $2,099.99 USD
Regular price $2,799.00 USD Sale price $2,099.99 USD
Sale Sold out

Pro Series XFM HD Gen2

XFM models, or Xchangeable Flush Mounts, are just that - they're
exchangeable without hauling should servicing ever be needed. Their
exceptionally low profile head offers virtually unlimited hull mounting
options, including retrofitting into most existing underwater lighting hole
cut-outs, yielding immediate benefits of no startup power surge, low heat,
minimal maintenance, and improved light output.

At 10,000-fixture lumen brightness the 3010XFM HD Gen2 model is 43% brighter
than its predecessor by exploiting the next generation of High Definition
LEDs from Cree.

Suitable for all hull types over 65' (20m) using 4 or more lights with
spacing of 3-6' (1-1.8m) - for metal hulls, add the Delrin Isolation Sleeve
accessory. Deutsch plugand- play quick connectors make this light a quick

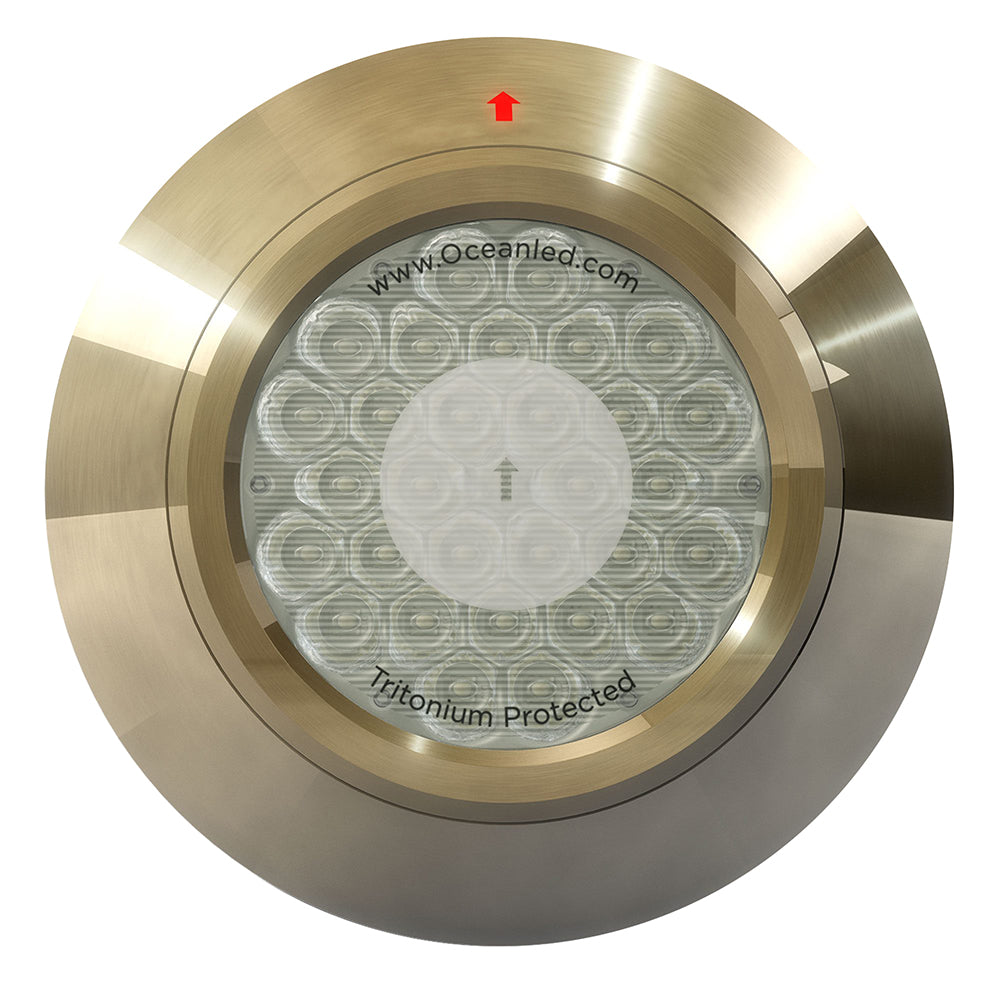

fit. Maintenance is easy; just wipe away marine growth from its scratch
resistant Tritonium glass lens. Three super bright LED color options.

For a light that's less bright choose 2010XFM HD Gen2. For a light with a
smaller hole cut-out better suited for transom mount applications choose
3010TH. For a light with color-change capabilities choose from our Colours
models.

  • 12/24vDC (AC Upgrade Available)
  • 40,000+ Hour Life
  • Tritonium™ Marine Growth Protection
  • Plug & Play
  • Aluminium Bronze AB2
  • Factory Sealed
  • Reverse Polarity Protected


Mounting Recommendations:
Boat Size:up to 65' (20M)
Transom Spacing:3-6' (1.0-1.8M)
Transom Quantity: 4+
Hull Spacing:4-8' (1.2-2.4M)
Installation Depth (to top of fixture): 10-12" (250-300mm)

Technical
Light Output Equivalent To: 2x100W HID Metal Halides
Fixture Lumens (total light output from a finished fixture): 10,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 10A / 24VDC 5A
Current/Amp Draw (AC): 110VAC 50/60HZ 1.3A / 240VAC 50/60HZ 0.6A

Specifications:

  • Mounting Style: Thru-Hull
  • Color: Green
  • Material: AB2 Aluminum Bronze
  • Box Dimensions: 9"H x 11"W x 12"L WT: 16.4 lbs
  • UPC: 5051803005629
