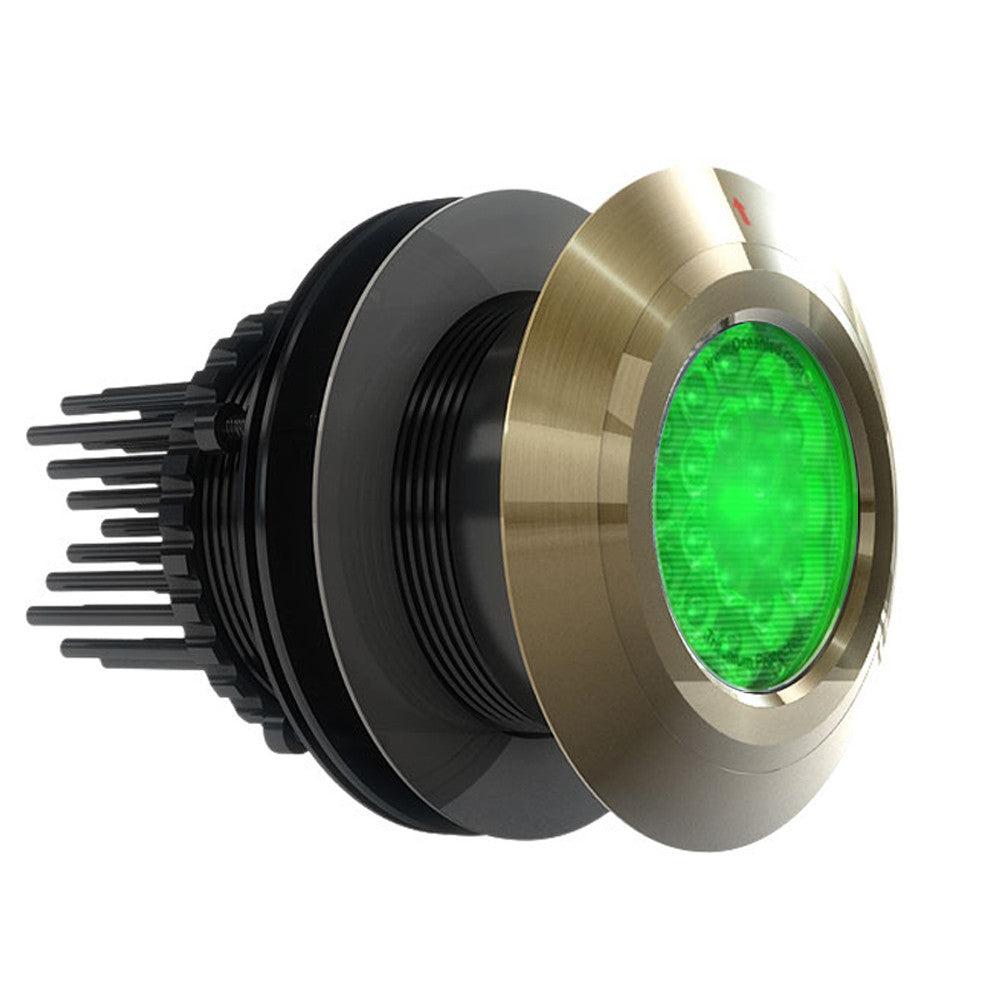

OceanLED 2010XFM Pro Series HD Gen2 LED Underwater Lighting - Sea Green

OceanLED 2010XFM Pro Series HD Gen2 LED Underwater Lighting - Sea Green

Regular price $1,799.99 USD
Regular price $2,399.00 USD Sale price $1,799.99 USD
Sale Sold out

Pro Series XFM HD Gen2

XFM models, or Xchangeable Flush Mounts, are just that - they're
exchangeable without hauling should servicing ever be needed. Their
exceptionally low profile head offers virtually unlimited hull mounting
options, including retrofitting into most existing underwater lighting hole
cut-outs, yielding immediate benefits of no startup power surge, low heat,
minimal maintenance, and improved light output.

At 7,000-fixture lumen brightness the 2010XFM HD Gen2 model is 67%
brighter than its predecessor by exploiting the next generation of High
Definition LEDs from Cree.

Suitable for all hull types up to and over 65' (20m) using 2-6 lights with
spacing of 3-5' (1-1.5m) - for metal hulls, add the Delrin Isolation Sleeve
accessory. Deutsch plug-and-play quick connectors make this light a quick
fit. Maintenance is easy; just wipe away marine growth from its scratch
resistant Tritonium glass lens. Three super bright LED color options.

For an even brighter light choose 3010XFM HD Gen2. For a light with a
smaller hole cut-out better suited for transom mount applications choose
2010TH. For a light with color-change capabilities choose from our Colours
models.

  • 12/24vDC (AC Upgrade Available)
  • 40,000+ Hour Life
  • Tritonium™ Marine Growth Protection
  • Plug & Play
  • Aluminium Bronze AB2
  • Factory Sealed
  • Reverse Polarity Protected


Mounting Recommendations:
Boat Size:up to 65' (20M)
Transom Spacing:3-5' (1.0-1.5M)
Transom Quantity: 2-6
Hull Spacing:3-6' (1.0-1.8M)
Installation Depth (to top of fixture): 8-10" (200-250mm)

Technical
Light Output Equivalent To: 250W HID Metal Halides
Fixture Lumens (total light output from a finished fixture): 7,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 5.8A / 24VDC 2.9A
Current/Amp Draw (AC): 110VAC 50/60HZ 0.76 / 240VAC 50/60HZ 0.35A

Specifications:

  • Mounting Style: Thru-Hull
  • Color: Green
  • Material: AB2 Aluminum Bronze
  • UPC: 5051803005582

Quick Guide (pdf)
Brochure (pdf)
