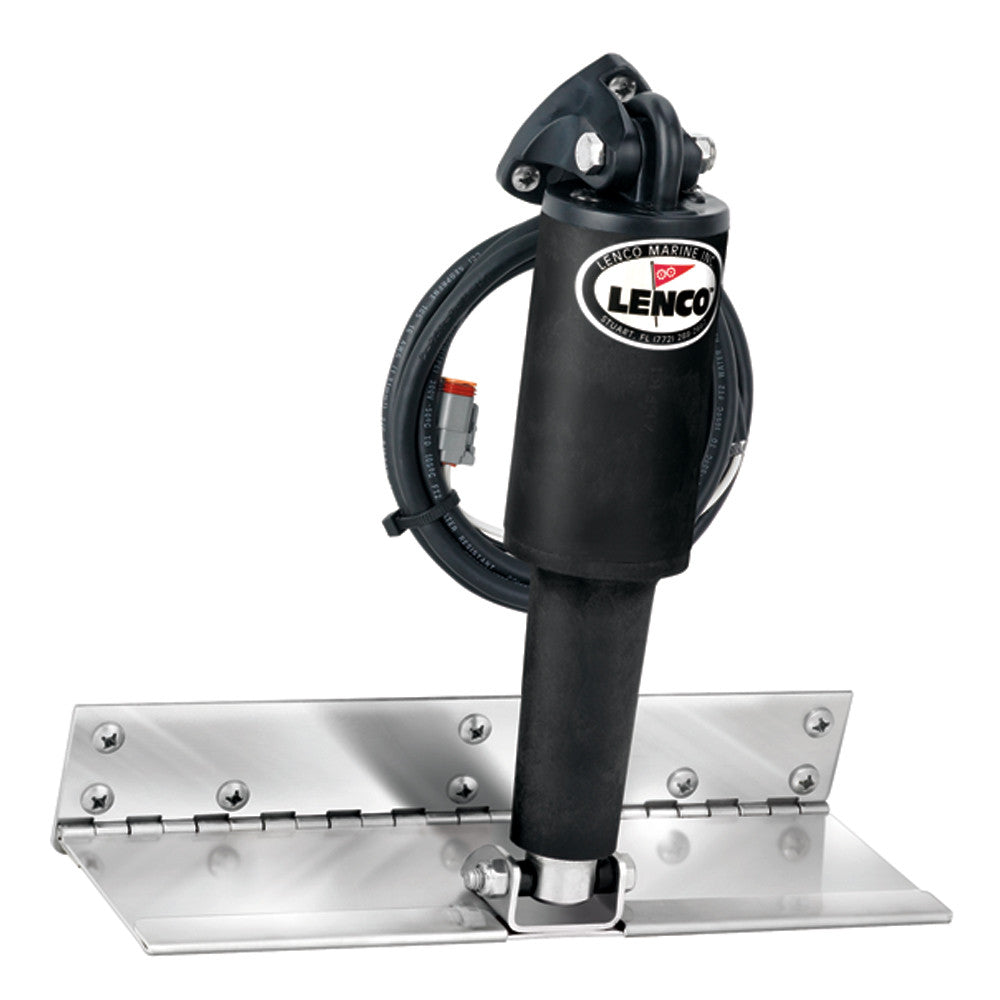

Lenco 4" x 12" Limited Space Trim Tab Kit w/o Switch Kit 12V - Electro-Polished - Short Actuator

4" x 12" Limited Space Trim Tab Kit w/o Switch Kit -12V - Electro-Polished - Short Actuator

Lenco Electric Limited Space Trim Tab Kits are ideal for boats with a swim platform and/or ladder. They can be fitted to transoms that have a limited mounting area. Blades are 12 gauge - 304 SS with front of blade folded to provide a smooth trailing edge and 1/8" diameter hinge pin. Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.

Kit Contents:

• 2 each of 12-gauge 304 stainless steel trim tab blades
• 2 each of #15057-001 XD actuator with 6' lead and Deutsch plugs
• 2 each of #30133-103  20' actuator extension wiring harnesses
• 2 each of #15085-001 (116) upper mounting bracket with gland seal
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 14' to 25'
• Length of Tab: 4"
• Width of Tab: 12"
• Minimum Transom Height: 13"
• Blades: 12 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 7"H x 7"W x 13"L WT: 13.2 lbs
• UPC: 874847005739
