Lenco 25" x 14" High Performance Trim Tab Kit w/o Switch Kit 12V
25" x 14" High Performance Trim Tab Kit w/o Switch Kit-12V - Dual Actuator

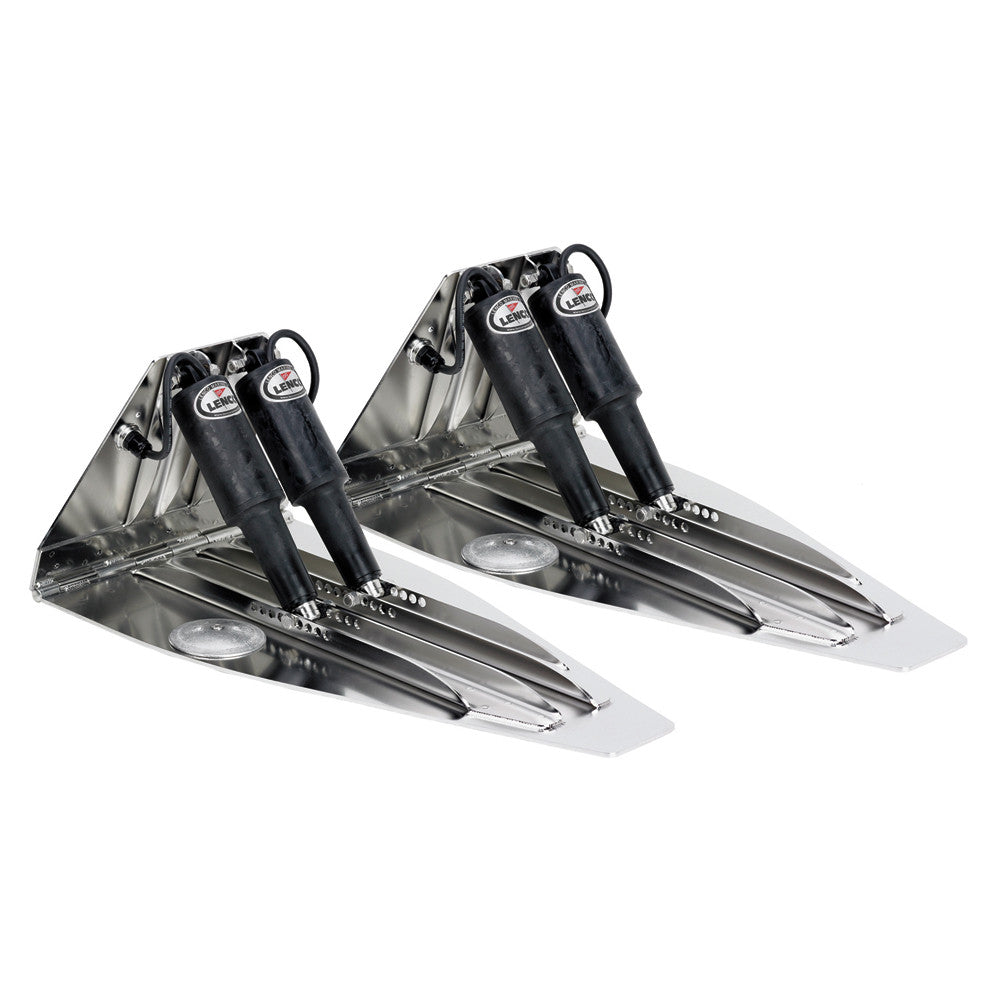

Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.
Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.
- 2 each of stainless steel trim tab planes
- 4 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs
- Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.
The following to be supplied by customer:
- Boat mounting hardware supplied by customer
- Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
required. To order the lengths of your choice see the Lenco Accessories Section.
- Suggested Boat Length: 28' to 46'
- Length of Tab: 25"
- Width of Tab: 14"
- Minimum Transom Height: 10.5"
- Blades: 7 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Switch Required: 15071-001
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Actuator Type: Electro-Mechanical
- Construction: Stainless Steel
- Box Dimensions: 18"H x 20"W x 36"L WT: 77 lbs
- UPC: 874847004732
