Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/o     Switch Kit 12V - Reel Draggin' Tackle

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch Kit 12V

  • $95899
  • Save $498


16" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch Kit -12V

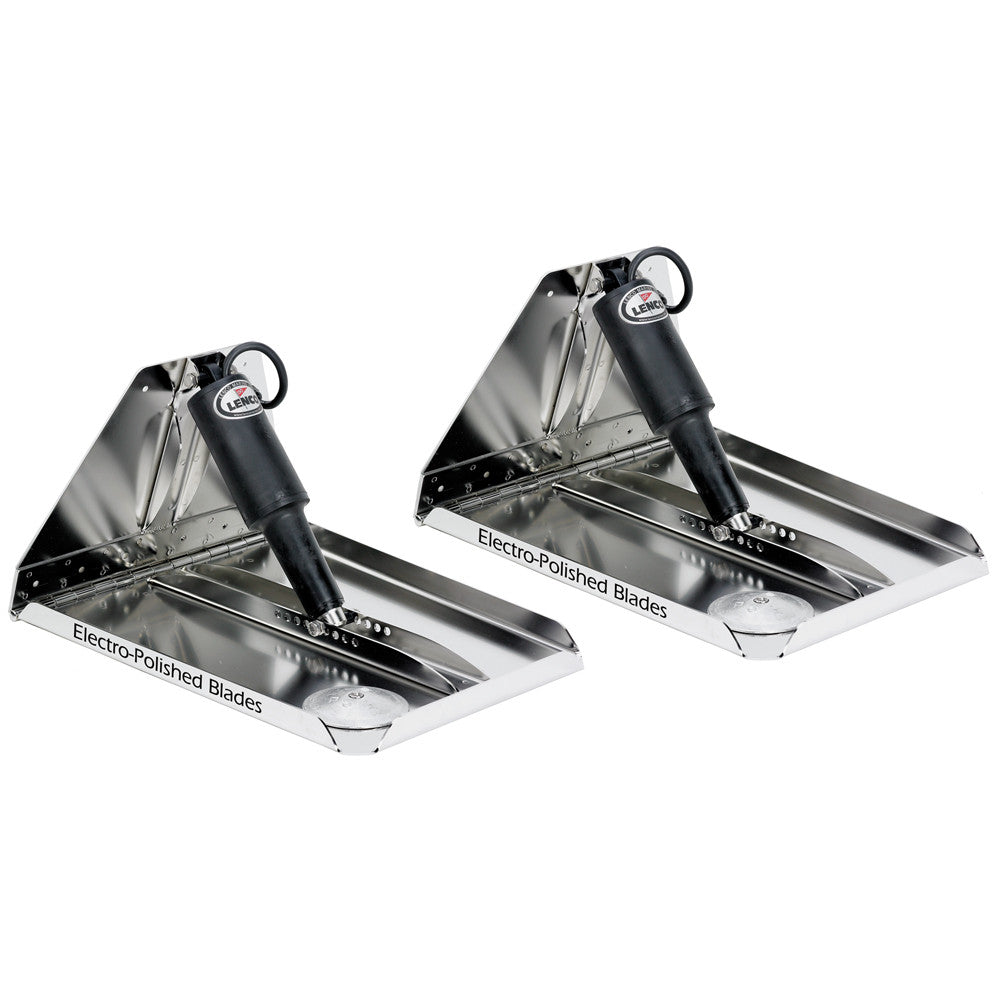

Lenco Electric Heavy Duty Polished Blade Trim Tab Kits are supplied with electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges, 85 degree inside taper and 1/4" diameter hinge pin. Kits equipped with Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes. .

Kit Contents:

  • 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
  • 2 each of #15055-001 XD extreme duty actuators with 6' lead and Deutsch plugs
  • 2 each of #30133-103  20' actuator extension wiring harnesses
  • 1 each of the Lenco owner’s / installation manual
  • Boat-mounting hardware supplied by customer

Specifications:

  • Suggested Boat Length: 20' to 38'
  • Length of Tab: 16"
  • Width of Tab: 12"
  • Minimum Transom Height: 10.5"
  • Blades: 12 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Switch Required: 15069-001 or 15070-001
  • Actuators: 12-volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Box Dimensions: 14"H x 16"W x 23"L WT: 38 lbs
  • UPC: 874847004640

Brochure (pdf)
