Lenco 12" x 9" Electro-Polished Edge Mount Trim Tab Kit - Reel Draggin' Tackle

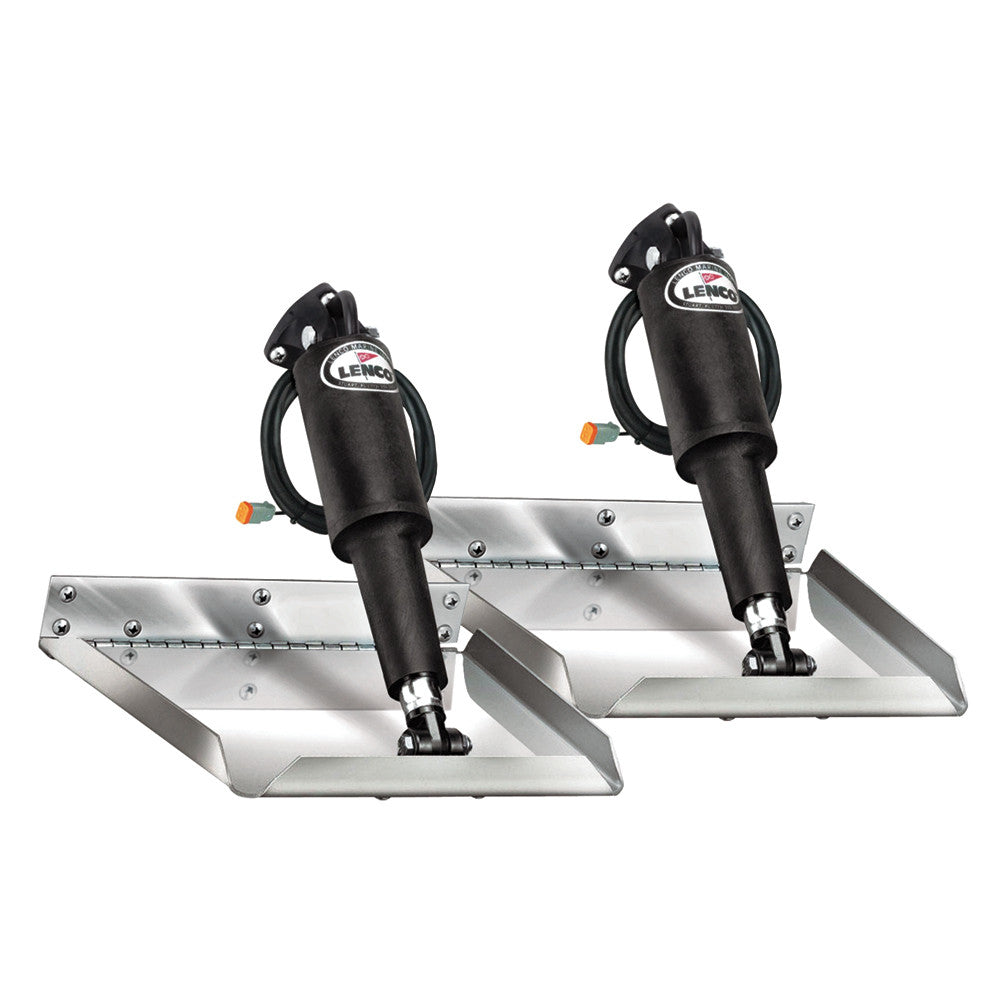

Lenco 12" x 9" Electro-Polished Edge Mount Trim Tab Kit

  • $56499
  • Save $254


12" x 9" Electro-Polished Edge Mount Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.

Kits include:

  • (2) 12-gauge stainless steel Electro-Polished blades
  • (2) 15054-001 actuator with 6' leads and Deutsch connectors
  • (2) 30133-103 20' actuator extension wiring harnesses
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner's/installation manual
  • Stainless steel mounting hardware


Specifications:
  • Boat Length:14' - 18'
  • L" x W":12" x 9"
  • Hinge Height:2"
  • Minimun Transom Height:11"

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Construction: Stainless Steel
  • Box Dimensions: 5"H x 13"W x 14"L WT: 17 lbs
  • UPC: 874847006798
