Jabsco Light Duty Reversible Diesel Transfer Pump - Reel Draggin' Tackle

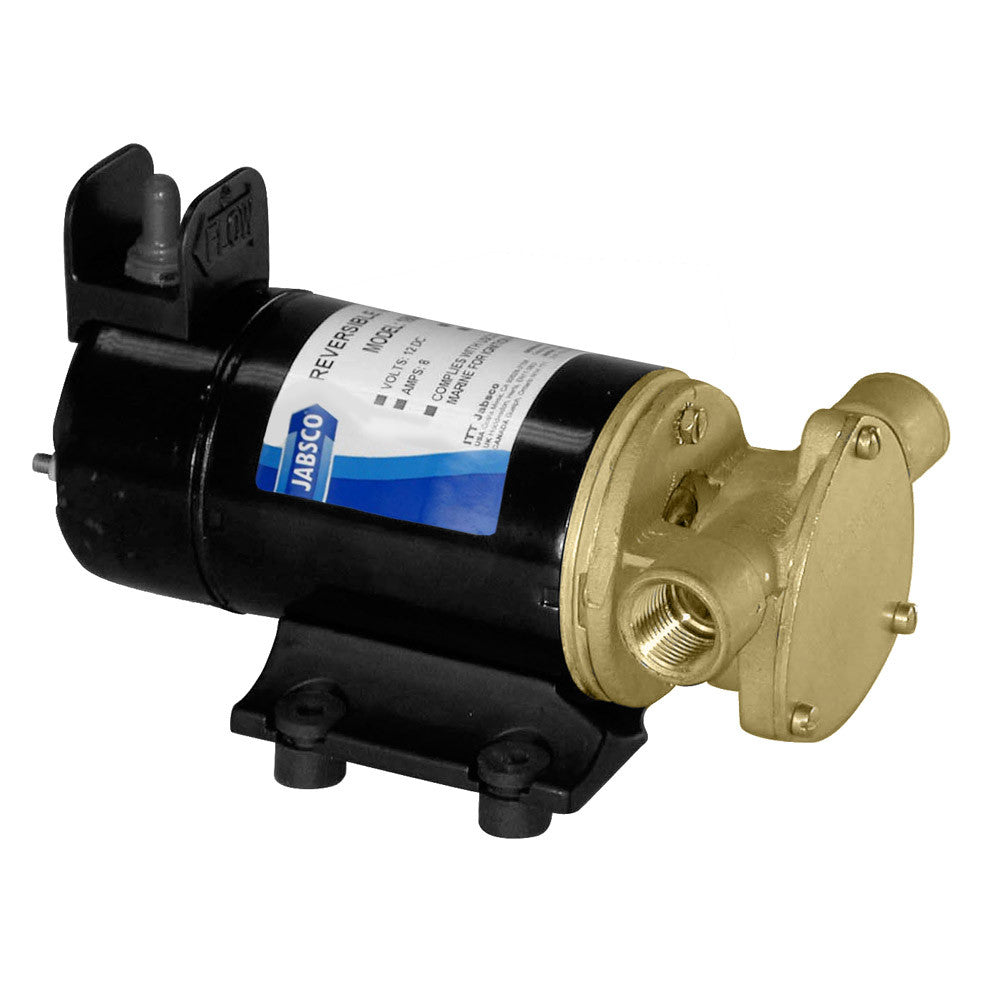

Jabsco Light Duty Reversible Diesel Transfer Pump

  • $32299
  • Save $114


Reversible Vane Pump
Diesel Transfer Pump

Flow rate: 7.9 USgallons/min)
Self-priming from dry up to 3ft

The Jabsco Reversible Rotary Vane Pump is ideal for transferring diesel fuel. It is self-priming to about three feet and can pump against a discharge head up to twenty feet. With its integral on-off reversing switch, it is ideal for moving fuel between port and starboard fuel tanks.

Features:

  • The pump head may be mounted at 90°
  • increments on the motor to allow mounting as needed
  • Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)


Motor
Intermittant duty permanent magnet type with reversing switch

Port Type
1/2" NPT Female or 1" (25mm) Hose barb

WarningWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Gallons Per Minute: 7.9
  • Reversible: Yes
  • Volts: 12v
  • Box Dimensions: 5"H x 6"W x 9"L WT: 6.45 lbs
  • UPC: 671880534680

Owner's Manual (pdf)
