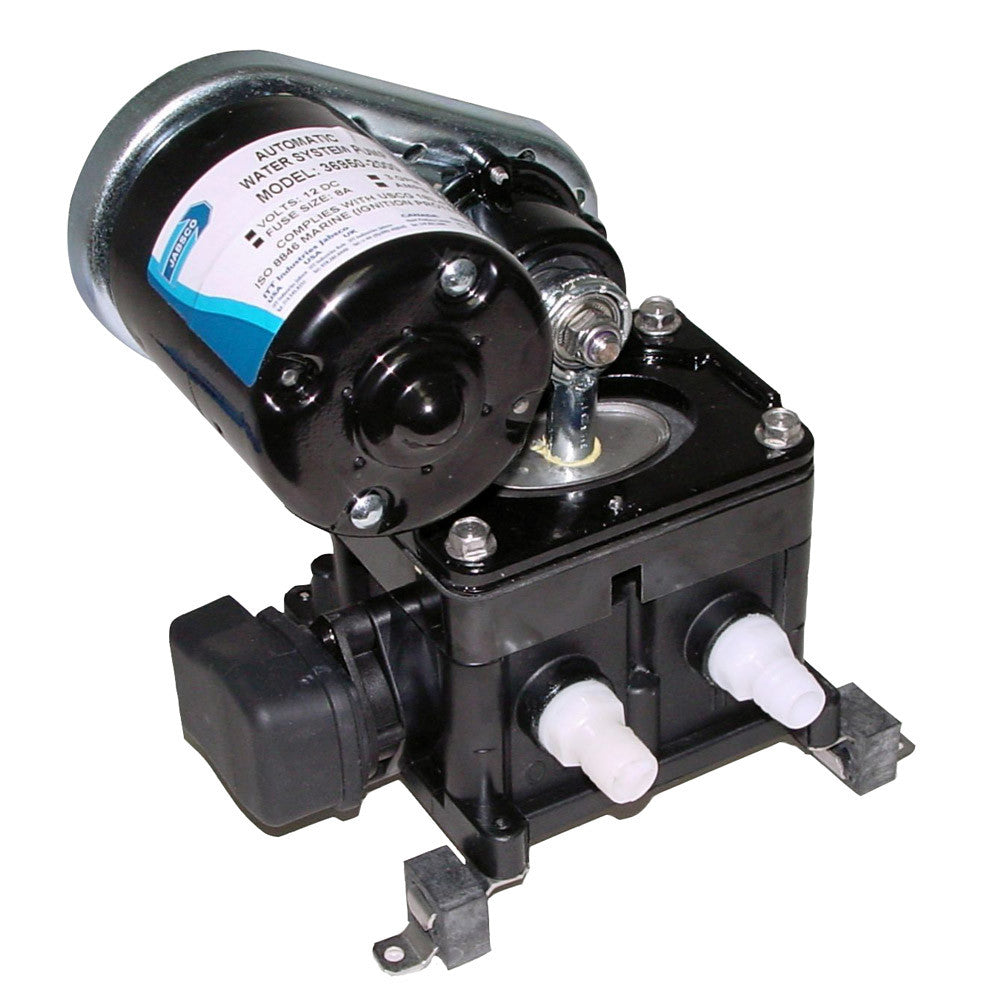

Jabsco 36950 Fresh Water Electric Water System Pump

Fresh Water Pump
Electic Water System Pump, Automatic, Multi-Outlet

Flow rate: Nominal 3 gallons/min at 1500 rpm
Self-priming from dry up to 4.9ft

Features:

• Diaphragm Design Allows Dry Running

• Built-in Discharge Check Valve

• Quiet Operation

• Built-in Hydraulic Pulsation Dampener

• Large Vibration Absorbing Pads

• Ports Available with Barb, Threads or Flare

• Meets USCG Regulation 183.410

• ISO 8846 MARINE for Ignition Protection

Jabsco automatic water system pumps are designed for self contained recreational vehicles and pleasure boats with multiple-outlet water systems. The systems are automatic -when a faucet is opened, the pump instantly begins operation to provide a constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Minute: 3 GPM
• Max PSI: 1.4-2.7
• Volts: 12v
• Box Dimensions: 8"H x 11"W x 12"L WT: 8.35 lbs
• UPC: 671880032162

Owner's Manual (pdf)
